Front Left CV Axle for 2010-2012 Ford Fusion & More - A1 CARDONE 66-2272

$145.99

Vehicles this part fits

    Part number: 66-2272
    UPC: 884548116610
    Condition: New
    Weight: 15.90 LBS
    Item Package Quantity: 1
    $145.99
    Adding to cart… The item has been added

    Have questions?

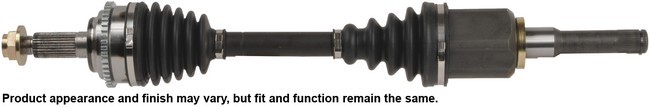

    CARDONE New CV Axle Assembly P/N:66-2272
    CARDONE New CV Axle Assembly P/N:66-2272
    $145.99
    $145.99

    A1 CARDONE 66-2272 front left CV axle for the 2010-2012 Ford Fusion and other vehicles carries drive torque from the transmission to the front left wheel. This new axle, also called a CV axle assembly, comes with its CV joints, neoprene boots and ABS tone ring.

    • Neoprene boots with additional bellows, when needed, to resist bellow stress and cracking, the leading cause of boot failure
    • Shaft individually verified for straightness for vibration-free performance at all speeds
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines for fit into the hub and transmission, and precision-rolled threads for the axle nut

    Quick facts

    • Part: A1 CARDONE 66-2272 CV axle
    • Also called: CV axle assembly
    • Fits: 2010-2012 Ford Fusion and other vehicles
    • Position: Front left
    • Material: Steel shaft with neoprene boots
    • Condition: New

    A clicking or snapping noise when you turn hard under power, a thump or vibration when you accelerate, or grease thrown around a boot can mean the axle is worn. Find the cause first: with the engine off, look at the boots for tears and at nearby parts for flung grease, because other parts can produce similar signs.

    Fits

    This CV axle replacement for the 2010-2012 Ford Fusion and the 2010-2011 Mercury Milan is built to O.E. form, fit and function. The car takes one axle on each side of the front; this listing is the front left, and the front right is ordered separately.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per application: 1
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 677.86 mm (26.688 in)
    • Spline quantity: 35 inboard, 28 outboard
    • Axle nut thread size: M22x1.5
    • Axle nut socket size: 32 mm (1.26 in)

    Build and materials

    • Condition: New
    • Shaft material: Steel
    • Boot material: Neoprene
    • Joints: CV joints included, inboard and outboard joints splined
    • ABS tone ring: included, toothed, 44 teeth
    • Axle nut: hex, included
    • Country of origin: China

    In the box

    One complete axle with a new axle retaining nut and an instruction sheet.

    Installation notes

    • Tighten the retaining nut with a torque wrench, never an impact wrench, to the manufacturer's specification.
    • Install new transaxle seals when replacing the axle to avoid leaks.
    • Remove and install one axle at a time, and never let an axle hang unsupported.
    • The instruction sheet in the box covers the steps.

    Interchange: AE5Z3A427B · AE5Z3A427E

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    AE5Z3A427B, AE5Z3A427E

    Frequently Asked Questions

    Does the A1 CARDONE 66-2272 CV axle fit the 2010-2012 Ford Fusion?

    Yes. A1 CARDONE 66-2272 fits the 2010-2012 Ford Fusion and the 2010-2011 Mercury Milan on the front left side. The front right side is a separate part.

    What comes with this front left CV axle besides the shaft?

    The listing is one complete axle with a new axle retaining nut and an instruction sheet. The CV joints and boots are already on the axle.

    Does the A1 CARDONE CV axle include the ABS tone ring?

    Yes. A1 CARDONE 66-2272 has a toothed ABS tone ring with 44 teeth.

    Why does my CV axle click when I cut the wheel and accelerate?

    A clicking or snapping noise when turning hard under power can mean a worn outer joint. A shop can confirm which axle is the cause.

    Can I use an impact wrench on the M22x1.5 axle retaining nut?

    No. Use a torque wrench and tighten the nut to the manufacturer's specification. The new nut comes with the axle.
