Front Right CV Axle for 1993-1995 Dodge Intrepid & More - A1 CARDONE 66-3044

$111.99

Vehicles this part fits

    Part number: 66-3044
    UPC: 082617632911
    Condition: New
    Weight: 17.00 LBS
    Item Package Quantity: 1
    $111.99
    Adding to cart… The item has been added

    Have questions?

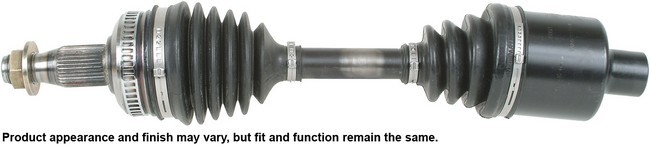

    CARDONE New CV Axle Assembly P/N:66-3044
    CARDONE New CV Axle Assembly P/N:66-3044
    $111.99
    $111.99

    A1 CARDONE 66-3044 front right CV axle for the 1993-1995 Dodge Intrepid and other vehicles carries drive torque from the transaxle to the wheel hub. This new A1 CARDONE CV axle assembly has a steel shaft with CV joints and an ABS tone ring already fitted.

    • Neoprene boots with additional bellows, when needed, to resist bellow stress and cracking
    • Each shaft is individually verified for straightness, and measurements are validated after assembly
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for a proper fit in the hub, the transmission and the axle nut

    Quick facts

    • Part: A1 CARDONE 66-3044 CV axle
    • Also called: CV axle assembly
    • Fits: 1993-1995 Dodge Intrepid and other vehicles
    • Position: Front right
    • Material: Steel shaft, neoprene boots
    • Condition: New

    A clicking noise when you cut the wheel and accelerate, a thump or vibration under throttle, or grease on the chassis can mean a worn joint or a split boot. Before you replace the axle, rule out a broken engine mount or its hardware, since a shifted drivetrain can bind the inner joint.

    Fits

    This front right CV axle is a direct-fit replacement for the 1993-1995 Dodge Intrepid, the 1993-1995 Chrysler Concorde and the 1993-1995 Chrysler Intrepid. If yours is a different model, look up its year and model in the "Vehicles it fits" section. This listing is one axle for the front right; the 1993-1995 Dodge Intrepid takes one on that side, and the front left is a separate part, normally replaced together with it.

    Specifications

    Fit and size

    • Position: front right
    • Quantity per vehicle: 1
    • Shaft diameter: 27 mm (1.063 in)
    • Compressed length: 536.58 mm (21.125 in)
    • Inboard splines: 27
    • Outboard splines: 33
    • Axle nut thread size: M27x2.0
    • Axle nut socket size: 32 mm (1.26 in)

    Build and materials

    • Condition: new
    • Shaft material: steel
    • Boot material: neoprene
    • ABS tone ring: included, window type, 50 teeth
    • Axle nut: hex, included
    • Country of origin: China

    In the box

    One complete axle, a new axle retaining nut and an instruction sheet.

    Installation notes

    • The supplied nut replaces the original, which is likely worn or stripped; an old locking-style (prevailing torque) nut is never reused.
    • Tighten the nut with a torque wrench to the manufacturer's specification, never with an impact wrench.
    • Remove and install one CV axle at a time, and never let an axle hang unsupported.

    Interchange: 4728812 · 4728814

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4728812, 4728814

    Frequently Asked Questions

    Is the A1 CARDONE 66-3044 right for the 1993-1995 Chrysler Concorde?

    Yes. A1 CARDONE 66-3044 is a front right CV axle that fits the 1993-1995 Chrysler Concorde and the 1993-1995 Chrysler Intrepid; the front left side is a separate part.

    Does the A1 CARDONE cv drive axle come with a new axle nut?

    Yes. A1 CARDONE 66-3044 ships with a new hex axle nut, thread size M27x2.0, along with an instruction sheet.

    Do A1 CARDONE axles include the ABS tone ring?

    Yes, on this one. The 66-3044 front right axle has a window-type ABS tone ring with 50 teeth.

    What does grease around a CV axle boot mean?

    Grease on the chassis or suspension can mean the boot has ruptured. Once the grease leaks out, water and dirt can reach the joint and damage it, so have it inspected.

    Should I reuse the old transaxle seals when I replace this CV axle?

    No. Install new transaxle seals when replacing a CV axle, to avoid leaking at the transaxle.
