Front Right CV Axle for 2004 Dodge Verna & More - CARDONE New 66-3184

$245.99

Vehicles this part fits

    Part number: 66-3184
    UPC: 082617686457
    Condition: New
    Weight: 16.30 LBS
    Item Package Quantity: 1
    $245.99
    Adding to cart… The item has been added

    Have questions?

    CARDONE New CV Axle Assembly P/N:66-3184
    CARDONE New CV Axle Assembly P/N:66-3184
    $245.99
    $245.99

    CARDONE New 66-3184 front right CV axle for the 2004 Dodge Verna and other vehicles sends drive torque from the transmission to the wheel hub. This CV axle assembly is new and includes its CV joints.

    • Neoprene boots designed to resist bellow stress and ozone cracking, the leading cause of boot failure
    • Shaft individually verified for straightness
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for fit in the hub, the transmission and the axle nut

    Quick facts

    • Part: CARDONE New 66-3184 CV axle
    • Also called: CV axle assembly
    • Fits: 2004 Dodge Verna and other vehicles
    • Position: Front right
    • Material: Steel shaft
    • Condition: New

    A torn boot with grease thrown around the chassis, clicking when you turn with the wheel cut, or a thump and vibration when you accelerate can mean a CV axle is worn. Before you replace the axle, rule out a broken engine mount, which can bind the inner joint, and a damaged ABS sensor ring or wiring if the ABS light is on; a shop can inspect both.

    Fits

    As a Hyundai Accent CV axle for the 1995-1999 and 2001-2002 model years, it also fits the 2004 Dodge Verna, and the front right position on each takes one. It is built to O.E. form, fit and function. This listing is one axle for the front right; the front left is a separate part, and both are normally replaced together.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per vehicle: 1
    • Shaft diameter: 25 mm (0.984 in)
    • Compressed length: 906.46 mm (35.688 in)
    • Inboard joint: splined, 25 splines
    • Outboard joint: splined, 25 splines
    • Axle nut: hex, M22x1.5 thread, 32 mm socket, 21.5 mm long

    Build and materials

    • Condition: New
    • Shaft material: Steel
    • Boot: neoprene, 3 ribs

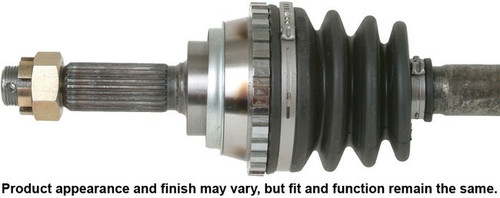

    • ABS tone ring: included, toothed, 29 teeth
    • CV joints: included
    • Country of origin: China

    In the box

    One complete CV axle with a new axle retaining nut, and an instruction sheet.

    Installation notes

    • The new axle retaining nut is supplied because the original may be worn or stripped.
    • Tighten the retaining nut with a torque wrench to the vehicle maker's specification, never an impact wrench.
    • Install new transaxle seals when replacing CV axles to avoid leaks.

    Interchange: 4950025210 · 4950025310 · 4950025311 · 4950822B00 · 4950822C00

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4950025210, 4950025310, 4950025311, 4950822B00, 4950822C00

    Frequently Asked Questions

    Does CARDONE New 66-3184 fit the 2004 Dodge Verna?

    Yes. CARDONE New 66-3184 is a front right axle for the 2004 Dodge Verna; the left side is a separate part.

    Does this CV axle come with a new axle nut?

    Yes. The axle comes with a new hex retaining nut (M22x1.5 thread) and an instruction sheet.

    Is the ABS tone ring included on CARDONE New 66-3184?

    Yes. CARDONE New 66-3184 has a toothed ABS tone ring with 29 teeth.

    Can clicking in tight turns mean the CV axle is worn?

    Yes. Clicking or snapping when you turn with the wheel cut can be a sign of a worn outer joint, and a split boot with grease around it is another sign; a shop can confirm.

    Can I remove both CV axles at the same time?

    No. Remove and install one CV axle at a time, because pulling both can lose the transaxle gear alignment and some vehicles then need the transaxle taken apart to realign the output gears.
