Front Right CV Axle for 1996-1997 Dodge Intrepid & More - CARDONE New 66-3188

$111.99

Vehicles this part fits

    Part number: 66-3188
    UPC: 082617632959
    Condition: New
    Weight: 17.30 LBS
    Item Package Quantity: 1
    $111.99
    Adding to cart… The item has been added

    Have questions?

    CARDONE New CV Axle Assembly P/N:66-3188
    CARDONE New CV Axle Assembly P/N:66-3188
    $111.99
    $111.99

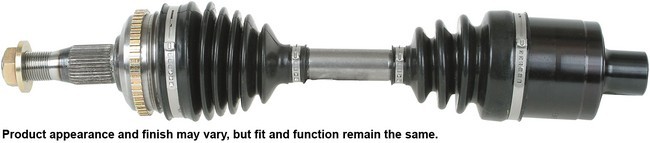

    CARDONE New 66-3188 front right CV axle for the 1996-1997 Dodge Intrepid and other vehicles carries drive torque from the transaxle to the wheel. This CV axle assembly comes with its CV joints and a steel shaft, built to meet O.E. form, fit and function.

    • Neoprene boots with extra bellows where needed to resist bellows stress and cracking, the leading cause of boot failure
    • Each shaft is individually verified for straightness for vibration-free performance at all speeds
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Splines and threads are precision rolled, and the transmission seal diameter is precision-machined after heat treatment

    Quick facts

    • Part: CARDONE New 66-3188 CV axle
    • Also called: CV axle assembly
    • Fits: the 1996-1997 Dodge Intrepid and other vehicles
    • Position: Front right
    • Material: Steel shaft, neoprene boots
    • Condition: New

    A worn axle can show up as clicking or snapping when you turn with the wheel cut, a thump or vibration when you accelerate, or a torn boot with grease on the chassis or suspension. Before you replace the axle, rule out a broken engine mount, and damaged sensor wiring if the ABS light came on after an earlier axle swap; a shop can test both.

    Fits

    This front right CV axle also fits the 1996-1997 Chrysler Concorde and the 1996-1997 Chrysler Intrepid. To check your exact model and engine, open the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: front right
    • Quantity per application: 1
    • Shaft diameter: 27 mm (1.063 in)
    • Compressed length: 536.58 mm (21.125 in)
    • Splines: 27 inboard, 33 outboard
    • Axle nut: hex, M27x2.0 thread, 34 mm socket size, 18 mm long

    Build and materials

    • Shaft material: steel
    • Boot: neoprene, 6 ribs

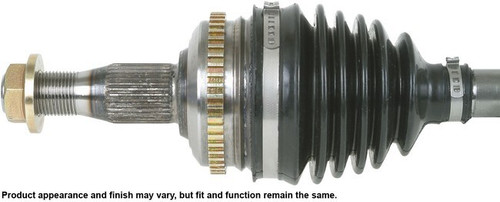

    • ABS tone ring: included, toothed, 50 teeth
    • Condition: new
    • Country of origin: China

    In the box

    One front right CV axle with a new axle retaining nut and an instruction sheet. This listing holds one axle, and the front right takes one; the front left is a separate part.

    Installation notes

    • Remove and install one axle at a time.
    • Use a torque wrench, never an impact wrench, on the retaining nut and torque it to the manufacturer's specifications.
    • Install new transaxle seals to avoid leaks.
    • Never let the axle hang unsupported; that can separate the axle and damage the inner joint.

    Interchange: 4798096 · 4798099 · 4798776 · 4798777

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4798096, 4798099, 4798776, 4798777

    Frequently Asked Questions

    Is the CARDONE 66-3188 axle right for the 1996-1997 Chrysler Concorde?

    Yes. CARDONE 66-3188 is a front right CV axle for the 1996-1997 Chrysler Concorde. Open the "Vehicles it fits" section to check other models.

    Does the CARDONE 66-3188 CV axle come with a new axle nut?

    Yes. This CARDONE 66-3188 comes with the complete axle, a new hex axle nut with M27x2.0 thread, and an instruction sheet.

    Does this front right CV axle include an ABS tone ring?

    Yes. The axle includes a toothed ABS tone ring with 50 teeth.

    What can a clicking noise when turning mean on a CV axle?

    Clicking or snapping when you turn with the wheel cut can point to a worn outer CV joint. A torn boot with grease on the chassis or suspension is another sign.

    Can I use an impact wrench on this CV axle's retaining nut?

    No. Use a torque wrench and tighten the retaining nut to the manufacturer's specifications. An impact wrench should never be used on it.
