Front Left CV Axle for 2004 Dodge Verna & More - CARDONE New 66-3311

$90.99

Vehicles this part fits

    Part number: 66-3311
    UPC: 082617686518
    Condition: New
    Weight: 12.00 LBS
    Item Package Quantity: 1
    $90.99
    Adding to cart… The item has been added

    Have questions?

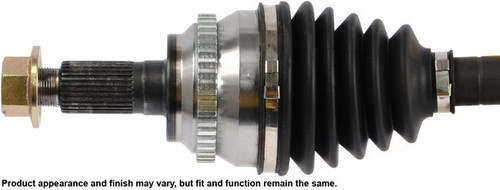

    CARDONE New CV Axle Assembly P/N:66-3311
    CARDONE New CV Axle Assembly P/N:66-3311
    $90.99
    $90.99

    CARDONE New 66-3311 front left CV axle for the 2004 Dodge Verna and other vehicles sends drive torque from the transaxle to the front left wheel. This CV axle assembly was engineered around the reasons original axles typically fail, to avoid a repeat failure.

    • Neoprene boots with additional bellows, when needed, to resist bellows stress and cracking, the leading cause of boot failure
    • Each shaft individually verified for straightness, for vibration-free running at all speeds
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Splines and threads precision rolled for proper fit in the hub, the transmission and the axle nut
    • Transmission seal diameter precision-machined after heat treatment for correct surface finish

    Quick facts

    • Part: CARDONE New 66-3311 CV axle
    • Also called: CV axle assembly
    • Fits: 2004 Dodge Verna and other vehicles
    • Position: Front left
    • Material: Steel shaft with neoprene boots
    • Condition: New

    Clicking or snapping when you turn under power, grease flung around the suspension, or a vibration when you accelerate can mean the CV joint or boot is worn. Before replacing the axle, look over the boot with the engine off for splits or grease spray. If it looks intact, a shop can check the engine mounts and hub.

    Fits

    It fits the 2004 Dodge Verna and is also a CV axle for the 2000-2002 Hyundai Accent, built to O.E. form, fit and function. Axles on both sides are normally replaced together; this listing is a single front left axle, and the front right is ordered separately.

    Specifications

    Fit and size

    • Position: front left, quantity 1
    • Shaft diameter: 25 mm (0.984 in)
    • Compressed length: 622.3 mm (24.5 in)
    • Inboard joint: splined, 25 splines
    • Outboard joint: splined, 25 splines
    • Axle nut: hex, M22x1.5 thread, 32 mm (1.26 in) socket, 21.5 mm (0.846 in) long

    Build and materials

    • Shaft material: steel
    • Boot: neoprene, 3 ribs
    • CV joints: included
    • ABS tone ring: included, toothed, 44 teeth
    • Condition: new
    • Country of origin: China

    In the box

    One complete CV axle with a new axle retaining nut, and an instruction sheet.

    Installation notes

    • Remove and install one axle at a time.
    • Tighten the retaining nut with a torque wrench to the manufacturer's specification; never use an impact wrench.
    • Fit new transaxle seals to avoid leaking.
    • Never let the axle hang unsupported, which can lead to axle separation and inner joint damage.

    Interchange: 4950025400 · 4950025500 · 4950025501

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4950025400, 4950025500, 4950025501

    Frequently Asked Questions

    Does the CARDONE New 66-3311 fit the 2000-2002 Hyundai Accent?

    Yes, the CARDONE New 66-3311 front left CV axle fits the 2000-2002 Hyundai Accent, and the 2004 Dodge Verna takes it as well. Each car takes one front left axle.

    Does the 66-3311 front left axle come with a new axle nut?

    Yes, CARDONE New 66-3311 comes with a new axle retaining nut, along with the complete CV axle and an instruction sheet. The ABS tone ring is included.

    What thread and socket size is the axle nut on this front left CV axle?

    The retaining nut is a hex nut with an M22x1.5 thread and a 32 mm (1.26 in) socket size. It is 21.5 mm (0.846 in) long.

    What does clicking when I turn with the wheel cut hard mean on a CV axle?

    A clicking or snapping noise when turning under power can mean the outer CV joint is worn. A torn boot with grease on the suspension is another sign; a shop can confirm which part is at fault.

    Which nut do I use to install CARDONE New 66-3311?

    Always discard the old prevailing torque lock nut and use the new retaining nut that ships with CARDONE New 66-3311. Tighten it with a torque wrench to the manufacturer's specification, not an impact wrench.
