Front Left CV Axle for 2001-2005 Hyundai Santa Fe - A1 CARDONE 66-3368

$157.99

Vehicles this part fits

    Part number: 66-3368
    UPC: 082617802505
    Condition: New
    Weight: 16.80 LBS
    Item Package Quantity: 1
    $157.99
    Adding to cart… The item has been added

    Have questions?

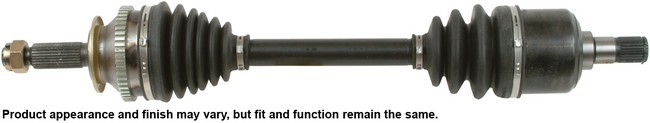

    CARDONE New CV Axle Assembly P/N:66-3368
    CARDONE New CV Axle Assembly P/N:66-3368
    $157.99
    $157.99

    A1 CARDONE 66-3368 front left CV axle for the 2001-2005 Hyundai Santa Fe carries engine torque from the transaxle to the wheel. Its two CV joints let the wheel turn and move with the suspension while driving.

    • Neoprene boots with extra bellows, when needed, to resist bellow stress and cracking
    • Shaft individually verified for straightness for vibration-free performance at all speeds
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Precision-rolled splines fit the mating hub and transmission, and rolled threads fit the axle nut
    • Grease withstands high-temperature and high-torque demands

    Quick facts

    • Part: A1 CARDONE 66-3368 CV axle
    • Also called: CV axle assembly
    • Fits: 2001-2005 Hyundai Santa Fe
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking when you turn hard, a thump or vibration when you accelerate, or grease on the chassis can point to a worn CV axle assembly. Before replacing it, look over the boots with the engine off for tears or grease spatter; if the axle is the cause, this one replaces it.

    Fits

    It fits the 2001-2005 Hyundai Santa Fe, which takes one axle on each front side. This listing is the front left; the front right is a separate part, and the two are normally done at the same time.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per application: 1
    • Shaft diameter: 27 mm (1.063 in)
    • Compressed length: 576.26 mm (22.688 in)
    • Inboard joint: splined, 23 splines
    • Outboard joint: splined, 26 splines
    • Axle nut: hex, M22x1.5 thread, 32 mm (1.26 in) socket, 21 mm (0.827 in) long

    Build and materials

    • Condition: New
    • Shaft material: Steel
    • Boot material: Neoprene, 5 ribs
    • CV joints: included
    • ABS tone ring: included, toothed, 52 teeth
    • Country of origin: China

    In the box

    One complete axle with its CV joints, an axle nut and an instruction sheet.

    Installation notes

    • Use a torque wrench on the axle nut, never an impact wrench, and tighten to the vehicle maker's specification.
    • Remove and install one axle at a time, and fit new transaxle seals to avoid leaks.
    • For a stub shaft stuck in the hub, use a press-type tool and never strike it with a hammer.

    Interchange: 4950126500 · 4950126501 · 4950126510 · 4950126511

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4950126500, 4950126501, 4950126510, 4950126511

    Frequently Asked Questions

    Will this A1 CARDONE CV axle fit the 2001-2005 Hyundai Santa Fe?

    Yes. A1 CARDONE 66-3368 is a front left CV axle for the 2001-2005 Hyundai Santa Fe; the front right side takes a separate axle.

    Do A1 CARDONE axles like this one include the axle nut?

    Yes. This front left axle comes with a hex axle nut (M22x1.5 thread, 32 mm socket), plus its CV joints, the ABS tone ring and an instruction sheet.

    How many splines does this A1 CARDONE CV drive axle have?

    A1 CARDONE 66-3368 has 23 splines on the inboard joint and 26 on the outboard joint. Its shaft diameter is 27 mm (1.063 in).

    Why does my CV axle click when I turn the wheel hard?

    Clicking or snapping on a hard turn can mean a worn outer joint, and grease on the chassis can mean a torn boot. Either sign can have other causes.

    Is it okay to tighten the axle nut with an impact wrench?

    No. Use a torque wrench and tighten the nut to the vehicle maker's specification. A new axle nut comes with the A1 CARDONE 66-3368 axle.
