Front Left CV Axle for 2003-2008 Hyundai Tiburon - CARDONE New 66-3461

$160.99

Vehicles this part fits

    Part number: 66-3461
    UPC: 884548206380
    Condition: New
    Weight: 17.60 LBS
    Item Package Quantity: 1
    $160.99
    Adding to cart… The item has been added

    Have questions?

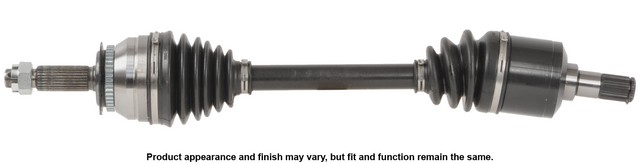

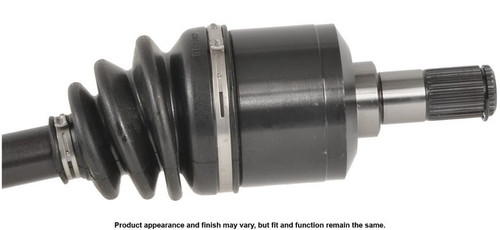

    CARDONE New CV Axle Assembly P/N:66-3461
    CARDONE New CV Axle Assembly P/N:66-3461
    $160.99
    $160.99

    CARDONE New 66-3461 front left CV axle for the 2003-2008 Hyundai Tiburon carries engine torque from the transmission to the wheel through two flexing joints. The design comes from research into why original axles fail.

    • Neoprene boots with extra bellows where needed to resist bellow stress and ozone cracking
    • Each shaft is individually verified for straightness, for vibration-free performance at all speeds
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for proper fit in the hub, transmission and axle nut
    • A new axle retaining nut is supplied, since the original nut is likely worn or stripped

    Quick facts

    • Part: CARDONE New 66-3461 CV axle
    • Also called: CV axle assembly
    • Fits: 2003-2008 Hyundai Tiburon
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn, a torn boot with grease leaking out, or a vibration when you accelerate can come from a worn axle. A worn hub bearing or a broken engine mount can be behind those signs too, so find the cause before buying.

    Fits

    This CV axle assembly fits the 2003-2008 Hyundai Tiburon, which takes one on the front left. Plan to replace the front axles as a pair when you can; this listing is one axle for the front left, and the front right is a separate part.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per vehicle: 1
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 652 mm (25.669 in)
    • Splines: 27 inboard, 27 outboard
    • Axle nut thread: M22x1.5
    • Axle nut socket size: 32 mm (1.26 in)
    • Axle nut length: 21 mm (0.827 in)

    Build and materials

    • Shaft material: Steel
    • Boot material: Neoprene
    • Joint type: Splined inboard and outboard

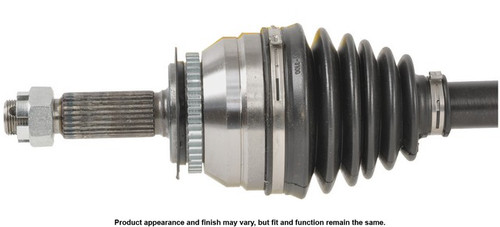

    • ABS tone ring: Included, toothed, 44 teeth
    • Axle nut: Hex, included
    • Condition: New
    • Country of origin: China

    In the box

    One complete CV axle with a new axle nut and an instruction sheet.

    Installation notes

    • Discard the old locking-style (prevailing torque) nut; it should never be reused.
    • Tighten the retaining nut with a torque wrench to the manufacturer's specifications, never an impact wrench.
    • Remove and install one axle at a time, and never let an axle hang unsupported.
    • Install new transaxle seals when replacing axles.

    Interchange: 495012C100 · 495012C101 · 495012C111 · 495012C310

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    495012C100, 495012C101, 495012C111, 495012C310

    Frequently Asked Questions

    Is the CARDONE New 66-3461 CV axle right for the 2003-2008 Hyundai Tiburon?

    Yes. The CARDONE New 66-3461 is a front left CV axle that fits the 2003-2008 Hyundai Tiburon, and the Tiburon takes one on that side.

    Does this front left CV axle come with a new axle nut?

    Yes. It comes with a new hex axle nut (M22x1.5 thread, 32 mm socket), along with the complete axle and an instruction sheet.

    Does this CV axle include an ABS tone ring?

    Yes. CARDONE New 66-3461 includes a toothed ABS tone ring with 44 teeth.

    What can a clicking noise when turning mean on a CV axle?

    A clicking or snapping sound when you turn under power can come from a worn outer joint. A torn boot that lets grease out and dirt in can also damage the joint, and a shop can confirm the cause.

    Can I use an impact wrench to tighten the CV axle retaining nut?

    No. Use a torque wrench and tighten the retaining nut to the manufacturer's specifications. An impact wrench should never be used on this nut.
