Front Right CV Axle for 1999-2004 Honda Odyssey - CARDONE New 66-4165

$124.99

Vehicles this part fits

    Part number: 66-4165
    UPC: 082617686709
    Condition: New
    Weight: 17.00 LBS
    Item Package Quantity: 1
    $124.99
    Adding to cart… The item has been added

    Have questions?

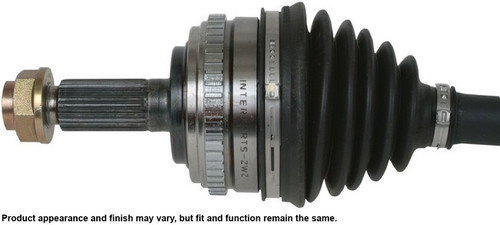

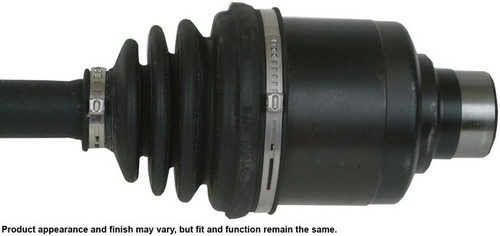

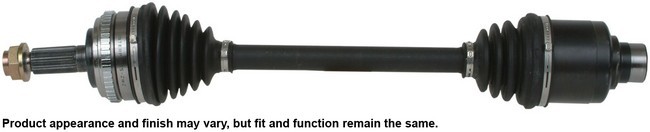

    CARDONE New CV Axle Assembly P/N:66-4165
    CARDONE New CV Axle Assembly P/N:66-4165
    $124.99
    $124.99

    CARDONE New 66-4165 front right CV axle for the 1999-2004 Honda Odyssey carries engine torque from the transaxle to the wheel. It is engineered around the reasons original CV axles typically fail, with new solutions to help avoid a repeat failure.

    • Neoprene boots with extra bellows where needed to resist bellow stress and cracking, the leading cause of boot failure
    • Every shaft is individually verified for straightness, for vibration-free performance at all speeds
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for correct fit in the hub, the transmission and the axle nut
    • Transmission seal diameter precision-machined after heat treatment for a correct surface finish that promotes seal life

    Quick facts

    • Part: CARDONE New 66-4165 CV axle
    • Also called: CV axle assembly
    • Fits: 1999-2004 Honda Odyssey
    • Position: Front right
    • Material: Steel (shaft), neoprene (boots)
    • Condition: New

    Clicking or snapping when you turn hard under power, a thump or vibration when you accelerate, or grease on the chassis or suspension can all be signs of a worn joint or a torn boot. These signs alone do not prove the axle is the problem, since a worn wheel bearing can make similar noises.

    Fits

    As a CV axle replacement for the 1999-2004 Honda Odyssey, it is built to OE form, fit and function. This listing is one axle for the front right; the front left is a separate part, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: Front right
    • Compressed length: 660.4 mm (26 in)
    • Shaft diameter: 28 mm (1.102 in)
    • Inboard spline quantity: 29
    • Outboard spline quantity: 28
    • Axle nut: hex, M24x1.5 thread, 36 mm (1.417 in) socket size

    Build and materials

    • Shaft material: Steel
    • Boot material: Neoprene, 3 ribs
    • Inboard and outboard joints: splined, CV joints included
    • ABS tone ring: included, toothed, 50 teeth
    • Condition: New
    • Country of origin: China

    In the box

    One complete CV axle, one new axle retaining nut and one instruction sheet.

    Installation notes

    • Remove and install one CV axle at a time.
    • Use a torque wrench on the retaining nut and torque it to specification; never use an impact wrench.
    • Install new transaxle seals when replacing the axle.

    Interchange: 44305S0XA51 · 44305S0XA52

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    44305S0XA51, 44305S0XA52

    Frequently Asked Questions

    Is this the front axle for the 1999-2004 Honda Odyssey?

    Yes. CARDONE New 66-4165 is the front right CV axle for the 1999-2004 Honda Odyssey. The front left side takes a separate part.

    Does this CV axle assembly come with a new axle nut?

    Yes. CARDONE New 66-4165 comes with a new hex axle retaining nut (M24x1.5 thread, 36 mm socket size) and an instruction sheet.

    Does this front right axle include an ABS tone ring?

    Yes. This axle includes a toothed ABS tone ring with 50 teeth.

    Why do I hear clicking when I turn hard and accelerate?

    A clicking or snapping noise in a hard turn under power can come from a worn outer CV joint. Grease on the chassis or suspension can mean a torn boot.

    Does CARDONE New 66-4165 replace interchange number 44305S0XA51?

    Yes. Interchange numbers 44305S0XA51 and 44305S0XA52 are both listed for CARDONE New 66-4165.
