Front CV Axle for 1991-1997 Toyota Previa - A1 CARDONE 66-5050

$129.99

Vehicles this part fits

    Part number: 66-5050
    UPC: 082617686778
    Condition: New
    Weight: 16.25 LBS
    Item Package Quantity: 1
    $129.99
    Adding to cart… The item has been added

    Have questions?

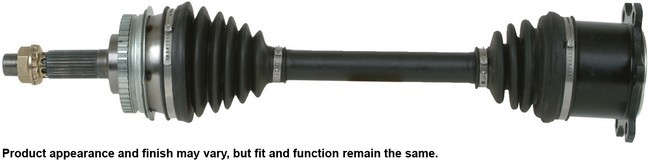

    CARDONE New CV Axle Assembly P/N:66-5050
    CARDONE New CV Axle Assembly P/N:66-5050
    $129.99
    $129.99

    A1 CARDONE 66-5050 front CV axle for the 1991-1997 Toyota Previa carries drive torque from the transmission to the wheel hub. Also listed as a CV axle assembly, this new axle is designed around the reasons original axles typically fail.

    • Neoprene boots with additional bellows where needed to resist bellow stress and ozone cracking, the leading cause of boot failure
    • Each shaft is individually verified for straightness for vibration-free performance at all speeds
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines fit the mating hub and transmission; precision-rolled threads fit the axle nut
    • Transmission seal diameter is precision-machined after heat treatment for the correct surface finish

    Quick facts

    • Part: A1 CARDONE 66-5050 CV axle
    • Also called: CV axle assembly
    • Fits: 1991-1997 Toyota Previa
    • Position: Front right, front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn with the wheel cut, grease on the chassis or suspension, or a thump and vibration when you accelerate can mean the joint or boot is worn. These signs alone do not prove the axle is at fault, since a broken engine mount can also bind the inner joint.

    Fits

    This CV axle fits the 1991-1997 Toyota Previa and is built to O.E. form, fit and function. The 1991-1997 Toyota Previa takes one axle at each front wheel; this listing is one axle, so a second is ordered separately when both sides are replaced, as they normally are.

    Specifications

    Fit and size

    • Position: front right, front left
    • Quantity per application: 1
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 563.56 mm (22.188 in)
    • Axle nut: hex, M22x1.5 thread, 30 mm (1.181 in) socket size
    • Outboard joint: splined, 26 splines

    Build and materials

    • Shaft material: steel
    • Boot material: neoprene
    • Inboard joint: bolt-on, 6 mounting holes
    • ABS tone ring: included, toothed, 48 teeth
    • Condition: new
    • Country of origin: China

    In the box

    One complete axle with CV joints, a new axle retaining nut and an instruction sheet.

    Installation notes

    • Remove and install one axle at a time.
    • Tighten the axle nut to the manufacturer's specification with a torque wrench, not an impact wrench.
    • Install new transaxle seals when replacing the axle.
    • Do not let the axle hang unsupported while you work; the instruction sheet comes with the part.

    Interchange: 4343028021 · 4343028031

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4343028021, 4343028031

    Frequently Asked Questions

    Does the A1 CARDONE 66-5050 CV axle fit the 1991-1997 Toyota Previa?

    Yes. A1 CARDONE 66-5050 is a front CV axle that fits the 1991-1997 Toyota Previa, on either front side.

    Does this A1 CARDONE cv drive axle come with a new axle nut?

    Yes. A1 CARDONE 66-5050 comes with the complete axle, a new axle retaining nut and an instruction sheet.

    Do A1 CARDONE axles like this one include the ABS tone ring?

    Yes. This front CV axle includes a toothed ABS tone ring with 48 teeth.

    Why would a front CV axle click when turning or leave grease on the suspension?

    Clicking when you turn with the wheel cut can mean a worn joint, and grease on the chassis or suspension can mean a torn boot. A shop can confirm which one it is.

    Can I use an impact wrench on the axle nut of this CV axle?

    No. Use a torque wrench and tighten the nut to the manufacturer's specification. The new nut supplied with A1 CARDONE 66-5050 replaces the old one, which should not be reused.
