Front Left CV Axle for 2013 Infiniti EX37 & More - A1 CARDONE 66-6299

$205.99

Vehicles this part fits

    Part number: 66-6299
    UPC: 884548181663
    Condition: New
    Weight: 14.40 LBS
    Item Package Quantity: 1
    $205.99
    Adding to cart… The item has been added

    Have questions?

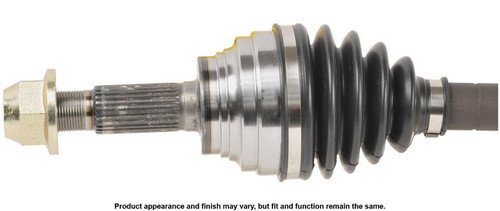

    CARDONE New CV Axle Assembly P/N:66-6299
    CARDONE New CV Axle Assembly P/N:66-6299
    $205.99
    $205.99

    A1 CARDONE 66-6299 front left CV axle for the 2013 Infiniti EX37 and other vehicles carries drive torque to the front left wheel. Its design targets the reasons original CV axles typically fail, starting with boot cracking.

    • Neoprene boots with additional bellows where needed, to resist bellow stress and cracking
    • Shaft individually verified for straightness, for vibration-free performance at all speeds
    • A1 CARDONE axles have their measurements validated after assembly
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for proper fit in the hub, transmission and axle nut

    Quick facts

    • Part: A1 CARDONE 66-6299 CV axle
    • Also called: CV axle assembly
    • Fits: 2013 Infiniti EX37 and other vehicles
    • Position: Front left
    • Material: Steel shaft, neoprene boot
    • Condition: New

    Clicking when turning hard under power, a thump or vibration on acceleration, or grease on the chassis can mean a worn joint or torn boot. These signs alone do not prove the axle is at fault; a broken engine mount can also bind the inner joint. Each front wheel takes one axle; this listing is the front left, the front right is a separate part, and both sides are normally replaced together.

    Fits

    The 2013 Infiniti EX37, the 2009-2013 Infiniti G37 and the 2008-2012 Infiniti EX35 take this axle, along with other vehicles, and its engineering process is meant to meet O.E. form, fit and function. If your car is not named here, find your year and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per application: 1
    • Shaft diameter: 27 mm (1.063 in)
    • Compressed length: 638.05 mm (25.12 in)
    • Axle nut: hex, M24x1.5 thread, 29 mm long, 36 mm socket size
    • Outboard splines: 27; inboard joint mount holes: 6

    Build and materials

    • Shaft material: Steel
    • Boot material: Neoprene, 4 ribs
    • CV joints included; inboard joint bolt-on, outboard joint splined
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    In the box

    One complete CV axle with its CV joints, a new axle retaining nut and an instruction sheet.

    Installation notes

    • A new axle retaining nut is supplied because the original is likely worn or stripped; discard an old prevailing torque nut.
    • Use a torque wrench on the nut, never an impact wrench, and torque it to the manufacturer's specification.
    • Use a press-type tool to free the old stub shaft; never strike it with a hammer.
    • Remove and install one axle at a time, and fit new transaxle seals.

    Interchange: 39101EJ71A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    39101EJ71A

    Frequently Asked Questions

    Is this 2009-2013 Infiniti G37 cv axle the front left one?

    Yes. A1 CARDONE 66-6299 is the front left axle for the 2009-2013 Infiniti G37; the front right side is a separate part.

    Does the A1 CARDONE CV drive axle come with a new axle nut?

    Yes. A1 CARDONE 66-6299 comes with its CV joints, a new hex axle retaining nut and an instruction sheet. The ABS tone ring is not included.

    What size are the shaft and axle nut thread on this front left CV axle?

    The shaft diameter is 27 mm (1.063 in). The axle nut has an M24x1.5 thread and a 36 mm socket size.

    How do I spot a failed boot on this neoprene-boot axle?

    Look, with the car parked and cool, for a split boot or grease on nearby chassis and suspension parts. A torn boot lets grease out and lets water and dirt in to damage the joint.

    Can I use an impact wrench on the retaining nut of the 66-6299 axle?

    No. Use a torque wrench and tighten the nut to the manufacturer's specification, and fit new transaxle seals when replacing the axle.
