Front Right CV Axle for 2007-2011 Nissan Altima - CARDONE New 66-6307

$166.99

Vehicles this part fits

    Part number: 66-6307
    UPC: 884548232297
    Condition: New
    Weight: 17.20 LBS
    Item Package Quantity: 1
    $166.99
    Adding to cart… The item has been added

    Have questions?

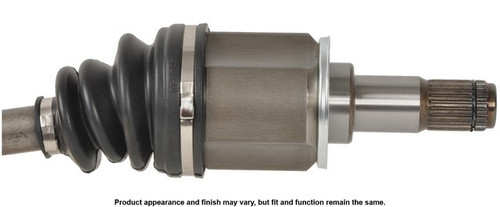

    CARDONE New CV Axle Assembly P/N:66-6307
    CARDONE New CV Axle Assembly P/N:66-6307
    $166.99
    $166.99

    CARDONE New 66-6307 front right CV axle for the 2007-2011 Nissan Altima carries drive torque from the transaxle to the wheel. This complete shaft with CV joints and boots is also called a CV axle assembly.

    • Neoprene boots with additional bellows where needed, to resist bellow stress and ozone cracking
    • Shaft individually verified for straightness for vibration-free performance at all speeds
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease built to withstand high-temperature and high-torque demands
    • Precision-rolled splines and threads for correct fit in the hub, transmission and axle nut
    • Transmission seal diameter precision-machined after heat treatment to promote seal life

    Quick facts

    • Part: CARDONE New 66-6307 CV axle
    • Also called: CV axle assembly
    • Fits: 2007-2011 Nissan Altima
    • Position: Front right
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn hard under power, a thump or vibration when you accelerate, or grease thrown onto the chassis can point to a worn joint or a torn boot. A broken engine mount or a worn hub bearing can be behind similar symptoms, so find the cause before buying an axle.

    Fits

    As an axle for the 2007-2011 Nissan Altima, this one goes on the front right side and is built to meet O.E. form, fit and function. This listing is one side; the front left of that axle pair is a separate part and is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity for this side: 1
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 646.11 mm (25.438 in)
    • Axle nut: M24x1.5 thread, 32 mm (1.26 in) socket size
    • Splines: 24 inboard, 29 outboard

    Build and materials

    • Shaft material: Steel
    • Boots: Neoprene, 5 ribs
    • Joints: CV joints included, splined inboard and outboard
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    In the box

    One CV axle, a new hex axle retaining nut and an instruction sheet. This listing holds one axle, and the front right side takes one.

    Installation notes

    • Remove and install one CV axle at a time; removing both can lose transaxle gear alignment.
    • Tighten the retaining nut with a torque wrench to the vehicle maker's specification, never with an impact wrench.
    • Install new transaxle seals when replacing the axle.
    • Use a press-type tool on a stuck stub shaft and never strike it with a hammer.

    Interchange: 39101JA020

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    39101JA020

    Frequently Asked Questions

    Is this a CV axle replacement for the 2007-2011 Nissan Altima?

    Yes. CARDONE New 66-6307 is the front right CV axle for the 2007-2011 Nissan Altima. The front left is a separate part.

    Does the CARDONE 66-6307 axle come with a new axle nut?

    Yes. Along with the CV axle it includes a new hex axle retaining nut (M24x1.5 thread, 32 mm socket) and an instruction sheet. The ABS tone ring is not included.

    What boot material and shaft size does this front right CV axle have?

    The boots are neoprene, with additional bellows where needed, and the steel shaft is 28 mm (1.102 in) in diameter. Compressed length is 646.11 mm (25.438 in).

    What can loud clicking when I turn hard and accelerate mean on a CV axle?

    A clicking or snapping noise when turning under power can come from a worn outer joint, and grease on the chassis can come from a torn boot. A shop can confirm which.

    Which nut should I use to install this front right CV axle?

    Discard the old prevailing torque lock nut and install the new retaining nut supplied with CARDONE New 66-6307, tightened with a torque wrench.
