Rear CV Axle for 2000-2005 Volkswagen Passat - CARDONE New 66-7038

$108.99

Vehicles this part fits

    Part number: 66-7038
    UPC: 884548207677
    Condition: New
    Weight: 17.00 LBS
    Sold as: one per side
    $108.99
    Adding to cart… The item has been added

    Have questions?

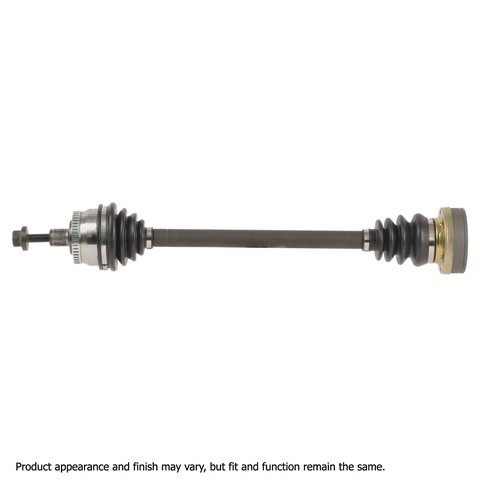

    CARDONE New CV Axle Assembly P/N:66-7038
    CARDONE New CV Axle Assembly P/N:66-7038
    $108.99
    $108.99

    CARDONE New 66-7038 rear CV axle for the 2000-2005 Volkswagen Passat carries engine power from the transaxle to the wheel. This CV axle assembly comes complete with its CV joints and is built to meet O.E. form, fit and function.

    • Neoprene boots with extra bellows where needed to resist bellow stress and ozone cracking, the leading cause of boot failure
    • Shaft individually verified for straightness, for vibration-free running at all speeds
    • Axle measurements validated after assembly for a proper fit
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for a proper fit in the hub, the transmission and the axle nut

    Quick facts

    • Part: CARDONE New 66-7038 CV axle
    • Also called: CV axle assembly
    • Fits: 2000-2005 Volkswagen Passat
    • Position: Rear right, rear left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn hard under power, a thump or vibration when you accelerate, or grease on the chassis and suspension can point to a worn joint or a torn boot. A worn wheel bearing, a broken engine mount or a damaged ABS sensor can also be behind noise, vibration or a lit ABS light, so find out which one it is before you buy an axle.

    Fits

    This is a VW Passat CV axle for the 2000-2005 model years. Replacing both rear axles together is the usual advice; this listing is one axle, and the 2000-2005 Volkswagen Passat takes one on each side at the rear.

    Specifications

    Fit and size

    • Position: rear right, rear left
    • Quantity: one per side
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 614.1 mm (24.177 in)
    • Axle nut thread size: M14x1.5, hex nut
    • Joints: bolt-on inboard, splined outboard with 33 splines

    Build and materials

    • Shaft material: steel
    • Boot: neoprene, black, 4 ribs
    • CV joints: included
    • ABS tone ring: included, window type, 45 teeth
    • Condition: new
    • Country of origin: China

    In the box

    One complete CV axle with its CV joints and an instruction sheet. The axle nut is not included, so plan on a new one.

    Installation notes

    • Remove and install one axle at a time.
    • Use a torque wrench on the retaining nut, never an impact wrench, and discard a locking-style nut instead of reusing it.
    • Install new transaxle seals when replacing axles.
    • Never let the axle hang unsupported, because that can separate it and damage the inner joint.

    Interchange: 8E0501203B · 8E0501203BX

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    8E0501203B, 8E0501203BX

    Frequently Asked Questions

    Is this a VW Passat CV axle replacement for model years 2000-2005?

    Yes. CARDONE New 66-7038 is a rear CV axle for the 2000-2005 Volkswagen Passat and fits both the rear left and rear right positions.

    Is one Passat axle replacement enough for a 2000-2005 car?

    This listing is one axle. The 2000-2005 Volkswagen Passat takes one on each side at the rear, and the two rear axles are usually replaced as a pair.

    Does the CARDONE 66-7038 axle come with a new axle nut?

    No. CARDONE New 66-7038 comes as one complete axle with its CV joints and an instruction sheet. The axle nut is not included.

    Does this rear CV axle have an ABS tone ring?

    Yes. This rear CV axle includes a window-type ABS tone ring with 45 teeth.

    Can I hammer the old stub shaft out when changing this CV axle?

    No. Use a proper press-type tool, because striking the outer joint stub shaft with a hammer can damage the axle and the hub bearing assembly.
