Front Right CV Axle for 1995-1998 Mazda Protege - A1 CARDONE 66-8087

$225.99

Vehicles this part fits

    Part number: 66-8087
    UPC: 082617635684
    Condition: New
    Weight: 13.10 LBS
    Sold as: 1 per side of the axle
    $225.99
    Adding to cart… The item has been added

    Have questions?

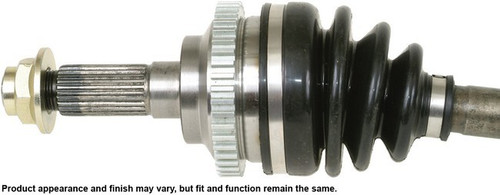

    CARDONE New CV Axle Assembly P/N:66-8087
    CARDONE New CV Axle Assembly P/N:66-8087
    $225.99
    $225.99

    A1 CARDONE 66-8087 front right CV axle for the 1995-1998 Mazda Protege carries drive torque from the transmission to the front right wheel. This new A1 CARDONE CV axle comes assembled with its CV joints and ABS tone ring.

    • Neoprene boots with extra bellows where needed to resist bellow stress and cracking
    • Each shaft individually verified for straightness
    • Axle measurements validated after assembly
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines for the hub and transmission, and precision-rolled threads for the axle nut

    Quick facts

    • Part: A1 CARDONE 66-8087 CV axle
    • Also called: CV axle assembly
    • Fits: 1995-1998 Mazda Protege
    • Position: Front right
    • Material: Steel (shaft)
    • Condition: New

    Clicking or snapping when you turn with the wheel cut, a thump with vibration under acceleration, or grease around a torn boot can mean this axle is worn, though a broken engine mount or a worn wheel bearing can also be behind similar noise or vibration, so find the cause before replacing it.

    Fits

    This axle meets O.E. form, fit and function for the 1995-1998 Mazda Protege. This listing is one axle, for the front right; each side of the front axle takes one, the front left is a separate part, and the pair is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: front right
    • Quantity: 1 per side of the axle
    • Shaft diameter: 25.12 mm (0.989 in)
    • Compressed length: 623.89 mm (24.562 in)
    • Axle nut thread size: M22x1.5
    • Axle nut socket size: 32 mm (1.26 in)
    • Inboard joint: splined, 28 splines
    • Outboard joint: splined, 26 splines

    Build and materials

    • Condition: new
    • Shaft material: steel
    • Boots: black neoprene, 3 ribs
    • CV joints: included
    • ABS tone ring: included, toothed, 44 teeth
    • Country of origin: China

    In the box

    One complete CV axle with its new hex axle nut and an instruction sheet.

    Installation notes

    • Remove and install one CV axle at a time.
    • Torque the axle nut to the manufacturer's specification with a torque wrench, never an impact wrench.
    • Free the stub shaft from the hub with a press-type tool, never a hammer.
    • Install new transaxle seals when replacing the axle.

    Interchange: F06625500 · F06625500A · F06625500C · F0662550X · F0662550XA · F0662550XC · FA142550X · FA152550X

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    F06625500, F06625500A, F06625500C, F0662550X, F0662550XA, F0662550XC, FA142550X, FA152550X

    Frequently Asked Questions

    Will the A1 CARDONE 66-8087 fit the front right side of a 1995-1998 Mazda Protege?

    Yes. A1 CARDONE 66-8087 is the front right axle for the 1995-1998 Mazda Protege, and the front left side takes its own axle.

    Are A1 CARDONE axles like this one fitted with neoprene boots?

    Yes. This front right axle has black neoprene boots with three ribs.

    Does the A1 CARDONE CV drive axle have splined joints?

    Yes. A1 CARDONE 66-8087 has a splined inboard joint with 28 splines and a splined outboard joint with 26 splines.

    Is the ABS tone ring already on this CV axle assembly?

    Yes. The toothed ABS tone ring is included on this front right axle and has 44 teeth.

    What should I do with the old locking-style axle nut when I swap this axle?

    Discard it. A prevailing torque lock nut should never go back on the axle, so install the new nut supplied with this one.
