Front Left CV Axle for 2001-2005 Kia Rio - CARDONE New 66-8142

$114.99

Vehicles this part fits

    Part number: 66-8142
    UPC: 884548202665
    Condition: New
    Weight: 17.60 LBS
    Item Package Quantity: 1
    $114.99
    Adding to cart… The item has been added

    Have questions?

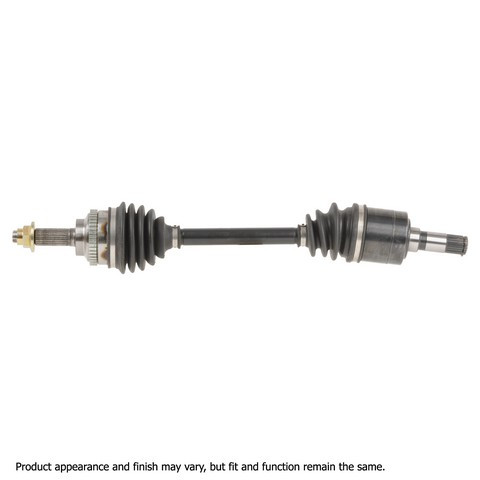

    CARDONE New CV Axle Assembly P/N:66-8142
    CARDONE New CV Axle Assembly P/N:66-8142
    $114.99
    $114.99

    CARDONE New 66-8142 front left CV axle for the 2001-2005 Kia Rio carries drive torque from the transaxle to the wheel. This CV axle assembly comes with both CV joints, a new axle nut and a toothed ABS tone ring.

    • Each shaft is individually verified for straightness for vibration-free performance at all speeds
    • Neoprene boots with additional bellows, when needed, to resist bellow stress and cracking, the leading cause of boot failure
    • Measurements are validated after assembly to confirm proper fit
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for fit in the mating hub, transmission and axle nut

    Quick facts

    • Part: CARDONE New 66-8142 CV axle
    • Also called: CV axle assembly
    • Fits: 2001-2005 Kia Rio
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn under power, a thump or vibration when accelerating, or grease thrown around the chassis from a torn boot can mean a worn joint or boot. Those signs alone don't prove the axle is at fault, since a worn wheel bearing is another common source of noise. This listing is one piece for the front left; the front right axle is its own part, and the two are normally replaced together.

    Fits

    It is a direct-fit replacement for the 2001-2005 Kia Rio, built to O.E. form, fit and function.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity for the front left: 1
    • Shaft diameter: 24.5 mm (0.965 in)
    • Compressed length: 605 mm (23.819 in)

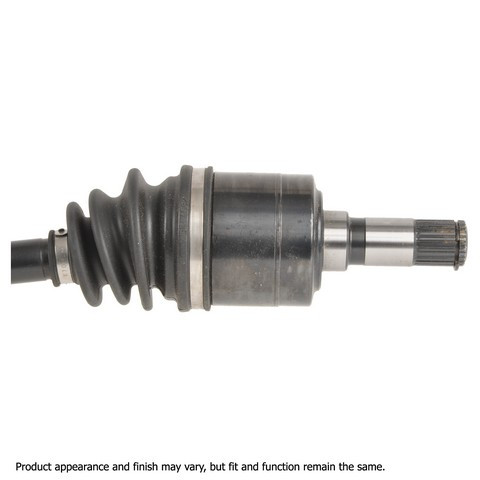

    • Inboard joint: splined, 26 splines

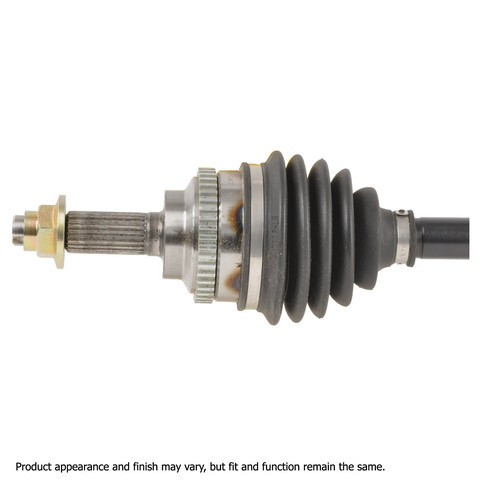

    • Outboard joint: splined, 24 splines
    • Axle nut: hex, M20x1.5 thread, 30 mm (1.181 in) socket size, 22.5 mm (0.886 in) long

    Build and materials

    • Type: complete axle with CV joints
    • Shaft material: steel
    • Boot: neoprene, black, 4 ribs
    • ABS tone ring: included, toothed, 44 teeth
    • Condition: New
    • Country of origin: China

    In the box

    One complete axle with a new axle nut and an instruction sheet. This listing holds one axle, and the front left takes one; the front right axle is ordered separately.

    Installation notes

    • A new axle retaining nut is supplied because the original nut is likely to be worn or stripped.
    • Use a torque wrench, never an impact wrench, and tighten the nut to the vehicle manufacturer's specification.
    • Install new transaxle seals when replacing the axle, to avoid leaks.
    • Remove and install one axle at a time.

    Interchange: KK38825600 · KK38825600A · KK3892560X · KK3892560XA

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    KK38825600, KK38825600A, KK3892560X, KK3892560XA

    Frequently Asked Questions

    Does the CARDONE New 66-8142 fit the 2001-2005 Kia Rio?

    Yes. CARDONE New 66-8142 is a front left CV axle for the 2001-2005 Kia Rio. The front right side needs a separate axle.

    Does the front left CV axle come with a new axle nut?

    Yes. CARDONE New 66-8142 comes with a new hex axle nut (M20x1.5 thread) and an instruction sheet.

    Does this front left CV axle include the ABS tone ring?

    Yes. This front left axle includes a toothed ABS tone ring with 44 teeth.

    How can I tell if a CV axle boot has failed?

    With the engine off, look for cracks in the neoprene boot or grease around the chassis and suspension. A torn boot lets grease out and lets water and dirt in to damage the joint.

    Is it OK to let the CV axle hang while I work on the car?

    No. An axle left hanging unsupported can separate and damage the inner joint, so support it while you work.
