Front Left CV Axle for 2000-2006 BMW X5 - CARDONE New 66-9255

$132.99

Vehicles this part fits

    Part number: 66-9255
    UPC: 082617823883
    Condition: New
    Weight: 17.00 LBS
    Item Package Quantity: 1
    $132.99
    Adding to cart… The item has been added

    Have questions?

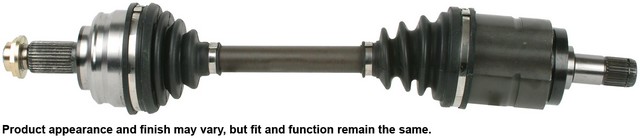

    CARDONE New CV Axle Assembly P/N:66-9255
    CARDONE New CV Axle Assembly P/N:66-9255
    $132.99
    $132.99

    CARDONE New 66-9255 front left CV axle for the 2000-2006 BMW X5 carries drive torque to the wheel. Original CV boots typically fail from bellow stress and ozone cracking, so this CV axle assembly has neoprene boots with additional bellows when needed.

    • Shaft individually verified for straightness, for vibration-free performance at all speeds
    • Measurements validated after assembly
    • New axle retaining nut supplied with the axle
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • High-quality grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for fit in the hub, transmission and axle nut

    Quick facts

    • Part: CARDONE New 66-9255 CV axle
    • Also called: CV axle assembly
    • Fits: 2000-2006 BMW X5
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking in hard turns, grease on the chassis or suspension, or vibration under acceleration can mean a CV axle is worn or its boot has torn. A broken engine mount, a worn hub bearing or a damaged ABS sensor ring can also be behind noise, vibration or an ABS light, so find the cause before buying.

    Fits

    It is a direct-fit replacement for the 2000-2006 BMW X5, engineered to meet O.E. form, fit and function. This listing is one axle; the 2000-2006 BMW X5 takes one at the front left, the front right is a separate part, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per vehicle: 1
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 587.38 mm (23.125 in)
    • Inboard splines: 27
    • Outboard splines: 30
    • Axle nut thread: M27x1.5
    • Axle nut socket size: 36 mm (1.417 in)
    • Axle nut length: 16.5 mm (0.65 in)

    Build and materials

    • Condition: New
    • Shaft material: Steel
    • Boot material: Neoprene, 5 ribs
    • Joint type: Splined inboard and outboard, CV joints included
    • Axle nut: Hex, included
    • ABS tone ring: not included
    • Country of origin: China

    In the box

    One complete CV axle with a new axle nut and one instruction sheet.

    Installation notes

    • Torque the axle nut with a torque wrench to the vehicle manufacturer's specifications; never use an impact wrench on it.
    • Install new transaxle seals when replacing a CV axle to avoid leaks.
    • Remove and install one CV axle at a time, and never let an axle hang unsupported.
    • Use a press-type tool to remove the old stub shaft; never strike it with a hammer.

    Interchange: 31607505005

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    31607505005

    Frequently Asked Questions

    Does the CARDONE New 66-9255 front left CV axle fit the 2000-2006 BMW X5?

    Yes. CARDONE New 66-9255 is a front left CV axle for the 2000-2006 BMW X5, and each listing is one axle.

    Does this CARDONE New 66-9255 CV axle come with an axle nut?

    Yes. It includes a new hex axle nut with an M27x1.5 thread and a 36 mm socket size, plus an instruction sheet. The ABS tone ring is not included.

    What shaft diameter and spline count does this front left CV axle have?

    The shaft diameter is 28 mm (1.102 in), with 27 splines on the inboard joint and 30 on the outboard joint. Compressed length is 587.38 mm (23.125 in).

    Can grease on the suspension mean a CV boot has torn?

    Grease thrown onto the chassis or suspension can mean a boot has ruptured and let water and dirt into the joint. Clicking in tight turns can mean a worn outer joint, so have a shop check it promptly.

    Can I use an impact wrench on the axle nut of this CARDONE 66-9255?

    No. Use a torque wrench and torque the retaining nut to the vehicle manufacturer's specifications, because an impact wrench should never be used on it.
