Rear Windshield Wiper Motor for 1995-2005 Chevrolet Blazer & More - CARDONE New 85-1005

$130.99

Vehicles this part fits

    Part number: 85-1005
    UPC: 082617657785
    Condition: New
    Weight: 4.00 LBS
    Item Package Quantity: 1
    $130.99
    Adding to cart… The item has been added

    Have questions?

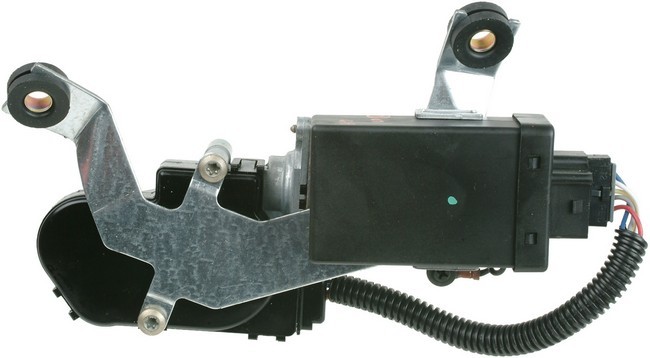

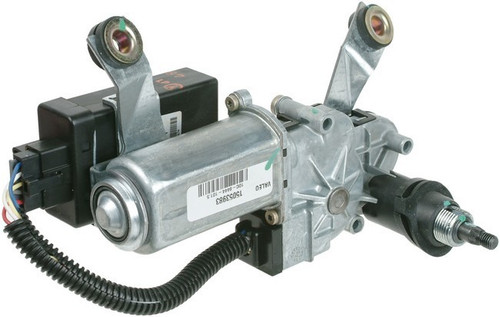

    CARDONE New Windshield Wiper Motor P/N:85-1005
    CARDONE New Windshield Wiper Motor P/N:85-1005
    $130.99
    $130.99

    CARDONE New 85-1005 rear windshield wiper motor for the 1995-2005 Chevrolet Blazer and other vehicles drives the rear wiper arm back and forth across the glass. It is a new motor, reverse engineered from the original and designed as an improvement on it.

    • Part of the CARDONE New wiper motor line
    • Gears made of a stronger, less brittle material to prevent premature wear, stripping and breakage
    • Load testing for reliable performance
    • Brushes designed so the armature and contacts are properly matched
    • Assembled with a measured amount of lubricant for quiet operation and long life
    • Magnets deliver the torque needed in extreme weather and to make up for worn linkage components

    Quick facts

    • Part: CARDONE New 85-1005 windshield wiper motor
    • Fits: 1995-2005 Chevrolet Blazer and other vehicles
    • Position: Rear
    • Material: cast aluminum
    • Condition: New

    A rear wiper that will not move, drags or stops partway across the glass can come from a worn motor, but the arm or linkage can be behind it too. Before you replace the motor, rule out a failed washer pump (some motors will not run when the pump is defective), a poor connection at the wiring harness ground, terminal ground lug or ground strap, and the wiper switch and its circuit.

    Fits

    This motor is a direct-fit replacement for the 1995-2005 Chevrolet Blazer, the 1995-2005 GMC Jimmy and the 1996-2001 Oldsmobile Bravada. The 1995-2005 Chevrolet Blazer takes one motor, and this listing is one.

    Specifications

    Fit and size

    • Position: rear
    • Quantity per vehicle: 1
    • Mounting holes: 3
    • Terminals: 5 female blade
    • Wires: 5, male connector
    • Wiring harness length: 209.55 mm
    • Wiper speeds: 1

    Build and materials

    • Material: cast aluminum
    • Condition: new
    • Electronic components: circuit board
    • Wiring harness: included
    • Country of origin: China

    In the box

    One wiper motor with its wiring harness, and an instruction sheet. A washer pump is not included.

    Installation notes

    • Direct-bolt mounting.
    • The instruction sheet in the box covers the installation steps.

    Interchange: 12365368 · 12494790 · 15053983 · 22154965

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    12365368, 12494790, 15053983, 22154965

    Frequently Asked Questions

    Is this windshield wiper motor for the 1995-2005 Chevrolet Blazer a rear-glass unit?

    Yes. CARDONE New 85-1005 is a rear wiper motor, and it also fits the 1995-2005 GMC Jimmy and the 1996-2001 Oldsmobile Bravada.

    Does this wiper motor include the washer pump?

    No. The washer pump is not included. The box holds the wiper motor, its wiring harness and an instruction sheet.

    What connector does the CARDONE New 85-1005 have?

    It has five female blade terminals and five wires with a male connector. The wiring harness is 209.55 mm long, and the motor runs at one speed.

    How is this rear wiper motor built to resist wear?

    CARDONE New 85-1005 has gears of a stronger, less brittle material than O.E. against premature wear, stripping and breakage. Its brushes are designed to match the armature and contacts.

    Does the CARDONE New rear wiper motor come with installation instructions?

    Yes. An instruction sheet comes in the box with the motor, which mounts by direct bolt.
