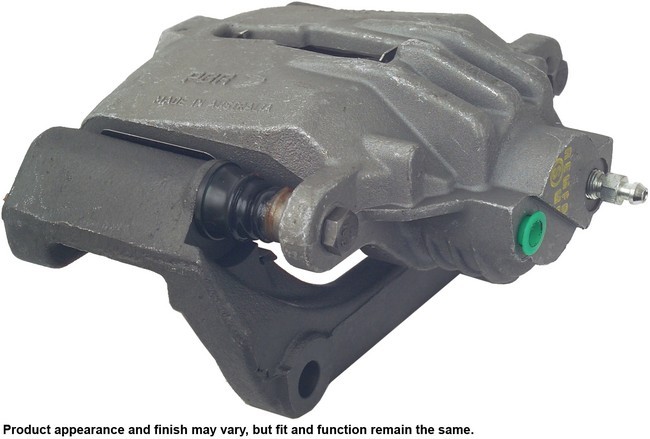

A1 CARDONE 18-B4697 rear right brake caliper for the 1998-2002 Chevrolet Camaro and other vehicles squeezes the pads against the rotor to slow the wheel. This remanufactured caliper is sold unloaded, without pads, and includes its mounting bracket.
- Remanufactured with brand-new components and 100% pressure-tested
- Aluminum piston that resists cracking and pitting
- Rubber seals replaced with new high-temperature EPDM rubber
- Specially formulated rust inhibitor treatment on the caliper
- New bleeder screw for trouble-free bleeding and a positive seal
Quick facts
- Part: A1 CARDONE 18-B4697 brake caliper
- Also called: disc brake caliper
- Fits: 1998-2002 Chevrolet Camaro and other vehicles
- Position: Rear right
- Material: Aluminum
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side under braking, fluid at the caliper or pads that wear unevenly. A collapsed brake hose, binding slide pins or a worn rotor can be behind those signs too, so find the cause before you buy a caliper.
Fits
It fits the 1998-2002 Chevrolet Camaro and the 1998-2002 Pontiac Firebird. This listing is one caliper for the rear right of the 1998-2002 Chevrolet Camaro; the rear left is its own part and is ordered separately, and the two are normally replaced together.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Piston diameter: 1.772 in (45.0088 mm)
- Mounting hole diameter: 0.483 in (12.26337 mm)
- Inlet: banjo fitting, M10x1.0 thread, 0.394 in (10.00366 mm) port
- Bleeder thread size: M10x1.5
Build and materials
- Type: Floating, unloaded, remanufactured
- Caliper casting material: Aluminum
- Piston: 1, aluminum
- Finish: Oil emulsion
- Rust-resistant coating: Yes
- Country of origin: Mexico
In the box
One remanufactured brake caliper with its mounting bracket, a hardware kit (abutment clips, anti-rattle spring, bleeder screw and dust boots) and an instruction sheet. Brake pads, a pad wear sensor, mounting bolts and a bleeder screw cap are not included, so plan on new mounting bolts.
Installation notes
- A plastic cap plug covers every brake port thread.
- No programming is required.
- The instruction sheet in the box gives the steps.
Interchange: 10277026 · 10430187 · 12455128 · 88955423
This part cross-references / interchanges with the following part numbers:
10277026, 10430187, 12455128, 88955423
Frequently Asked Questions
Is this the brake caliper for the rear right of a 1998-2002 Chevrolet Camaro?
Yes. A1 CARDONE 18-B4697 is the rear right caliper for the 1998-2002 Chevrolet Camaro and also fits the 1998-2002 Pontiac Firebird. The rear left side is a separate part.
Is this A1 CARDONE brake caliper new or remanufactured?
It is remanufactured. A1 CARDONE 18-B4697 is rebuilt with brand-new components, including new EPDM rubber seals and a new bleeder screw, and each unit is 100% pressure-tested.
Does this disc brake caliper come with brake pads?
No. This caliper is sold unloaded. It comes with the bracket, hardware kit and instruction sheet, but not brake pads, a pad wear sensor or mounting bolts.
What size is the piston and the inlet fitting on this caliper?
The piston is 1.772 in (45.0088 mm) across. The inlet is a banjo fitting with an M10x1.0 thread, and the bleeder thread is M10x1.5.
What grease goes on the mounting pins of a floating caliper like this one?
Silicone grease is used on floating caliper mounting pins. A1 CARDONE 18-B4697 is a floating-type caliper, so that applies to its pins.
