Remanufactured Rear Left Brake Caliper for 2003-2005 Saab 9-3 - A1 CARDONE 19-B2913

$138.99

Vehicles this part fits

    Part number: 19-B2913
    UPC: 082617708425
    Weight: 6.10 LBS
    Item Package Quantity: 1
    $138.99
    Adding to cart… The item has been added

    Have questions?

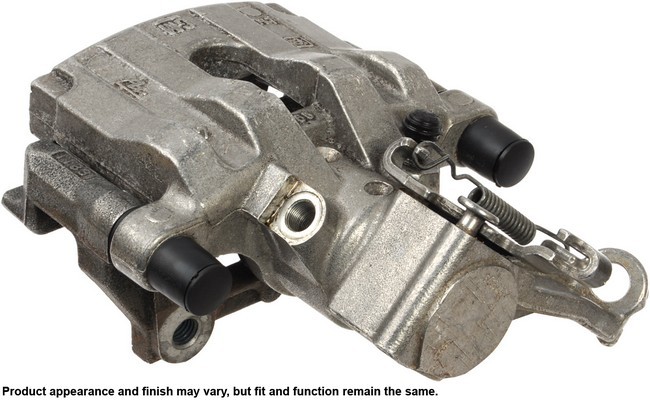

    CARDONE Reman Disc Brake Caliper P/N:19-B2913
    CARDONE Reman Disc Brake Caliper P/N:19-B2913
    $138.99
    $138.99

    A1 CARDONE 19-B2913 rear left brake caliper for the 2003-2005 Saab 9-3 clamps the pads against the rotor to slow the wheel. This remanufactured unit, also called a disc brake caliper, arrives without pads and with its bracket.

    • 100% pressure-tested
    • Steel piston resists cracking and pitting and handles heavy loads
    • Rubber seals replaced with new high-temperature EPDM rubber
    • Body treated with a specially formulated rust inhibitor
    • New bleeder screw for trouble-free bleeding and a positive seal
    • Plastic cap plug on every brake port thread

    Quick facts

    • Part: A1 CARDONE 19-B2913 brake caliper
    • Also called: disc brake caliper
    • Fits: 2003-2005 Saab 9-3
    • Position: Rear left
    • Material: Aluminum caliper casting
    • Condition: Remanufactured

    A sticking or leaking caliper can show up as the car pulling to one side under braking, a low pedal or fluid near the wheel. Collapsed brake hoses and binding slide pins produce comparable symptoms, so during the brake service look the hoses, slides and pins over for damage or sticking before you replace the caliper.

    Fits

    This caliper is a direct-fit replacement for the rear left of the 2003-2005 Saab 9-3.

    Specifications

    Fit and size

    • Position: Rear left
    • Quantity per application: 1
    • Piston quantity: 1
    • Piston diameter: 39.9288 mm (1.572 in)
    • Inlet port size: 11.98408 mm (0.472 in), inverted flare fitting, M12x1.0 thread
    • Mounting hole diameter: 11.98408 mm (0.472 in)
    • Mounting hole thread diameter: 11.98408 mm (0.472 in)
    • Mounting hole thread size: M12x1.75
    • Bleeder thread size: M10x1.0

    Build and materials

    • Caliper type: Floating
    • Condition: Remanufactured
    • Casting material: Aluminum
    • Piston material: Steel
    • Finish: Oil emulsion, with a rust-resistant coating
    • Casting numbers: 634 ATE, 991
    • Country of origin: Mexico

    In the box

    One rear left caliper with its bracket, hardware kit, anti-rattle spring, dust boots, new bleeder screw and an instruction sheet. Brake pads, mounting bolts, abutment clips and a bleeder screw cap are not included, so plan on new mounting bolts rather than reusing the old ones. This listing is one caliper and the rear left takes one; the rear right side is a separate part ordered on its own, and both sides are normally replaced together.

    Installation notes

    • The instruction sheet in the box covers the steps.
    • A silicone grease is used on floating caliper mounting pins.
    • Use the brake fluid the vehicle maker recommends, shown on the master cylinder reservoir lid, from a new sealed container.

    Interchange: 93172186

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    93172186

    Frequently Asked Questions

    Is this a rear brake caliper for the 2003-2005 Saab 9-3?

    Yes. A1 CARDONE 19-B2913 is the rear left brake caliper for the 2003-2005 Saab 9-3. The rear right side is a separate part.

    Does the A1 CARDONE caliper come with a mounting bracket and hardware?

    Yes. It comes with the bracket, a hardware kit, anti-rattle spring, dust boots and a new bleeder screw. Brake pads and mounting bolts are not included.

    Is the piston on this A1 CARDONE brake caliper steel or phenolic?

    The piston is steel. A1 CARDONE 19-B2913 is a floating caliper with one piston, 39.9288 mm (1.572 in) in diameter, in an aluminum casting.

    Can a sticking rear left caliper make the car pull to one side?

    It can, but a pull under braking can also come from a collapsed brake hose or worn steering and suspension parts. Have it inspected promptly, since brakes are a safety system.

    Does this caliper replace the number 93172186?

    Yes. 93172186 is listed as an interchange number for A1 CARDONE 19-B2913, a remanufactured rear left caliper.
