Remanufactured Front Right Brake Caliper for 2002-2008 Jaguar X-Type & More - A1 CARDONE 19-B3213

$75.99

Vehicles this part fits

    Part number: 19-B3213
    UPC: 082617781992
    Weight: 10.00 LBS
    Item Package Quantity: 1
    $75.99
    Adding to cart… The item has been added

    Have questions?

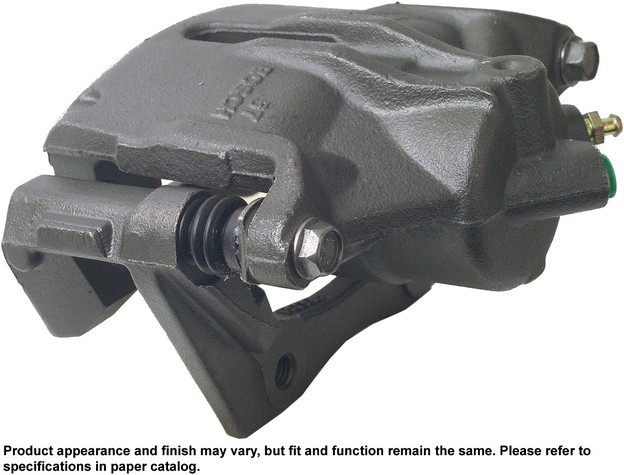

    CARDONE Reman Disc Brake Caliper P/N:19-B3213
    CARDONE Reman Disc Brake Caliper P/N:19-B3213
    $75.99
    $75.99

    A1 CARDONE 19-B3213 front right brake caliper for the 2002-2008 Jaguar X-Type and other vehicles clamps the brake pads against the rotor to slow the wheel. It is a remanufactured, unloaded floating caliper supplied with its bracket.

    • Remanufactured with new components and 100% pressure-tested
    • Steel piston resistant to cracking and pitting, and able to handle great loads
    • New high temperature EPDM rubber seals
    • Treated with a specially formulated rust inhibitor
    • New bleeder screw for trouble-free bleeding and a positive seal
    • Plastic cap plug on every brake port thread

    Quick facts

    • Part: A1 CARDONE 19-B3213 brake caliper
    • Also called: disc brake caliper
    • Fits: 2002-2008 Jaguar X-Type and other vehicles
    • Position: Front right
    • Material: Cast iron
    • Condition: Remanufactured

    A car that pulls to one side under braking, leaks fluid near the caliper or seems to drag can have a worn caliper. Those signs alone do not prove the caliper is the problem, since a collapsed brake hose is another common cause.

    Fits

    It fits the 2002-2008 Jaguar X-Type and the 2001-2007 Ford Mondeo. The front axle carries one caliper per side. This listing is one caliper for the front right, the front left is a separate part, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front right
    • Quantity for this position: 1
    • Piston quantity: 1
    • Piston diameter: 56.896 mm (2.24 in)
    • Mounting hole diameter: 11.98408 mm (0.472 in), thread M12x1.75
    • Inlet port size: 10.00366 mm (0.394 in), thread M10x1.0, inverted flare fitting
    • Bleeder thread size: M10x1.0

    Build and materials

    • Type: floating, unloaded (no pads)
    • Condition: remanufactured
    • Caliper casting material: cast iron
    • Piston material: steel
    • Finish: oil emulsion with a rust resistant coating
    • Country of origin: Mexico

    In the box

    One caliper with its mounting bracket, a hardware kit with stainless steel clips and mounting pins where applicable, a bleeder screw and an instruction sheet. Brake pads, a pad wear sensor and mounting bolts are not included, so plan on new mounting bolts rather than reusing the old ones.

    Installation notes

    • An instruction sheet comes with the caliper for the steps.
    • A silicone grease is used on floating caliper mounting pins.
    • Use the brake fluid the vehicle maker recommends, from a new sealed container.

    Interchange: 1S712B294AC · C2S12636 · C2S12637 · C2S48019

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    1S712B294AC, C2S12636, C2S12637, C2S48019

    Frequently Asked Questions

    Do these 2002-2008 Jaguar X-Type calipers fit the front right position?

    Yes. A1 CARDONE 19-B3213 is the front right caliper for the 2002-2008 Jaguar X-Type. The front left side is a separate part.

    Does this A1 CARDONE caliper come with the bracket and hardware?

    Yes. A1 CARDONE 19-B3213 includes the mounting bracket, a hardware kit, a bleeder screw and an instruction sheet. Pads, a pad wear sensor and mounting bolts are not included.

    How big is the piston on this A1 CARDONE brake caliper?

    This floating caliper has one steel piston, 56.896 mm (2.24 in) across. The inlet port thread is M10x1.0.

    What grease goes on the mounting pins of this floating caliper?

    Use a silicone grease on the mounting pins of a floating caliper like this one. The instruction sheet that comes with the caliper gives the installation steps.

    Which brake fluid should I use with this disc brake caliper?

    Use the fluid the vehicle manufacturer recommends; its type is stamped on the master cylinder reservoir lid. Always pour it from a new, sealed container.
