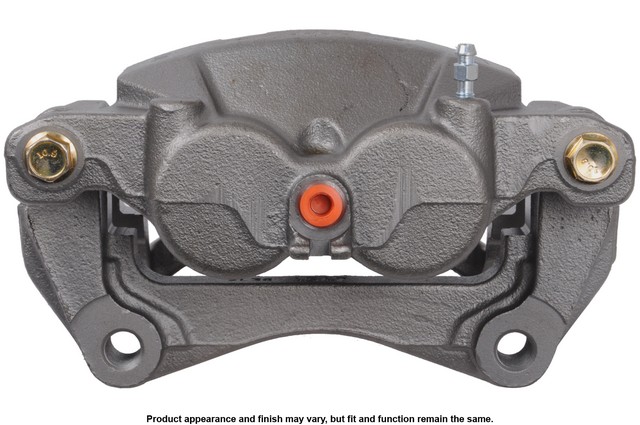

A1 CARDONE 19-B7147 front right brake caliper for the 2014-2019 Nissan Rogue and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper is a floating, unloaded design that comes with its bracket.
- Two steel pistons that resist cracking and pitting and handle heavy loads
- Rubber seals replaced with new high temperature EPDM rubber
- Treated with a specially formulated rust inhibitor
- New stainless steel hardware clips and new mounting pins included where applicable
- Each A1 CARDONE brake caliper is 100% pressure-tested
Quick facts
- Part: A1 CARDONE 19-B7147 brake caliper
- Also called: disc brake caliper
- Fits: 2014-2019 Nissan Rogue and other vehicles
- Position: Front right
- Material: Cast iron caliper, steel pistons
- Condition: Remanufactured
Pulling to one side under braking, brake fluid around the caliper or a pad that wears faster on one wheel can mean a caliper is sticking or leaking. Before you replace this caliper, rule out a collapsed brake hose, sticky slide pins and the pad on that wheel, since each can affect the brakes in a similar way.
Fits
This is a brake caliper for the 2014-2019 Nissan Rogue, and the vehicles it fits include the 2014-2023 Infiniti Q50 and the 2023 Nissan Z. Each front wheel takes one caliper. This listing is the front right, so the front left is a separate part ordered on its own, and the two are normally replaced together.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Piston diameter: 44.3484 mm (1.746 in)
- Inlet port size: 10.00366 mm (0.394 in)
- Inlet fitting: banjo, M10x1.0 thread
- Mounting hole diameter: 13.98989 mm (0.551 in), M14 X 1.5 thread
- Bleeder thread size: M7x1.0
Build and materials
- Caliper type: Floating, 2 pistons
- Condition: Remanufactured
- Caliper material: Cast iron
- Piston material: Steel
- Finish: Oil emulsion, with a rust-resistant coating
- Country of origin: Mexico
In the box
One front right brake caliper with its bracket, a hardware kit and an instruction sheet. Brake pads and a pad wear sensor are not included. Mounting bolts are not included either, so plan on new ones.
Installation notes
- The instruction sheet in the box covers the steps.
- A new bleeder screw is supplied for bleeding, and a plastic cap plug protects each brake port thread.
- Floating caliper mounting pins take silicone grease.
- Use the brake fluid type stamped on the master cylinder reservoir lid, from a new sealed container.
Interchange: 410014GA0A
