Remanufactured Engine Control Module (Ecm) for 1999-2000 Ford Ranger & More - A1 CARDONE 78-8965F

$255.99

Vehicles this part fits

    Part number: 78-8965F
    UPC: 082617735124
    Weight: 2.00 LBS
    Item Package Quantity: 1
    $255.99
    Adding to cart… The item has been added

    Have questions?

    CARDONE Reman Engine Control Module (ECM) P/N:78-8965F
    CARDONE Reman Engine Control Module (ECM) P/N:78-8965F
    $255.99
    $255.99

    A1 CARDONE 78-8965F engine control module (ecm) for the 1999-2000 Ford Ranger V6 3.0L and other vehicles is a remanufactured unit that controls the engine.

    • Reverse engineering of the original failure to identify and correct design weaknesses
    • Critical components re-soldered or replaced at the Philadelphia manufacturing plant
    • Re-soldered connections help prevent intermittent failures
    • Each unit tested with automated computer equipment or on the bench, depending on application
    • On-car vehicle validation to test durability and performance
    • Remanufacturing reduces the energy and raw material needed to make a new part by 80%

    Quick facts

    • Part: A1 CARDONE 78-8965F engine control module (ecm)
    • Fits: 1999-2000 Ford Ranger V6 3.0L and other vehicles
    • Condition: Remanufactured

    A failing module can show up as a check engine light that stays on after a reset, the engine shutting off for no reason or intermittent starting trouble. Before you replace the module, rule out poor grounds and power, a bad wiring harness and short-circuited solenoids or relays, which are common causes of original-module failure.

    Fits

    This module fits the 1999-2000 Ford Ranger V6 3.0L, the 1999-2000 Ford F-100 Ranger V6 3.0L and the 1999-2000 Mazda B3000 V6 3.0L, and each of them takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1

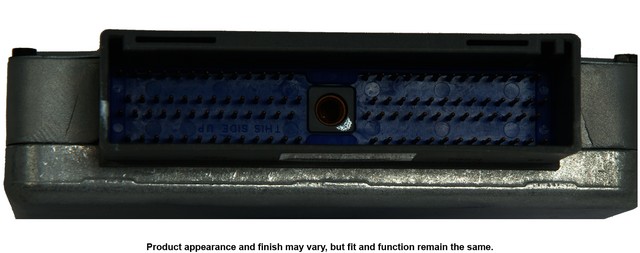

    • Terminals: 104 male pin terminals
    • Connector: 1 female connector, rectangular
    • Length: 8 in
    • Width: 154.94 mm (6.1 in)
    • Height: 1.6 in

    Build and materials

    • Condition: Remanufactured
    • Grade: Standard Replacement
    • Flashable: Yes
    • Removable PROM: No
    • Country of origin: Mexico

    In the box

    One remanufactured module and one instruction sheet. Mounting hardware is not included, and the old hardware may not be reusable.

    Installation notes

    • The module should be properly flash programmed for the vehicle.
    • Where the vehicle has Ford's passive anti-theft system, an on-car relearn is needed; the PATS chart on the O.E. manufacturer's service site shows whether your application requires a reset.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the A1 CARDONE 78-8965F work in a 1999-2000 Mazda B3000 V6 3.0L?

    Yes. The A1 CARDONE 78-8965F fits the 1999-2000 Mazda B3000 V6 3.0L as well as the 1999-2000 Ford Ranger V6 3.0L.

    Yes. A1 CARDONE 78-8965F fits the 1999-2000 Mazda B3000 V6 3.0L, and that vehicle takes one module.

    Does this remanufactured ECM come with mounting hardware?

    No. The box holds the module and an instruction sheet. Mounting hardware is not included.

    No. The box holds the module and an instruction sheet; mounting hardware is not included.

    Does the 78-8965F module come with mounting hardware?

    No. The box holds the module and an instruction sheet. Mounting hardware is not included.

    No. The box holds the module and an instruction sheet; mounting hardware is not included.

    How many terminals does the A1 CARDONE 78-8965F connector have?

    The A1 CARDONE 78-8965F has one rectangular female connector with 104 male pin terminals.

    A1 CARDONE 78-8965F has 104 male pin terminals in one rectangular female connector.

    How many terminals does the connector on this control module have?

    The A1 CARDONE 78-8965F has one rectangular female connector with 104 male pin terminals.

    A1 CARDONE 78-8965F has 104 male pin terminals in one rectangular female connector.

    Does every Ford ECM swap need a PATS reset?

    No. Not all Ford vehicles need one. Those with the passive anti-theft system need an on-car relearn, and the PATS chart on the O.E. manufacturer's service site shows your application.

    Yes, it can. Loss of spark, loss of fuel injection and loss of pulse on the fuel pump are signs a shop can test the module for, though other faults can cause them too.

    Can loss of spark or fuel injection come from a bad engine control module?

    No. Not all Ford vehicles need one. Those with the passive anti-theft system need an on-car relearn, and the PATS chart on the O.E. manufacturer's service site shows your application.

    Yes, it can. Loss of spark, loss of fuel injection and loss of pulse on the fuel pump are signs a shop can test the module for, though other faults can cause them too.

    Is an ECM the same as a PCM?

    No. ECM stands for Electronic Control Module and PCM for Powertrain Control Module. Both control the engine, but a PCM also controls the transmission.

    No, not on every application. Some GM applications have a knock module, and some older Ford applications have a calibration module, that must be transferred to the replacement.

    Do I have to move anything from my old engine control module to the replacement?

    No. ECM stands for Electronic Control Module and PCM for Powertrain Control Module. Both control the engine, but a PCM also controls the transmission.

    No, not on every application. Some GM applications have a knock module, and some older Ford applications have a calibration module, that must be transferred to the replacement.

    Frequently Asked Questions

    Does this A1 CARDONE ecm fit the 1999-2000 Mazda B3000 V6 3.0L?

    Yes. The A1 CARDONE 78-8965F fits the 1999-2000 Mazda B3000 V6 3.0L as well as the 1999-2000 Ford Ranger V6 3.0L.

    Yes. A1 CARDONE 78-8965F fits the 1999-2000 Mazda B3000 V6 3.0L, and that vehicle takes one module.

    Does this remanufactured ECM come with mounting hardware?

    No. The box holds the module and an instruction sheet. Mounting hardware is not included.

    No. The box holds the module and an instruction sheet; mounting hardware is not included.

    Does the 78-8965F module come with mounting hardware?

    No. The box holds the module and an instruction sheet. Mounting hardware is not included.

    No. The box holds the module and an instruction sheet; mounting hardware is not included.

    How many terminals does the A1 CARDONE 78-8965F connector have?

    The A1 CARDONE 78-8965F has one rectangular female connector with 104 male pin terminals.

    A1 CARDONE 78-8965F has 104 male pin terminals in one rectangular female connector.

    How many terminals does the connector on this control module have?

    The A1 CARDONE 78-8965F has one rectangular female connector with 104 male pin terminals.

    A1 CARDONE 78-8965F has 104 male pin terminals in one rectangular female connector.

    Does every Ford ECM swap need a PATS reset?

    No. Not all Ford vehicles need one. Those with the passive anti-theft system need an on-car relearn, and the PATS chart on the O.E. manufacturer's service site shows your application.

    Yes, it can. Loss of spark, loss of fuel injection and loss of pulse on the fuel pump are signs a shop can test the module for, though other faults can cause them too.

    Can loss of spark or fuel injection come from a bad engine control module?

    No. Not all Ford vehicles need one. Those with the passive anti-theft system need an on-car relearn, and the PATS chart on the O.E. manufacturer's service site shows your application.

    Yes, it can. Loss of spark, loss of fuel injection and loss of pulse on the fuel pump are signs a shop can test the module for, though other faults can cause them too.

    Is an ECM the same as a PCM?

    No. ECM stands for Electronic Control Module and PCM for Powertrain Control Module. Both control the engine, but a PCM also controls the transmission.

    No, not on every application. Some GM applications have a knock module, and some older Ford applications have a calibration module, that must be transferred to the replacement.

    Do I have to move anything from my old engine control module to the replacement?

    No. ECM stands for Electronic Control Module and PCM for Powertrain Control Module. Both control the engine, but a PCM also controls the transmission.

    No, not on every application. Some GM applications have a knock module, and some older Ford applications have a calibration module, that must be transferred to the replacement.
