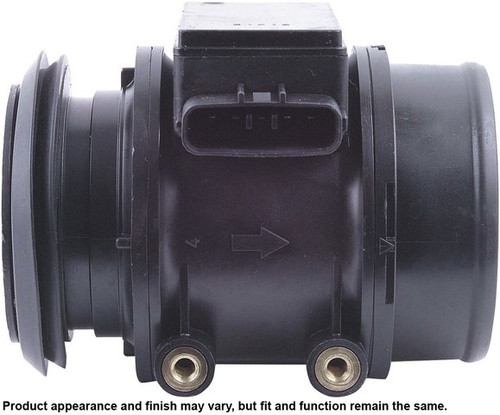

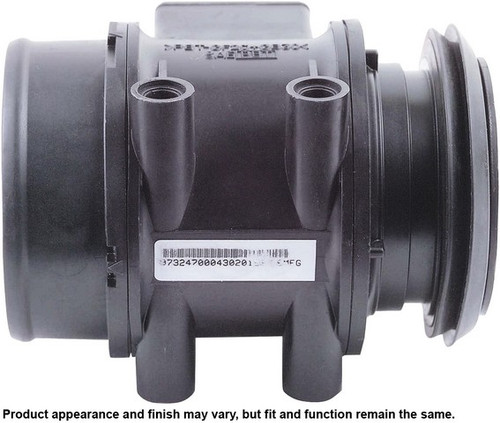

A1 CARDONE 74-10039 mass air flow sensor for the 1994 Toyota Camry V6 3.0L and other vehicles measures the air entering the engine. This remanufactured A1 CARDONE mass air flow sensor reports that airflow to the engine control system.
- 100% re-soldering of critical components for secure electrical connections and longer product life
- Output curve and spec tolerances held for accurate feedback to the engine control system and accurate scan tool readings
- On-car validation routines check form, fit, durability and performance
- 100% tested on automated computer test equipment for full functionality
- Components rated to handle demanding temperature variations
Quick facts
- Part: A1 CARDONE 74-10039 mass air flow sensor
- Fits: 1994 Toyota Camry V6 3.0L and other vehicles
- Material: Plastic housing
- Condition: Remanufactured
Hesitation, stalling, poor fuel economy or poor engine performance can be signs of a failing mass air flow sensor. A vacuum leak, worn spark plugs or a weak fuel pump can also be behind those symptoms, so find out what is actually wrong before you buy a sensor.
Fits
As a mass air flow sensor for the 1994 Lexus ES300 V6 3.0L, it also fits the 1994 Toyota Camry V6 3.0L and the 1994-1996 Toyota Previa 4-cylinder 2.4L. This listing is one sensor; the 1994 Toyota Camry V6 3.0L takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet connection diameter: 71.12 mm (2.8 in)
- Outlet connection diameter: 68.6 mm (2.8 in)
- Mounting holes: 2
- Mounting type: bolt-on, hose clamp
- Connector: 1 rectangular male connector with 5 male pin terminals
Build and materials
- Housing material: plastic
- Contains a circuit board
- Condition: remanufactured
- Country of origin: Mexico
In the box
One mass air flow sensor and one instruction sheet. Mounting hardware, a mounting bracket and a wiring harness are not included, so plan on new mounting hardware, since the old pieces may not be reusable.
Interchange: 2225020010 · 2225020030
Frequently Asked Questions
Is this maf sensor right for a 1994 Toyota Camry V6 3.0L?
Yes. A1 CARDONE 74-10039 is listed for the 1994 Toyota Camry V6 3.0L, and that engine takes one sensor.
Will this air flow sensor for the 1994 Toyota Camry V6 3.0L also fit the 1994-1996 Toyota Previa 4-cylinder 2.4L?
Yes. A1 CARDONE 74-10039 is also listed for the 1994-1996 Toyota Previa 4-cylinder 2.4L, and that engine takes one.
Does the mass air flow sensor come with a wiring harness or bracket?
No. The package holds the remanufactured sensor and an instruction sheet. The mounting bracket, mounting hardware and wiring harness are not included.
What size are the inlet and outlet connections on this remanufactured sensor?
The inlet connection measures 71.12 mm (2.8 in) and the outlet connection measures 68.6 mm (2.8 in).
How can I tell if a mass air flow sensor is damaged?
With the engine off and cool, look at the sensor element for damage and note any burnt smell. A scanner can read stored trouble codes, and a shop can test the sensor further.
