Remanufactured Mass Air Flow Sensor for 2008-2009 Chevrolet Equinox & More - A1 CARDONE 74-10160

$140.99

Vehicles this part fits

    Part number: 74-10160
    UPC: 082617827058
    Weight: 0.97 LBS
    Item Package Quantity: 1
    $140.99
    Adding to cart… The item has been added

    Have questions?

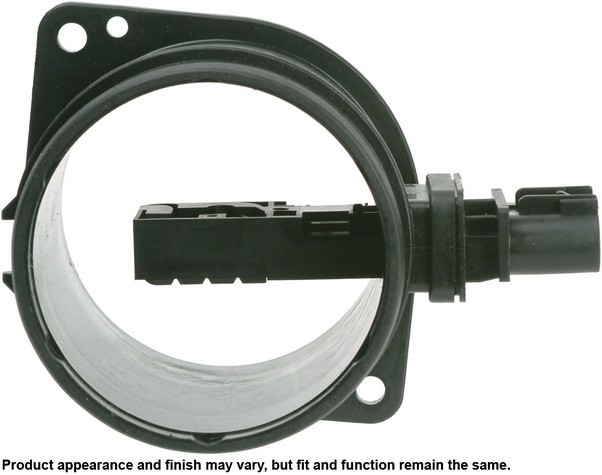

    CARDONE Reman Mass Air Flow Sensor P/N:74-10160
    CARDONE Reman Mass Air Flow Sensor P/N:74-10160
    $140.99
    $140.99

    A1 CARDONE 74-10160 mass air flow sensor for the 2008-2009 Chevrolet Equinox V6 3.6L and other vehicles measures incoming air for the engine control system. This A1 CARDONE mass air flow sensor is remanufactured to track O.E. output curves within spec tolerances, so scan tool readings stay accurate.

    • Critical components 100% re-soldered for sound electrical connections and no intermittent failures
    • On-car vehicle validation routines test each sensor against form, durability and performance requirements
    • Every sensor 100% tested on automated computer test equipment for full functionality
    • Components rated to handle demanding temperature variations
    • Remanufacturing process cuts the energy and raw material needed to make a new part by 80%

    Quick facts

    • Part: A1 CARDONE 74-10160 mass air flow sensor
    • Fits: 2008-2009 Chevrolet Equinox V6 3.6L and other vehicles
    • Material: Plastic housing
    • Condition: Remanufactured

    A failing mass air flow sensor can bring hesitation, stalling or poor fuel economy. Other faults can give the same trouble, so with the engine off and cool, look the sensor element over for damage or a burnt smell and read any stored trouble codes before you replace it. The 2008-2009 Chevrolet Equinox V6 3.6L takes one sensor.

    Fits

    As a remanufactured original equipment part, this mass air flow sensor is a direct fit for the 2008-2009 Chevrolet Equinox V6 3.6L, the 2009-2011 Chevrolet Traverse V6 3.6L and the 2009-2011 GMC Acadia V6 3.6L. It also fits a wide range of Buick, Cadillac, Pontiac, Saturn and Suzuki models.

    Specifications

    Fit and size

    • Inlet diameter: 3.4 in (86.36 mm)
    • Quantity per vehicle: 1
    • Mounting type: Bolt-on, hose clamp
    • Mounting holes: 3
    • Connector: 1 rectangular male connector, 5 male pin terminals

    Build and materials

    • Sensor type: Resistor
    • Housing material: Plastic
    • Electronic components: Circuit board
    • Condition: Remanufactured
    • Country of origin: Mexico

    In the box

    One mass air flow sensor and one instruction sheet. Mounting hardware, a mounting bracket and a wiring harness are not included; plan on new mounting hardware, since the old pieces may not be reusable.

    Interchange: 15875837 · 1380078J00 · 1380078J01

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    15875837, 1380078J00, 1380078J01

    Frequently Asked Questions

    Is this the Chevy Equinox mass air flow sensor for the 2008-2009 model with the V6 3.6L?

    Yes. The A1 CARDONE 74-10160 fits the 2008-2009 Chevrolet Equinox V6 3.6L, which takes one sensor; if your vehicle is a different model, look it up in the "Vehicles it fits" section.

    Does this mass air flow sensor fit a 2009-2011 GMC Acadia V6 3.6L?

    Yes. The A1 CARDONE 74-10160 is a direct fit for the 2009-2011 GMC Acadia V6 3.6L, and that vehicle takes one sensor.

    How big is the inlet on this remanufactured mass air flow sensor?

    This mass air flow sensor has a 3.4 in (86.36 mm) inlet diameter, and its mounting type is bolt-on with a hose clamp.

    How many terminals are on this mass air flow sensor's connector?

    This mass air flow sensor has one rectangular male connector with 5 male pin terminals. A wiring harness is not included.

    Are the solder joints redone on this remanufactured CARDONE sensor?

    Yes. Critical components on this remanufactured mass air flow sensor are 100% re-soldered for sound electrical connections, and every unit is tested on automated computer test equipment.
