Remanufactured Power Steering Pump for 2002-2004 Ford Explorer & More - A1 CARDONE 20-290

$96.99
Sold out

Vehicles this part fits

    Part number: 20-290
    UPC: 082617614078
    Weight: 6.00 LBS
    Item Package Quantity: 1
    $96.99

    Out of stock

    Have questions?

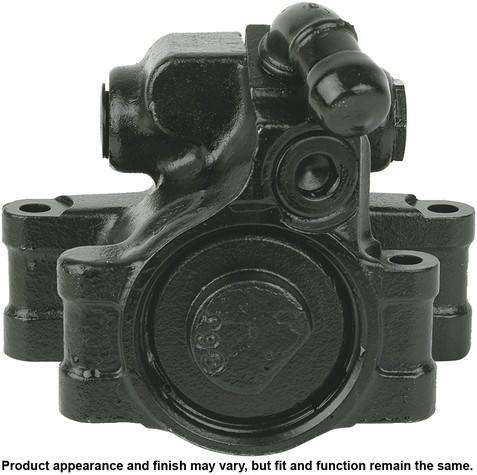

    CARDONE Reman Power Steering Pump P/N:20-290
    CARDONE Reman Power Steering Pump P/N:20-290
    $96.99
    $96.99

    A1 CARDONE 20-290 power steering pump for the 2002-2004 Ford Explorer and other vehicles is a remanufactured unit that builds hydraulic pressure for steering assist.

    • Every unit goes through a hydraulic efficiency test
    • Critical components such as campacs and spool valves are triple-tested
    • 100% new O-rings and HNBR seals to prevent leaks, with HNBR holding up at high temperatures
    • Shafts are surfaced to precise specifications to limit premature seal wear
    • Pressure relief valves are 100% tested and calibrated
    • Final pump assembly is computer-tested for pressure, bypass, fluid flow, valve operation, steering effort and noise

    Quick facts

    • Part: A1 CARDONE 20-290 power steering pump
    • Fits: the 2002-2004 Ford Explorer and other vehicles
    • Material: Cast iron housing
    • Condition: Remanufactured

    A whining noise, heavy steering or fluid leaking at the pump can mean the pump is wearing out. These signs alone do not prove the pump is the problem; a binding steering component can make steering hard too.

    Fits

    It is a 2002-2004 Ford Explorer power steering pump replacement and also fits the 2002-2004 Mercury Mountaineer.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet diameter: 17.55 mm (0.691 in)
    • Outlet thread size: 16x1.5
    • Hose port type: O-ring
    • Inlet attachment type: Barb
    • Outlet attachment type: Threaded

    Build and materials

    • Condition: Remanufactured
    • Housing material: Cast iron
    • Shaft type: Press-on
    • Pulley belt type: Serpentine
    • Remote reservoir: Yes
    • Country of origin: Mexico

    In the box

    This listing is one power steering pump with a sealing kit and an instruction sheet, and each vehicle takes one. The pulley, reservoir, reservoir cap, filter and mounting hardware are not included, so plan on new mounting bolts rather than reusing the old ones.

    Installation notes

    • An instruction sheet comes with the pump for the steps.
    • A pulley that cracked on removal or fits loosely on the shaft must be replaced.

    Interchange: 1L2Z3A674BCRM · 1L2Z3A674BDRM · 3L2Z3A674BARM

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    1L2Z3A674BCRM, 1L2Z3A674BDRM, 3L2Z3A674BARM

    Frequently Asked Questions

    Is this a 2002-2004 Ford Explorer power steering pump?

    Yes. A1 CARDONE 20-290 is listed for the 2002-2004 Ford Explorer and also for the 2002-2004 Mercury Mountaineer, with one pump per vehicle.

    Does this remanufactured power steering pump come with a pulley?

    No. The pulley, reservoir, reservoir cap, filter and mounting hardware are not included. The box holds the pump, a sealing kit and an instruction sheet.

    What are the inlet and outlet connections on the A1 CARDONE power steering pump?

    The A1 CARDONE 20-290 has a barb inlet of 17.55 mm (0.691 in) and a threaded 16x1.5 outlet with an O-ring hose port. It uses a remote reservoir, which is not included.

    Why is steering still hard in one direction after installing a replacement pump?

    Binding steering components can cause it, because the pump does not know left from right. A shop can check those parts and repair what is binding.

    Does 1L2Z3A674BCRM cross to this remanufactured pump?

    Yes. 1L2Z3A674BCRM is one of the numbers A1 CARDONE 20-290 replaces, along with 1L2Z3A674BDRM and 3L2Z3A674BARM.
