Remanufactured Power Steering Pump for 2003-2006 Ford Focus - A1 CARDONE 20-314

$124.99

Vehicles this part fits

    Part number: 20-314
    UPC: 082617660990
    Weight: 6.00 LBS
    Item Package Quantity: 1
    $124.99
    Adding to cart… The item has been added

    Have questions?

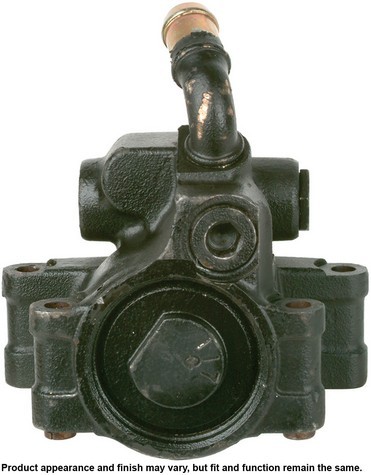

    CARDONE Reman Power Steering Pump P/N:20-314
    CARDONE Reman Power Steering Pump P/N:20-314
    $124.99
    $124.99

    A1 CARDONE 20-314 power steering pump for the 2003-2006 Ford Focus sends pressurized fluid to the steering system to assist steering. This is a remanufactured unit that works with a remote reservoir.

    • Every unit goes through a hydraulic efficiency test
    • Campacs, spool valves and other critical components are triple-tested
    • 100% new O-rings and HNBR seals; HNBR holds up at high temperatures where conventional seal material breaks down
    • Shafts are surfaced to precise specifications to limit premature seal wear and extend pump life
    • Pressure relief valve is tested and calibrated
    • Final assembly is computer-tested for pressure, bypass, fluid flow, valve operation, steering effort and noise

    Quick facts

    • Part: A1 CARDONE 20-314 power steering pump
    • Fits: 2003-2006 Ford Focus
    • Material: Cast iron (housing)
    • Condition: Remanufactured

    A whining noise, heavy steering or fluid leaking from the pump can mean it is wearing out. These signs alone do not prove the pump is at fault, since a binding steering component can produce hard steering too.

    Fits

    This power steering pump is a direct-fit replacement for the 2003-2006 Ford Focus.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet diameter: 19.96 mm (0.786 in)
    • Outlet thread size: 16x1.5
    • Hose port type: O-ring
    • Inlet attachment: barb
    • Outlet attachment: threaded
    • Shaft type: press-on
    • Pulley belt type: serpentine
    • Remote reservoir: yes

    Build and materials

    • Condition: Remanufactured
    • Housing material: cast iron
    • Country of origin: Mexico

    In the box

    One power steering pump, an instruction sheet and a sealing kit. This listing is one power steering pump, and the 2003-2006 Ford Focus takes one. The reservoir, reservoir cap, pulley, filter and mounting hardware are not included, and the old bolts may not be reusable, so plan on new ones.

    Installation notes

    • An instruction sheet comes with the pump for the installation steps.
    • If the original pulley cracks on removal, it must be replaced.

    Interchange: 3S4Z3A674AA · 4S4Z3A674AA · 5S4Z3A674A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    3S4Z3A674AA, 4S4Z3A674AA, 5S4Z3A674A

    Frequently Asked Questions

    Is this a power steering pump replacement for the 2003-2006 Ford Focus?

    Yes. A1 CARDONE 20-314 is a direct-fit replacement for the 2003-2006 Ford Focus, which takes one pump.

    Does the A1 CARDONE power steering pump come with a pulley or reservoir?

    No. A1 CARDONE 20-314 comes with the pump, an instruction sheet and a sealing kit. The pulley, reservoir, reservoir cap, filter and mounting hardware are not included.

    What thread size and inlet diameter does this power steering pump have?

    The outlet thread size is 16x1.5, and the inlet diameter is 19.96 mm (0.786 in). The pump has a barb inlet, a threaded outlet and an O-ring hose port.

    Can a whining noise or heavy steering mean this pump is wearing out?

    Yes, a whine, heavy steering or a fluid leak can be signs of pump wear. Look for leaks only with the engine off and cool; a shop can test pump pressure.

    How is this remanufactured pump tested?

    Every pump gets a hydraulic efficiency test. The finished assembly then goes through a computer test of pressure, bypass, fluid flow, valve operation, steering effort and noise.
