Remanufactured Power Steering Pump for 1998-2005 Volkswagen Passat & More - A1 CARDONE 21-5145

$149.99

Vehicles this part fits

    Part number: 21-5145
    UPC: 082617572606
    Weight: 3.30 LBS
    Item Package Quantity: 1
    $149.99
    Adding to cart… The item has been added

    Have questions?

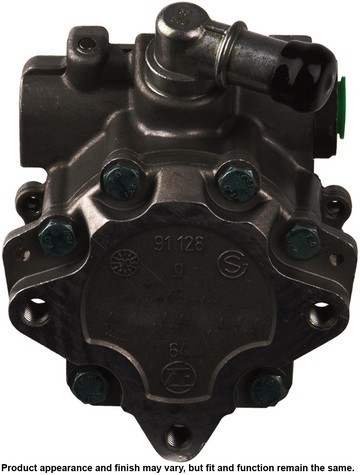

    CARDONE Reman Power Steering Pump P/N:21-5145
    CARDONE Reman Power Steering Pump P/N:21-5145
    $149.99
    $149.99

    A1 CARDONE 21-5145 power steering pump for the 1998-2005 Volkswagen Passat and other vehicles sends pressurized fluid to the steering system to ease turning. This remanufactured A1 CARDONE power steering pump has an aluminum housing.

    • Hydraulic efficiency test on every unit
    • Critical components, including campacs and spool valves, are triple-tested
    • 100% new O-rings and HNBR seals that do not break down at high temperatures
    • Shaft surfaced to precise specifications to eliminate premature seal wear
    • Pressure relief valve is tested and calibrated
    • Final assembly is computer-tested for pressure, bypass, fluid flow, valve operation, steering effort and noise

    Quick facts

    • Part: A1 CARDONE 21-5145 power steering pump
    • Fits: 1998-2005 Volkswagen Passat and other vehicles
    • Material: Aluminum
    • Condition: Remanufactured

    A whine from the pump, stiff steering or a fluid leak can mean the pump is wearing out. These signs alone do not prove the pump is at fault, since a binding steering component can also stiffen the steering.

    Fits

    This power steering pump fits the 1998-2005 VW Passat, the 1999-2002 Audi A4 Quattro and the 2000-2001 Audi A4; each takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet diameter: 17.2212 mm (0.678 in)
    • Inlet attachment: barb
    • Outlet attachment: threaded
    • Outlet thread size: 16x1.5
    • Hose port type: O-ring

    Build and materials

    • Housing material: Aluminum
    • Shaft type: press-on
    • Condition: Remanufactured
    • Country of origin: Mexico

    In the box

    A hydraulic pump, an instruction sheet and a sealing kit. Mounting hardware, reservoir, reservoir cap and filter are not included, so plan on new fasteners.

    Installation notes

    • The shaft is press-on and the pulley is not included; a pulley that cracked during removal, or whose bore was enlarged by a mushroomed shaft, must be replaced.
    • If debris is in the flow control valve bore, the system must be checked for contamination and flushed.

    Interchange: 8D0145156K · 8D0145156KX

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    8D0145156K, 8D0145156KX

    Frequently Asked Questions

    Is this a power steering pump for the 2000-2001 Audi A4?

    Yes. A1 CARDONE 21-5145 is listed for the 2000-2001 Audi A4, which takes one pump. The 1999-2002 Audi A4 Quattro is listed as well.

    Is this a power steering pump replacement for the 1998-2005 VW Passat?

    Yes. A1 CARDONE 21-5145 is listed for the 1998-2005 Volkswagen Passat, and that car takes one pump.

    What size are the inlet and outlet on this power steering pump?

    The inlet is a barb fitting with a 17.2212 mm (0.678 in) diameter. The outlet is threaded, 16x1.5, and the hose port type is O-ring.

    Does this remanufactured pump come with a pulley or reservoir?

    No. The box holds the hydraulic pump, an instruction sheet and a sealing kit. The pulley, reservoir, reservoir cap, filter and mounting hardware are not included.

    What seals does this remanufactured power steering pump use?

    Every unit is built with 100% new O-rings and HNBR seals, and the final assembly is computer-tested for pressure, bypass, fluid flow, valve operation, steering effort and noise.
