Remanufactured Power Steering Pump for 2002-2005 Hyundai Sonata & More - A1 CARDONE 21-5253

$130.99

Vehicles this part fits

    Part number: 21-5253
    UPC: 082617613316
    Weight: 3.50 LBS
    Item Package Quantity: 1
    $130.99
    Adding to cart… The item has been added

    Have questions?

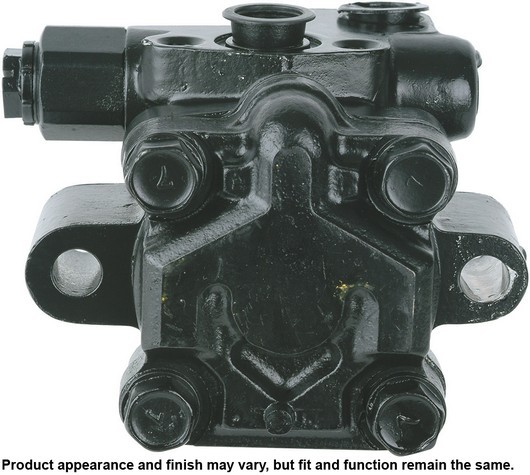

    CARDONE Reman Power Steering Pump P/N:21-5253
    CARDONE Reman Power Steering Pump P/N:21-5253
    $130.99
    $130.99

    A1 CARDONE 21-5253 power steering pump for the 2002-2005 Hyundai Sonata and other vehicles builds the hydraulic pressure that assists steering. It is a remanufactured unit, and the final assembly is computer-tested for pressure, bypass, fluid flow, valve operation, steering effort and noise.

    • 100% new O-rings and HNBR seals to prevent leaks; HNBR does not break down at high temperatures
    • Critical components such as campacs and spool valves are triple-tested
    • Shaft surfaced to precise specifications to limit premature seal wear
    • Pressure relief valve is tested and calibrated
    • Hydraulic efficiency test on every unit

    Quick facts

    • Part: A1 CARDONE 21-5253 power steering pump
    • Fits: 2002-2005 Hyundai Sonata and other vehicles
    • Material: Cast iron/aluminum housing
    • Condition: Remanufactured

    A whining noise, heavy steering or fluid at the pump can mean the pump is wearing out. A binding steering component, a damaged pulley or contaminated fluid can be behind these signs too, so find the cause before buying a pump. A vehicle runs one pump.

    Fits

    This power steering pump is a direct-fit replacement for the 2002-2005 Hyundai Sonata, the 2001-2006 Kia Optima and the 2001-2006 Kia Magentis.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Outlet thread size: 16x1.5
    • Outlet attachment: threaded
    • Inlet attachment: barb, 14.1732 mm (0.558 in) diameter
    • Hose port type: O-ring
    • Shaft type: splined
    • Pulley belt type: serpentine

    Build and materials

    • Housing material: cast iron/aluminum
    • Seals: HNBR
    • Condition: Remanufactured
    • Remote reservoir: yes
    • Country of origin: Mexico

    In the box

    One hydraulic pump, one instruction sheet and one sealing kit. Mounting hardware, pulley, reservoir, reservoir cap and filter are not included.

    Installation notes

    • An instruction sheet comes with the pump for the steps.
    • If debris is found in the flow control valve bore, the system must be checked for contamination and flushed.

    Interchange: 5710026100 · 5710038500

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    5710026100, 5710038500

    Frequently Asked Questions

    Is this A1 CARDONE power steering pump new or remanufactured?

    It is remanufactured. A1 CARDONE 21-5253 is built with 100% new O-rings and HNBR seals, and the final assembly is computer-tested.

    Is this a power steering pump replacement for a 2004 Hyundai Sonata?

    Yes. A1 CARDONE 21-5253 fits the 2002-2005 Hyundai Sonata, so a 2004 model is covered, and the steering system takes one pump.

    Does the A1 CARDONE 21-5253 come with a pulley or reservoir?

    No. The box holds the hydraulic pump, an instruction sheet and a sealing kit. Pulley, reservoir, reservoir cap, filter and mounting hardware are not included.

    What are the hose connection sizes on this power steering pump?

    The outlet is threaded at 16x1.5 with an O-ring hose port. The inlet is a barb with a 14.1732 mm (0.558 in) diameter.

    What if my old pulley fits loosely on this pump's shaft?

    The pulley may have cracked when it was removed, or a mushroomed shaft may have enlarged its bore. In that case the pulley must be replaced; it is not included with the pump.
