Remanufactured Steering Gear for 1999-2001 Ford Expedition & More - A1 CARDONE 27-6567

$272.99

Vehicles this part fits

    Part number: 27-6567
    UPC: 082617574150
    Weight: 26.00 LBS
    Item Package Quantity: 1
    $272.99
    Adding to cart… The item has been added

    Have questions?

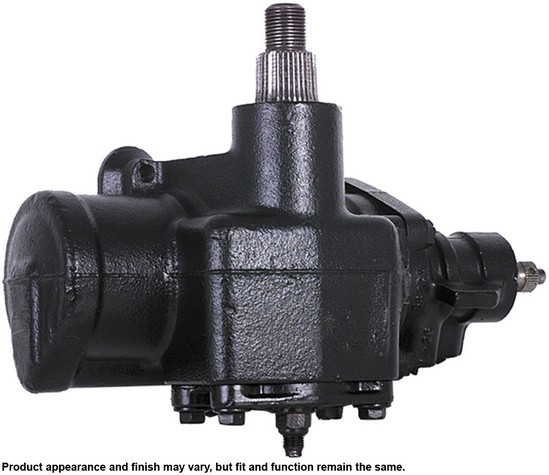

    CARDONE Reman Steering Gear P/N:27-6567
    CARDONE Reman Steering Gear P/N:27-6567
    $272.99
    $272.99

    A1 CARDONE 27-6567 steering gear for the 1999-2001 Ford Expedition and other vehicles turns steering wheel rotation into wheel movement. This remanufactured steering gear is re-engineered, built and tested to match O.E. performance.

    • 100% new O-rings and lip seals for leak-free operation
    • Shafts surfaced to precise specifications to limit premature seal wear and extend gear life
    • 100% hydraulic testing for proper flow, leakage and performance
    • Rust-inhibitive Cool Dip finish that covers all exposed surfaces and will not crack, flake or peel

    Quick facts

    • Part: A1 CARDONE 27-6567 steering gear
    • Fits: 1999-2001 Ford Expedition and other vehicles
    • Condition: Remanufactured

    A worn steering gear can show up as play in the steering wheel or fluid seepage around the housing. Before replacing it, and with the engine off, look over the housing and hose connections for wet spots to see where a leak starts.

    Fits

    This steering gear fits the 1999-2001 Ford Expedition and the 1999-2002 Lincoln Navigator, with one gear needed per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Output shaft diameter: 33.32 mm
    • Output shaft splines: 32
    • Output shaft thread diameter: 21.95 mm (0.864 in)
    • Pressure port thread: 1/2-20, 12.34 mm (0.486 in) diameter
    • Return port thread: 5/8-18, 15.7 mm (0.618 in) diameter
    • Hose port type: O-ring
    • Total turns lock to lock: 3.25

    Build and materials

    • Condition: Remanufactured
    • Power assisted: Yes
    • Splined input shaft: Yes
    • Finish: Rust-inhibitive Cool Dip
    • Country of origin: Mexico

    In the box

    One steering gear, a sealing kit, an instruction sheet and an instruction tag. Mounting hardware is not included, so plan on new fasteners.

    Installation notes

    • Follow the instruction sheet for the installation steps.
    • The preload is adjusted at assembly, and adjusting it is not recommended.
    • Replace the power steering hoses if they look brittle, kinked or leaking.

    Interchange: YL1Z3504BBRM

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    YL1Z3504BBRM

    Frequently Asked Questions

    Is the A1 CARDONE 27-6567 steering gear right for a 1999-2002 Lincoln Navigator?

    Yes. A1 CARDONE 27-6567 fits the 1999-2002 Lincoln Navigator and also the 1999-2001 Ford Expedition. Each takes one steering gear.

    Does this remanufactured steering gear come with a sealing kit?

    Yes. The package has the gear, a sealing kit, an instruction sheet and an instruction tag. Mounting hardware is not included.

    What are the port thread sizes on the A1 CARDONE 27-6567?

    The A1 CARDONE 27-6567 has a 1/2-20 pressure port and a 5/8-18 return port. Both are O-ring hose ports.

    Can I adjust the play out of my old steering gear instead of replacing it?

    No. Adjusting is not recommended: the preload is set at assembly, excess play comes from worn internal parts, and adjusting can lead to binding.

    How is this steering gear protected against rust?

    It has a rust-inhibitive Cool Dip finish, a penetrating dye that covers all exposed surfaces and will not crack, flake or peel.
