Remanufactured Window Motor for 2006-2011 Chevrolet HHR - A1 CARDONE 42-1029

$88.99

Vehicles this part fits

    Part number: 42-1029
    UPC: 082617742849
    Weight: 1.50 LBS
    Item Package Quantity: 1
    $88.99
    Adding to cart… The item has been added

    Have questions?

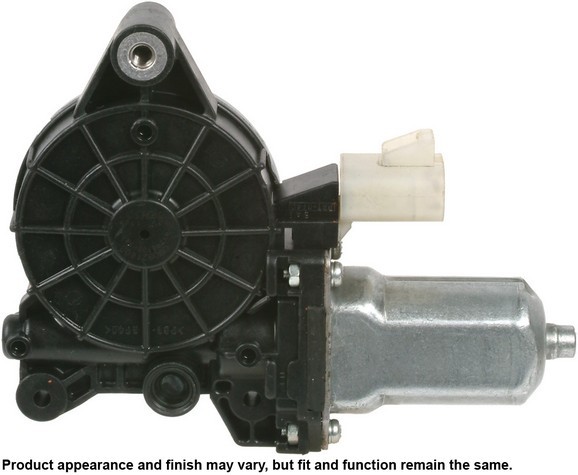

    CARDONE Reman Window Motor P/N:42-1029
    CARDONE Reman Window Motor P/N:42-1029
    $88.99
    $88.99

    A1 CARDONE 42-1029 window motor for the 2006-2011 Chevrolet HHR drives the regulator that raises and lowers the window glass. This remanufactured 2006-2011 Chevrolet HHR window motor started as an Original Equipment core and is renewed to match O.E. performance.

    • Tested 100% on a simulated window fixture to verify speed and strength
    • Bushings gauged and re-impregnated with lubricating oil, ball bearings replaced with new, armatures fully tested for insulation
    • Gears gauged and inspected, then renewed for reuse or replaced with redesigned gears in a stronger, less brittle material
    • Motor magnets 100% recharged
    • Assembled with a precise amount of lubricant for quiet operation

    Quick facts

    • Part: A1 CARDONE 42-1029 window motor
    • Fits: 2006-2011 Chevrolet HHR
    • Position: Front right, rear left
    • Condition: Remanufactured

    A window that moves slowly, stops partway or does not move at all can mean the motor is failing. Before replacing it, switch the ignition off and look at the plug-in connector for damage or corrosion, then see whether the glass binds in its track by hand. A worn regulator or a faulty switch can show the same behavior.

    Fits

    It is a direct-fit replacement for the front right and rear left windows of the 2006-2011 Chevrolet HHR. Each of those positions takes one motor, and this listing is a single motor.

    Specifications

    Fit and size

    • Position: Front right, rear left
    • Quantity per application: 1
    • Voltage: 12 V
    • Mounting holes: 3, threaded stud
    • Attachment method: Bolt on
    • Terminals: 2

    Build and materials

    • Condition: Remanufactured
    • Connection: Plug-in
    • Gear: Supplied
    • Country of origin: Mexico

    In the box

    One window motor and one instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included, so plan on new mounting hardware, since the old pieces may not be reusable.

    Installation notes

    • An instruction sheet comes with the motor for the steps.
    • On motors with an auto up/down feature, output signals and pulse counts are matched to the application, and the motor ships in the full up position.
    • The motor is compatible with the O.E. mounting and regulator.

    Interchange: 15211268

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    15211268

    Frequently Asked Questions

    Is this A1 CARDONE window motor right for the 2006-2011 Chevrolet HHR?

    Yes. A1 CARDONE 42-1029 is a direct-fit replacement for the 2006-2011 Chevrolet HHR, for the front right and rear left windows.

    Yes. A1 CARDONE 42-1029 is catalogued for the front right and rear left positions of the 2006-2011 Chevrolet HHR, with one motor per position.

    Does this window motor include the regulator or mounting hardware?

    No. The package has the window motor and an instruction sheet. The regulator, mounting hardware, wiring harness and bracket are not included.

    No. A1 CARDONE 42-1029 comes with one window motor and an instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included.

    Does the 42-1029 come with the regulator or mounting hardware?

    No. The package has the window motor and an instruction sheet. The regulator, mounting hardware, wiring harness and bracket are not included.

    No. A1 CARDONE 42-1029 comes with one window motor and an instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included.

    How many terminals does this window motor have, and is it plug-in?

    This window motor has 2 terminals and a plug-in connection, and it runs on 12 volts. Its mounting type is threaded stud, with 3 mounting holes.

    Yes, it runs on 12 V. It has a plug-in connection with 2 terminals and bolts on through 3 mounting holes with a threaded-stud mounting.

    Is this A1 CARDONE window motor 12 volt, and how does it connect?

    This window motor has 2 terminals and a plug-in connection, and it runs on 12 volts. Its mounting type is threaded stud, with 3 mounting holes.

    Yes, it runs on 12 V. It has a plug-in connection with 2 terminals and bolts on through 3 mounting holes with a threaded-stud mounting.

    My window crawls or stalls partway; could this window motor be the cause?

    It can be. Slow travel, stalling partway or no movement can be motor signs, and a shop can test the circuit to confirm.

    Ball bearings are replaced with new, bushings are re-impregnated with lubricating oil, and gears are renewed or replaced if out of spec. Each motor is also tested 100% on a simulated window fixture.

    Are the internal parts in this remanufactured window motor replaced or reused?

    It can be. Slow travel, stalling partway or no movement can be motor signs, and a shop can test the circuit to confirm.

    Ball bearings are replaced with new, bushings are re-impregnated with lubricating oil, and gears are renewed or replaced if out of spec. Each motor is also tested 100% on a simulated window fixture.

    Are the gears in the A1 CARDONE 42-1029 new?

    Internal gears are gauged and inspected, then renewed for reuse or replaced if out of spec. Replacement gears use a stronger, less brittle material.

    Yes. 15211268 is listed as an interchange number for A1 CARDONE 42-1029, so you can match it against an old part carrying that number.

    Does 15211268 interchange with the A1 CARDONE 42-1029?

    Internal gears are gauged and inspected, then renewed for reuse or replaced if out of spec. Replacement gears use a stronger, less brittle material.

    Yes. 15211268 is listed as an interchange number for A1 CARDONE 42-1029, so you can match it against an old part carrying that number.

    Frequently Asked Questions

    Does the A1 CARDONE 42-1029 fit the front right and rear left windows of the 2006-2011 Chevrolet HHR?

    Yes. A1 CARDONE 42-1029 is a direct-fit replacement for the 2006-2011 Chevrolet HHR, for the front right and rear left windows.

    Yes. A1 CARDONE 42-1029 is catalogued for the front right and rear left positions of the 2006-2011 Chevrolet HHR, with one motor per position.

    Does this window motor include the regulator or mounting hardware?

    No. The package has the window motor and an instruction sheet. The regulator, mounting hardware, wiring harness and bracket are not included.

    No. A1 CARDONE 42-1029 comes with one window motor and an instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included.

    Does the 42-1029 come with the regulator or mounting hardware?

    No. The package has the window motor and an instruction sheet. The regulator, mounting hardware, wiring harness and bracket are not included.

    No. A1 CARDONE 42-1029 comes with one window motor and an instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included.

    How many terminals does this window motor have, and is it plug-in?

    This window motor has 2 terminals and a plug-in connection, and it runs on 12 volts. Its mounting type is threaded stud, with 3 mounting holes.

    Yes, it runs on 12 V. It has a plug-in connection with 2 terminals and bolts on through 3 mounting holes with a threaded-stud mounting.

    Is this A1 CARDONE window motor 12 volt, and how does it connect?

    This window motor has 2 terminals and a plug-in connection, and it runs on 12 volts. Its mounting type is threaded stud, with 3 mounting holes.

    Yes, it runs on 12 V. It has a plug-in connection with 2 terminals and bolts on through 3 mounting holes with a threaded-stud mounting.

    My window crawls or stalls partway; could this window motor be the cause?

    It can be. Slow travel, stalling partway or no movement can be motor signs, and a shop can test the circuit to confirm.

    Ball bearings are replaced with new, bushings are re-impregnated with lubricating oil, and gears are renewed or replaced if out of spec. Each motor is also tested 100% on a simulated window fixture.

    Are the internal parts in this remanufactured window motor replaced or reused?

    It can be. Slow travel, stalling partway or no movement can be motor signs, and a shop can test the circuit to confirm.

    Ball bearings are replaced with new, bushings are re-impregnated with lubricating oil, and gears are renewed or replaced if out of spec. Each motor is also tested 100% on a simulated window fixture.

    Are the gears in the A1 CARDONE 42-1029 new?

    Internal gears are gauged and inspected, then renewed for reuse or replaced if out of spec. Replacement gears use a stronger, less brittle material.

    Yes. 15211268 is listed as an interchange number for A1 CARDONE 42-1029, so you can match it against an old part carrying that number.

    Does 15211268 interchange with the A1 CARDONE 42-1029?

    Internal gears are gauged and inspected, then renewed for reuse or replaced if out of spec. Replacement gears use a stronger, less brittle material.

    Yes. 15211268 is listed as an interchange number for A1 CARDONE 42-1029, so you can match it against an old part carrying that number.
