Remanufactured Front Window Motor for 1994-1996 Chevrolet Impala & More - A1 CARDONE 42-126

$67.99

Vehicles this part fits

    Part number: 42-126
    UPC: 082617152297
    Weight: 2.40 LBS
    Item Package Quantity: 1
    $67.99
    Adding to cart… The item has been added

    Have questions?

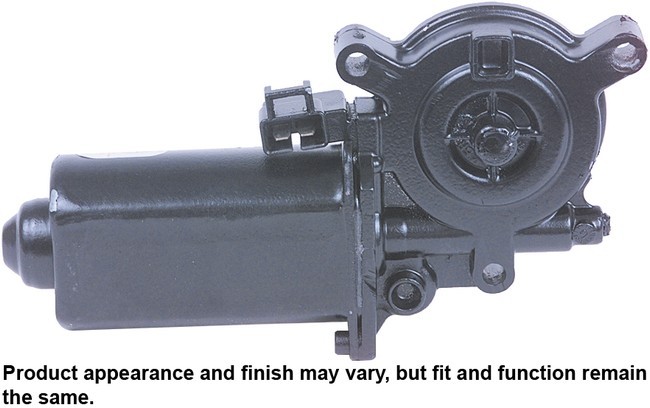

    CARDONE Reman Window Motor P/N:42-126
    CARDONE Reman Window Motor P/N:42-126
    $67.99
    $67.99

    A1 CARDONE 42-126 front window motor for the 1994-1996 Chevrolet Impala and other vehicles raises and lowers the door glass. This remanufactured motor is re-engineered, renewed and tested.

    • Tested 100% on a simulated window fixture for speed and strength
    • Bushings gauged and re-impregnated with lubricating oil, ball bearings replaced with new, armatures tested for insulation
    • Internal gears gauged and inspected, then renewed for reuse or replaced if out of spec
    • Replacement gears made from a stronger, less brittle material to resist wear and breakage
    • Motor magnets 100% recharged
    • Assembled with a measured amount of lubricant for quiet operation

    Quick facts

    • Part: A1 CARDONE 42-126 window motor
    • Fits: 1994-1996 Chevrolet Impala and other vehicles
    • Position: Front left and right
    • Condition: Remanufactured

    A window that moves slowly, stalls partway or hums without moving can mean a worn motor. A weak switch, a worn window regulator or a wiring fault can be behind the same signs, so find the cause before buying.

    Fits

    The 1994-1996 Chevrolet Impala, the 1988-1997 Oldsmobile Cutlass Supreme and the 1988-1996 Buick Regal all take this motor, along with other vehicles. Each front window takes one, and this listing is a single motor. Driving something else? Look up your car in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: front left and right
    • Quantity per application: 1
    • Voltage: 12 V
    • Terminals: 2
    • Mounting holes: 3, through hole
    • Attachment: bolt on
    • Connection: plug-in

    Build and materials

    • Condition: remanufactured
    • Gear: supplied
    • Anti-pinch motor: no
    • Country of origin: Mexico

    In the box

    One window motor and one instruction sheet. The regulator, mounting hardware, wiring harness and bracket are not included, and the old fasteners may not be reusable, so plan on new ones.

    Installation notes

    • An instruction sheet comes with the motor.
    • On motors with an auto up/down feature, output signals and pulse counts are matched to the vehicle, and the motor is set in the full up position.
    • The motor is fully compatible with the original mounting and regulator.

    Interchange: 22138764 · 22087325 · 12362502

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    22138764, 22087325, 12362502

    Frequently Asked Questions

    Is this the right Chevy Impala window motor for a 1994-1996 car?

    Yes. A1 CARDONE 42-126 fits the 1994-1996 Chevrolet Impala at the front left and front right windows, one motor per window. Other cars are listed in the "Vehicles it fits" section.

    Does this A1 CARDONE window motor come with a regulator or bolts?

    No. The box holds the remanufactured motor and an instruction sheet. The regulator, mounting hardware, wiring harness and bracket are not included.

    What voltage and connector does this window motor use?

    A1 CARDONE 42-126 is a 12-volt plug-in motor with two terminals. It bolts on through three mounting holes.

    How is this remanufactured window motor tested?

    Each motor is tested 100% on a simulated window fixture to check speed and strength. Its magnets are recharged and its armatures are tested for insulation.

    Are the gears in this remanufactured window motor replaced?

    Internal gears are gauged and inspected, then renewed for reuse or replaced if out of spec. Replacement gears use a stronger, less brittle material, and the ball bearings are replaced with new.
