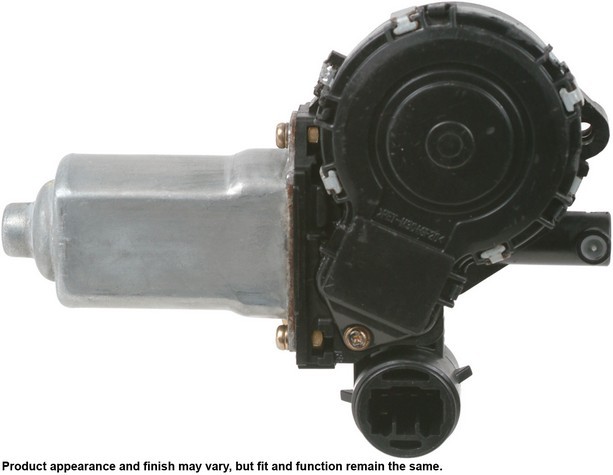

A1 CARDONE 47-10026 rear left window motor for the 2004-2006 Lexus ES330 and other vehicles is a remanufactured motor that lifts and lowers the window. It starts as an Original Equipment core, renewed and tested to match O.E. performance.
- Every motor is tested 100% on a simulated window fixture for speed and strength
- Output signals and pulse counts are matched to the application on motors with an auto up/down feature
- Bushings are re-impregnated with lubricating oil, ball bearings are replaced with new and armatures are tested for insulation
- Out-of-spec gears are replaced with a redesigned, less brittle material to resist wear and breakage
- Motor magnets are 100% recharged for efficiency and reliability
- Assembled with a precise amount of lubricant for quiet operation and long life
Quick facts
- Part: A1 CARDONE 47-10026 rear left window motor
- Fits: 2004-2006 Lexus ES330 and other vehicles
- Position: Rear left
- Condition: Remanufactured
A window that moves slowly, stops partway, grinds or does not move at all can mean the motor is worn. A bad switch, a damaged regulator or a wiring fault can be behind those signs too, so track down the cause before you buy a motor.
Fits
It is a direct-fit replacement for the 2004-2006 Lexus ES330 and for the 2002-2003 Lexus ES300, both in the rear left position.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Mounting holes: 3
- Terminals: 5
- Attachment: bolt on, internal threaded hole
- Connection: plug-in
Build and materials
- Condition: Remanufactured
- Operation: one-touch open and close
- Anti-pinch motor: yes
- Electronics: circuit board
- Country of origin: Mexico
In the box
One rear left window motor and one instruction sheet. The rear left position takes one, and the rear right side is its own part, ordered separately. The regulator, mounting hardware, bracket and wiring harness are not included, so plan on new bolts rather than counting on the old ones.
Installation notes
- An instruction sheet comes with the motor for the steps.
- Motors with an auto up/down feature ship in the full up position.
- The motor works with the original mounting and the regulator already on the car.
Interchange: 8571033150
Frequently Asked Questions
Is this the right window motor for the 2004-2006 Lexus ES330?
Yes. The A1 CARDONE 47-10026 is a rear left window motor for the 2004-2006 Lexus ES330. It goes in the rear left position only.
Does this rear left motor also work as a window motor for the 2002-2003 Lexus ES300?
Yes. The same rear left motor fits the 2002-2003 Lexus ES300, and the rear right side takes its own separate motor.
Does this window motor come with the regulator or bolts?
No. The box holds one window motor and an instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included.
How is this A1 CARDONE window motor tested?
Each A1 CARDONE 47-10026 motor is loaded on a simulated window fixture to verify speed and strength, and its armatures are tested for insulation.
Is this window motor plug-in, and how does it mount?
Yes, this rear left window motor is plug-in, with five terminals. It bolts on at three mounting holes with internal threads.
