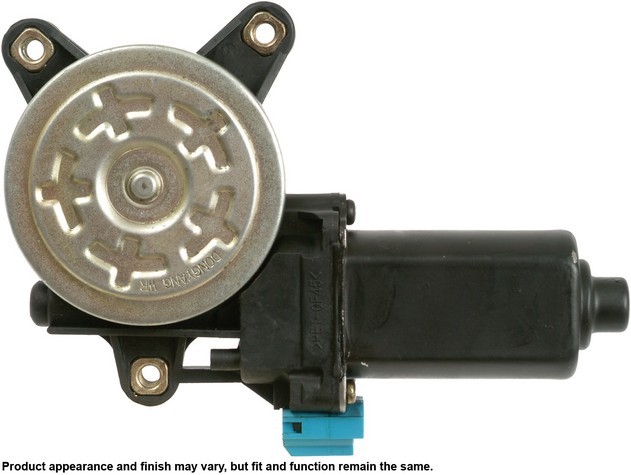

A1 CARDONE 47-10071 window motor for the 2008-2015 Chevrolet Captiva Sport and other vehicles raises and lowers the window glass. This remanufactured motor began as an Original Equipment core and is re-engineered, renewed and tested to match O.E. performance.
- Tested 100% on a simulated window fixture to verify motor speed and strength
- Bushings are gauged and re-impregnated with lubricating oil, ball bearings are replaced with new, and armatures are fully tested for insulation
- Internal gears are gauged and inspected, then renewed or replaced if out of spec
- Replacement gears are redesigned in a stronger, less brittle material to prevent premature wear and breakage
- Motor magnets are 100% recharged for efficiency and reliability
- Assembled with a precise amount of lubricant for quiet operation and long life
Quick facts
- Part: A1 CARDONE 47-10071 window motor
- Fits: 2008-2015 Chevrolet Captiva Sport and other vehicles
- Position: Front right, rear left and rear right
- Condition: Remanufactured
A window that crawls, stalls partway or will not move can mean the motor is worn, but the window regulator or the window switch can be behind it as well, so find the real cause before buying a motor.
Fits
This window motor is a direct-fit replacement for the 2008-2015 Chevrolet Captiva Sport, the 2004-2011 Chevrolet Aveo and the 2006-2011 Chevrolet AVEO5. A window takes one motor, this listing is a single motor, and it is compatible with the O.E. mounting and regulator. For any other car, look it up in the "Vehicles it fits" section on this page.
Specifications
Fit and size
- Position: front right, rear left and rear right
- Quantity per application: 1
- Voltage: 12 V
- Terminals: 2
- Mounting holes: 3, internal threaded hole
- Attachment: bolt on
- Connection: plug-in
Build and materials
- Condition: remanufactured
- Gear supplied: yes
- Country of origin: Mexico
In the box
One window motor and one instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included, so plan on new bolts because the old ones may not be reusable.
Installation notes
- An instruction sheet comes with the motor for the steps.
- On motors with an auto up/down feature, output signals and pulse counts are matched to the vehicle application, and the motor ships in the full up position.
Interchange: 23196457 · 25926015 · 96672883 · 25926007 · 8343085Z00 · 8343085Z01
This part cross-references / interchanges with the following part numbers:
23196457, 25926015, 96672883, 25926007, 8343085Z00, 8343085Z01
Frequently Asked Questions
Is this Chevy Aveo window motor right for a 2004-2011 Chevrolet Aveo?
Yes. A1 CARDONE 47-10071 fits the 2004-2011 Chevrolet Aveo and is compatible with the O.E. mounting and regulator. Other cars are in the "Vehicles it fits" section.
Does this remanufactured window motor come with the regulator or mounting hardware?
No. A1 CARDONE 47-10071 comes with one window motor and an instruction sheet; the regulator, mounting hardware, bracket and wiring harness are not included.
What voltage and connection does this window motor have?
This window motor runs on 12 V and connects by plug-in, with 2 terminals. It bolts on through 3 internal threaded mounting holes.
Can this window motor go in a rear window?
Yes. The listed positions are front right, rear left and rear right. This listing is one motor, and a window takes one.
How is this remanufactured window motor tested?
Every motor is tested 100% on a simulated window fixture to verify speed and strength. Its bushings, bearings, armature and gears are inspected, gauged and renewed or replaced as needed.
