Remanufactured Right Window Motor for 2004-2012 Mitsubishi Galant & More - A1 CARDONE 47-1984

$115.99

Vehicles this part fits

    Part number: 47-1984
    UPC: 082617839860
    Weight: 1.50 LBS
    Item Package Quantity: 1
    $115.99
    Adding to cart… The item has been added

    Have questions?

    CARDONE Reman Window Motor P/N:47-1984
    CARDONE Reman Window Motor P/N:47-1984
    $115.99
    $115.99

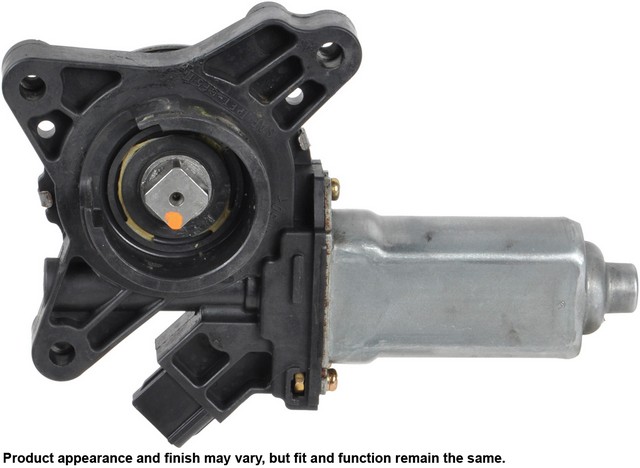

    A1 CARDONE 47-1984 right window motor for the 2004-2012 Mitsubishi Galant and other vehicles raises and lowers the window glass. This remanufactured motor is a plug-in unit.

    • Remanufactured from cores that are re-engineered, renewed and tested
    • Each motor is tested 100% on a simulated window fixture to verify speed and strength
    • Bushings are gauged and re-impregnated with lubricating oil, ball bearings are replaced with new and armatures are tested for insulation
    • Gears are gauged and inspected, then renewed for reuse or replaced if out of spec, with redesigned, less brittle replacements
    • Magnets are 100% recharged and each motor is assembled with a precise amount of lubricant for quiet operation

    Quick facts

    • Part: A1 CARDONE 47-1984 window motor
    • Fits: 2004-2012 Mitsubishi Galant and other vehicles
    • Position: Front right, rear right
    • Condition: Remanufactured

    A window that moves slowly, stops partway or does not move can mean a worn motor. A failing regulator, switch, fuse or damaged wiring can be behind these signs too, so find the cause before buying a motor. This listing is one right-side motor; the 2004-2012 Mitsubishi Galant takes one here, and the left side is a separate part.

    Fits

    It is a direct-fit replacement for the 2004-2012 Mitsubishi Galant and the 2004-2008 and 2010-2011 Mitsubishi Endeavor. Each unit began as an Original Equipment core, and it works with the original mounting and regulator.

    Specifications

    Fit and size

    • Position: front right, rear right
    • Quantity per application: 1
    • Voltage: 12 V
    • Terminal quantity: 2
    • Number of mounting holes: 3
    • Mounting type: internal threaded hole, bolt on

    Build and materials

    • Condition: remanufactured
    • Connection: plug-in
    • Gear: supplied with the motor
    • Country of origin: Mexico

    In the box

    One window motor and one instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included, so plan on new fasteners, since the old ones may not be reusable.

    Installation notes

    • Motors with an auto up/down feature have output signals and pulse counts matched to the vehicle and are shipped in the full up position.
    • The instruction sheet in the box covers the steps.

    Interchange: MR565452 · MR565454 · MR599948 · MR599950

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    MR565452, MR565454, MR599948, MR599950

    Frequently Asked Questions

    Will this right window motor fit a 2004-2012 Mitsubishi Galant?

    Yes. The A1 CARDONE 47-1984 is a right-side window motor for the 2004-2012 Mitsubishi Galant, and the Galant takes one for this position.

    Is this a Mitsubishi Endeavor window motor for the 2010-2011 model years?

    Yes. The A1 CARDONE 47-1984 fits the 2010-2011 Mitsubishi Endeavor as well as the 2004-2008 Endeavor, as a right-side window motor.

    Does this A1 CARDONE window motor come with the regulator or wiring harness?

    No. The box holds one window motor and an instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included.

    Are A1 CARDONE window motors tested after remanufacturing?

    Yes. Each motor is tested 100% on a simulated window fixture to verify speed and strength, and its bushings, bearings and armature are checked or renewed.

    Is the 47-1984 window motor plug-in or hardwired?

    It is plug-in. This 12-volt motor has 2 terminals and 3 mounting holes for its bolt-on mounting.
