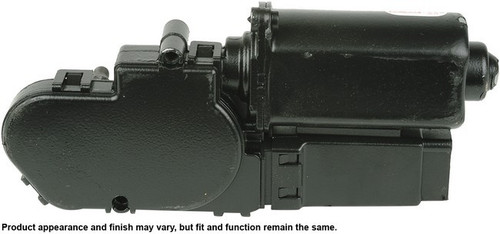

A1 CARDONE 40-1047 front windshield wiper motor for the 2003-2007 Chevrolet Express 1500 and other vehicles drives the wiper arms across the glass. This remanufactured unit is re-engineered, built and tested to match O.E. performance.
- Motor bearings are re-impregnated or replaced as needed
- Output gear is lubricated for load capacity and long life
- Weak solder points are 100% reflowed to extend life expectancy
- Motor magnets are 100% recharged for performance and reliability
Quick facts
- Part: A1 CARDONE 40-1047 windshield wiper motor
- Fits: the 2003-2007 Chevrolet Express 1500 and other vehicles
- Position: Front
- Material: Cast Aluminum
- Condition: Remanufactured
Wipers that run slowly, stop partway across the glass or stay still can point to a worn motor, but a bad arm, linkage or switch gives similar symptoms. Before you replace the motor, rule out a defective washer pump, a poor ground at the wiring harness and the switch circuit; a shop can bench test the motor and pump.
Fits
This front windshield wiper motor also fits the 2003-2007 Chevrolet Express 2500 and the 2003-2007 Chevrolet Express 3500, with one motor needed per vehicle. To check your exact model and engine, open the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 1
- Mounting type: Direct bolt, 3 mounting holes
- Terminals: 6 male blade pin
- Connector gender: Female
- Wiper speeds: 2
Build and materials
- Material: Cast aluminum
- Electronics: Circuit board
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One wiper motor and one instruction sheet. The wiring harness and washer pump are not included.
Interchange: 88958135
Frequently Asked Questions
Does the A1 CARDONE 40-1047 wiper motor fit the 2003-2007 Chevrolet Express 2500?
Yes, the A1 CARDONE 40-1047 fits the 2003-2007 Chevrolet Express 2500. Other models are in the "Vehicles it fits" section.
Does this wiper motor come with the wiring harness and washer pump?
No. The package holds one wiper motor and an instruction sheet. The wiring harness and washer pump are not included.
How many speeds and terminals does the 40-1047 wiper motor have?
The A1 CARDONE 40-1047 is a 2-speed motor with six male blade-pin terminals. It mounts with a direct bolt through three mounting holes.
My wipers keep stopping in the middle of the windshield. Is the motor the cause?
The motor's parking switch can be one source, but the wiper arm or linkage can cause the same stop. A shop can test the motor to tell them apart.
How is this remanufactured wiper motor tested?
The armature, field, bearing and parking switch or pulse board are each tested or gauged against the O.E. standard. The finished motor is then tested for each of its functions on the vehicle.
