Rear Windshield Wiper Motor for 1993-1998 Jeep Grand Cherokee & More - A1 CARDONE 40-446

$140.99
CARDONE Reman Windshield Wiper Motor 40-446
CARDONE Reman Windshield Wiper Motor 40-446

Vehicles this part fits
    Part number: 40-446
    UPC: 082617455343
    Weight: 2.70 LBS
    Item Package Quantity: 1
    $140.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

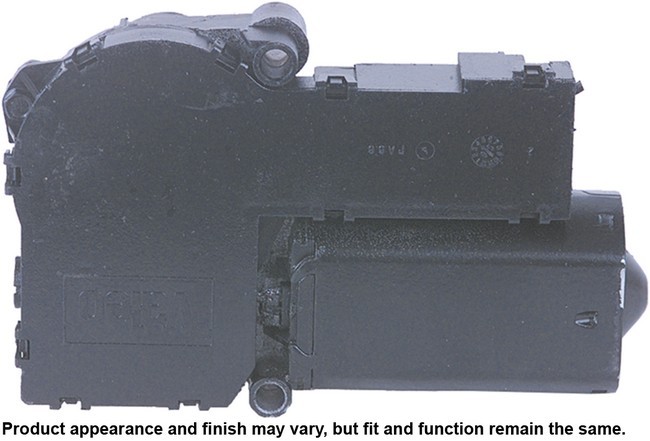

    CARDONE Reman Windshield Wiper Motor P/N:40-446
    CARDONE Reman Windshield Wiper Motor P/N:40-446
    $140.99
    $140.99

    A1 CARDONE 40-446 rear windshield wiper motor for the 1993-1998 Jeep Grand Cherokee and other vehicles turns the rear wiper arm across the glass. This remanufactured unit is re-engineered, built and tested to match O.E. performance.

    • Armature, field, bearing and parking switch or pulse board are each tested or gauged, then every function is tested on the vehicle
    • Every motor bearing is re-impregnated or replaced as needed
    • Lubricant on the output gear for load capacity and long life
    • Weak solder points are 100% reflowed to extend life expectancy
    • Motor magnets are 100% recharged for performance and reliability

    Quick facts

    • Part: A1 CARDONE 40-446 windshield wiper motor
    • Fits: the 1993-1998 Jeep Grand Cherokee and other vehicles
    • Position: Rear
    • Material: Cast Aluminum
    • Condition: Remanufactured

    A rear wiper that does not move, runs unevenly or stops working can mean the motor is worn. These signs alone do not prove the motor is at fault; a poor ground connection can also keep a wiper motor from running properly.

    Fits

    This motor fits the 1993-1998 Jeep Grand Cherokee and the 1993 Jeep Grand Wagoneer, and each takes one.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 1
    • Mounting: eyelet type, 2 mounting holes
    • Terminals: 6 male blade
    • Connector: female
    • Wiper speeds: 1

    Build and materials

    • Condition: Remanufactured
    • Material: Cast Aluminum
    • Electronic components: circuit board
    • Country of origin: Mexico

    In the box

    One wiper motor and one instruction sheet. The wiring harness and washer pump are not included.

    Installation notes

    • An instruction sheet comes with the motor.
    • Bench test the wiper motor and washer pump before replacing either, since some motors will not run if the washer pump is defective.

    Interchange: 55154787 · 55155040 · 55155040AB · 56005194

    This part cross-references / interchanges with the following part numbers:

    55154787, 55155040, 55155040AB, 56005194

    Frequently Asked Questions

    Will this rear windshield wiper motor work on the 1993-1998 Jeep Grand Cherokee?

    Yes. The A1 CARDONE 40-446 fits the 1993-1998 Jeep Grand Cherokee, and it also fits the 1993 Jeep Grand Wagoneer.

    Does the A1 CARDONE 40-446 come with a wiring harness?

    No. The package holds the wiper motor and an instruction sheet. The wiring harness and the washer pump are not included.

    How many terminals does this rear wiper motor have?

    Six male blade terminals, and the connector is female. The motor is a one-speed unit and mounts through two eyelet-type mounting holes.

    Is this A1 CARDONE windshield wiper motor remanufactured?

    Yes. Weak solder points are reflowed, the magnets are recharged and the finished motor is tested for each of its functions on the vehicle.

    Does 55155040AB interchange with this wiper motor?

    Yes. 55155040AB is one of the numbers the A1 CARDONE 40-446 replaces, along with 55154787, 55155040 and 56005194.
