Rear Brake Drum for 2009-2010 Chevrolet Cobalt & More - Centric Parts 122.62038

$43.99

Vehicles this part fits

    Part number: 122.62038
    UPC: 805890520856
    Condition: New
    Weight: 12.00 LBS
    Item Package Quantity: 1
    $43.99
    Adding to cart… The item has been added

    Have questions?

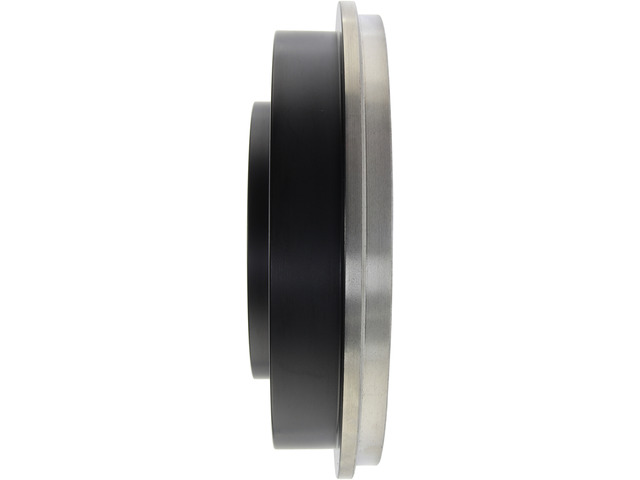

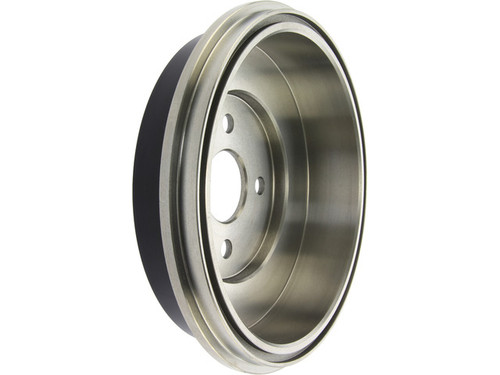

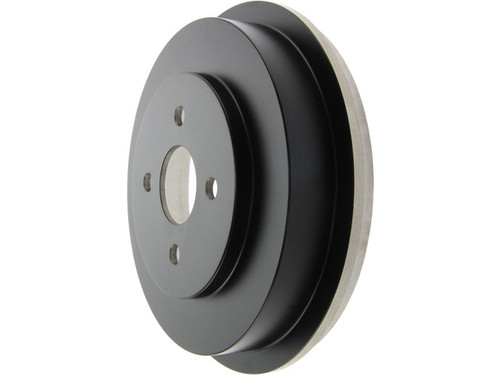

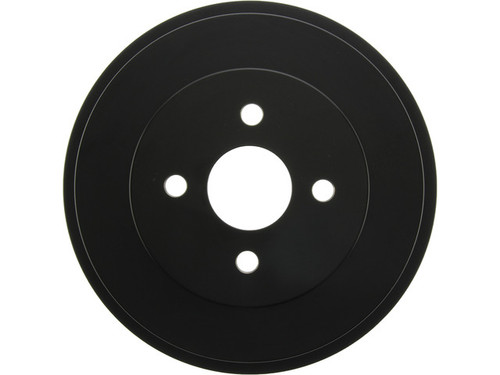

    Centric Parts Brake Drum P/N:122.62038
    Centric Parts Brake Drum P/N:122.62038
    $43.99
    $43.99

    Centric Parts 122.62038 rear brake drum for the 2009-2010 Chevrolet Cobalt and other vehicles slows the rear wheel when the brake shoes press against its inner friction surface.

    • Part of the Centric Premium line of brake drums
    • Black painted exterior for corrosion resistance
    • 100% mill balanced for vibration-free performance
    • Precision machined friction surfaces for smooth operation and reduced noise
    • Machined finishes for a cleaner appearance through the wheels

    Quick facts

    • Part: Centric Parts 122.62038 brake drum
    • Fits: 2009-2010 Chevrolet Cobalt and other vehicles
    • Position: Rear
    • Condition: New

    A worn rear drum can show up as a grinding or scraping noise, a pulsing brake pedal or deep grooves in the friction surface. Worn shoes or a wheel cylinder problem can also make noise or pedal pulsing, so confirm the drum is the source before swapping it. During a brake service, measure the drum and compare it with the discard diameter in the specifications.

    Fits

    It is a brake drum for the 2009-2010 Pontiac G5 as well as the 2009-2010 Chevrolet Cobalt, with OE-matched fit, form and function. The rear axle of each takes one drum per side. This listing is one drum; the other side of that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: rear
    • Quantity per vehicle: 2, one per side of the rear axle
    • Outside diameter: 274.2 mm (10.795 in)
    • Nominal drum diameter: 228.3 mm (8.988 in)
    • Maximum drum diameter (discard): 230.6 mm (9.079 in)
    • Bolt circle: 100 mm (3.937 in), 4 bolt holes
    • Mounting hole diameter: 14.2 mm (0.559 in)
    • Hub hole / register: 57.2 mm (2.252 in)
    • Friction surface width: 51.2 mm (2.016 in)
    • Height: 71.374 mm (2.81 in)

    Build and materials

    • Mounting type: floating
    • Exterior: black painted
    • Balance: 100% mill balanced
    • Outer cooling fins: none
    • Condition: new
    • Country of origin: China

    Interchange: 123.62038
    80127 · PDR0837 · 21107 · YH275061 · 25836302 · 920138 · BD920138 · 860014 · 21107G · 9795R · BD180303

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    80127, 123.62038, PDR0837, 21107, YH275061, 25836302, 920138, BD920138, 860014, 21107G, 9795R, BD180303

    Frequently Asked Questions

    Is this the Chevy Cobalt brake drum for the 2009-2010 model years?

    Yes. Centric Parts 122.62038 is a rear brake drum for the 2009-2010 Chevrolet Cobalt. This listing is one drum, and the car takes one on each side of the rear axle.

    What are the nominal and discard diameters of this Centric Parts brake drum?

    Centric Parts 122.62038 has a nominal drum diameter of 228.3 mm (8.988 in). Its maximum diameter before discard is 230.6 mm (9.079 in).

    Does this rear brake drum have outer cooling fins or a protective finish?

    No, the outer surface has no cooling fins. The exterior is painted black for corrosion resistance, and the drum is 100% mill balanced.

    When does this 228.3 mm rear brake drum need replacing?

    When a measurement during a brake service shows the drum past 230.6 mm (9.079 in), it has reached its discard limit. Deep grooves or cracks in the friction surface can also mean it needs replacing.

    What bolt circle and hub hole does this rear brake drum have?

    This floating-mount drum has 4 bolt holes on a 100 mm (3.937 in) bolt circle and a 57.2 mm (2.252 in) hub hole. The mounting holes are 14.2 mm (0.559 in) across.
