Rear Brake Drum for 2006-2017 Toyota Hiace - Centric Parts 123.99010

$60.99

Vehicles this part fits

    Part number: 123.9901
    UPC: 889590001464
    Condition: New
    Weight: 18.40 LBS
    Item Package Quantity: 1
    $60.99
    Adding to cart… The item has been added

    Have questions?

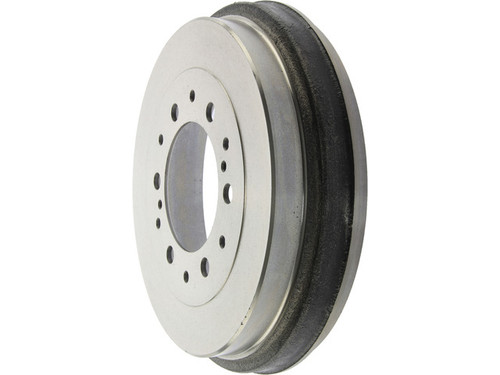

    Centric Parts Brake Drum P/N:123.99010
    Centric Parts Brake Drum P/N:123.99010
    $60.99
    $60.99

    Centric Parts 123.99010 rear brake drum for the 2006-2017 Toyota Hiace is the drum the brake shoes press against to slow the wheel.

    • C-Tek Standard Brake Drum line with non-directional finishes
    • Machined non-friction surfaces
    • 100% mill balanced for vibration-free performance
    • Meets SAE Standard for Tensile Strength
    • Designed for maximum service life and structural integrity

    Quick facts

    • Part: Centric Parts 123.99010 brake drum
    • Fits: 2006-2017 Toyota Hiace
    • Position: Rear
    • Condition: New

    Grooves or scoring on the drum surface, cracks, pulling under braking or vibration through the pedal can mean the drum is worn. Worn brake shoes, a leaking wheel cylinder or a sticking adjuster can be behind the same signs, so find the cause before buying. This listing is one drum, and both rear sides are normally replaced together.

    Fits

    The drum is OE-matched in fit, form and function for the 2006-2017 Toyota Hiace. The 2006-2017 Toyota Hiace takes two.

    Specifications

    Fit and size

    • Position: rear
    • Quantity per vehicle: 2
    • Nominal drum diameter: 254 mm (10.00 in)
    • Maximum diameter (discard): 256 mm (10.079 in)
    • Outside diameter: 308.1 mm (12.13 in)
    • Bolt circle: 139.7 mm (5.5 in), 6 bolt holes
    • Mounting hole diameter: 14.5 mm (0.571 in)
    • Hub hole (register): 106 mm (4.173 in)
    • Friction surface width: 61 mm (2.402 in)
    • Height: 71.6 mm (2.819 in)

    Build and materials

    • Mounting type: floating
    • Outer cooling fins: none
    • Finish: non-directional, with machined non-friction surfaces
    • Balance: 100% mill balanced
    • Condition: new
    • Country of origin: China

    Interchange: 42431-26200
    FT27006 · 27010 · 424H20 · 1391 · 4243126190

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    123.99010, FT27006, 27010, 424H20, 1391, 4243126190, 42431-26200, 4243126200

    Frequently Asked Questions

    Does the Centric Parts 123.99010 brake drum fit the 2006-2017 Toyota Hiace?

    Yes. Centric Parts 123.99010 is a rear brake drum for the 2006-2017 Toyota Hiace, and that vehicle takes two.

    What is the discard diameter of this rear brake drum?

    The maximum diameter is 256 mm (10.079 in), against a nominal drum diameter of 254 mm (10.00 in). A drum measuring past 256 mm has reached its discard limit.

    What is the bolt circle on Centric Parts 123.99010?

    Centric Parts 123.99010 has a 139.7 mm (5.5 in) bolt circle with 6 bolt holes. The mounting holes are 14.5 mm across and the hub hole is 106 mm.

    Does this rear brake drum have outer cooling fins?

    No. This drum has no outer cooling fins. Its non-friction surfaces are machined and the finish is non-directional.

    Is 42431-26200 a cross-reference number for this brake drum?

    Yes. 42431-26200 is one of the numbers this drum replaces; the rest are on the Interchange line.
