Rear Brake Drum for 2011-2015 Volkswagen Clasico - Centric Parts 123.99028

$39.99

Vehicles this part fits

    Part number: 123.99028
    UPC: 889590001860
    Condition: New
    Weight: 13.85 LBS
    Item Package Quantity: 1
    $39.99
    Adding to cart… The item has been added

    Have questions?

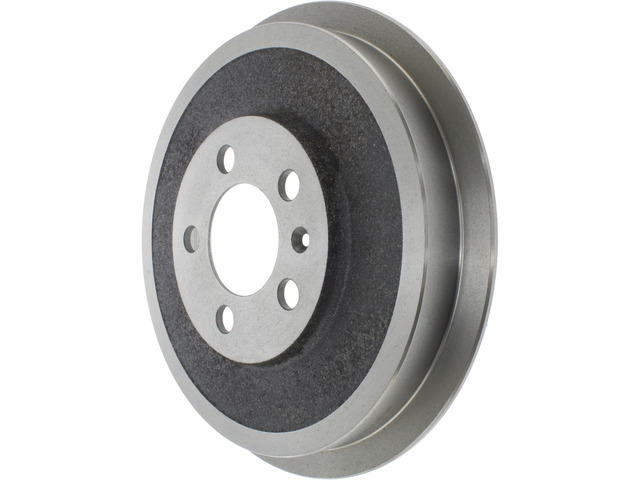

    Centric Parts Brake Drum P/N:123.99028
    Centric Parts Brake Drum P/N:123.99028
    $39.99
    $39.99

    Centric Parts 123.99028 rear brake drum for the 2011-2015 Volkswagen Clasico gives the rear brake shoes a friction surface to press against and slow the wheel.

    • C-Tek standard brake drum line
    • Non-directional finish
    • Machined non-friction surfaces
    • 100% mill balanced for vibration-free performance
    • Meets the SAE standard for tensile strength

    Quick facts

    • Part: Centric Parts 123.99028 brake drum
    • Fits: 2011-2015 Volkswagen Clasico
    • Position: Rear
    • Condition: New

    A grooved or scored friction surface, a pulsing or vibrating pedal, or a grinding noise when braking can mean a drum is worn. A noise or vibration alone does not prove the drum is at fault; worn or glazed brake shoes are another common source. Replace the drums on both rear wheels together, since this listing is one drum. The car takes one on each side of the rear axle.

    Fits

    It fits the 2011-2015 Volkswagen Clasico as a direct-fit replacement with OE-matched fit, form and function.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Nominal drum diameter: 230 mm (9.055 in)
    • Maximum diameter (discard): 231.5 mm (9.114 in)
    • Outside diameter: 290 mm (11.417 in)
    • Bolt circle: 100 mm (3.937 in), 5 bolt holes
    • Hub hole / register: 65 mm (2.559 in)
    • Mounting hole diameter: 15.8 mm (0.622 in)
    • Friction surface width: 39.8 mm (1.567 in)
    • Height: 57.5 mm (2.264 in)

    Build and materials

    • Mounting type: Floating
    • Outer cooling fins: No
    • Finish: Non-directional, with machined non-friction surfaces
    • Condition: New
    • Country of origin: China

    Interchange: 480111 · 0986477152 · 27028 · 1J0609617B · DB4262

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    480111, 123.99028, 0986477152, 27028, 1J0609617B, DB4262

    Frequently Asked Questions

    Is Centric Parts 123.99028 the right rear brake drum for the 2011-2015 Volkswagen Clasico?

    Yes. Centric Parts 123.99028 is a rear brake drum for the 2011-2015 Volkswagen Clasico, and the car takes two, one for each rear wheel.

    What is the nominal diameter of this Centric Parts brake drum?

    The nominal drum diameter is 230 mm (9.055 in), and the outside diameter is 290 mm (11.417 in).

    At what diameter does this rear brake drum need replacing?

    Its maximum (discard) diameter is 231.5 mm (9.114 in). A drum that measures at or beyond that during a brake service has reached its wear limit.

    What bolt circle and hub hole does the 123.99028 drum have?

    Centric Parts 123.99028 has a 100 mm (3.937 in) bolt circle with 5 bolt holes and a 65 mm (2.559 in) hub hole.

    Is this brake drum balanced for smooth braking?

    Yes. The drum is 100% mill balanced for vibration-free performance, and it meets the SAE standard for tensile strength.
