Timing Crankshaft Sprocket for 2016-2020 Ford F-150 & More - Cloyes S1135

$40.99
WARNING:California Proposition 65▾
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 8
Cloyes Engine Timing Crankshaft Sprocket S1135

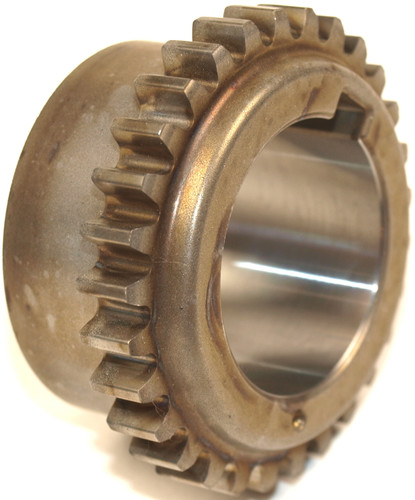

Cloyes Engine Timing Crankshaft Sprocket S1135 - view 2
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 3
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 4
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 5
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 6
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 7
video
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 8
Cloyes Engine Timing Crankshaft Sprocket S1135
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 2
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 3
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 4
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 5
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 6
Cloyes Engine Timing Crankshaft Sprocket S1135 - view 7
video

Vehicles this part fits
    Part number: S1135
    UPC: 750385836991
    Condition: New
    Weight: 0.53 LBS
    Item Package Quantity: 1
    $40.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Cloyes Engine Timing Crankshaft Sprocket P/N:S1135
    Cloyes Engine Timing Crankshaft Sprocket P/N:S1135
    $40.99
    $40.99

    Cloyes S1135 timing crankshaft sprocket for the 2016-2017 Ford F-150 V6 3.5L, the 2018-2020 F-150 V6 3.3L and other vehicles works with the timing chain to keep engine timing precise. It is heat-treated for OE-level fit and function and sits on the crankshaft alongside the chain, tensioners, guides and other sprockets.

    • Precision-tooled tooth form, bore, off-set and timing index
    • CAD designed for smooth installation and reliable performance
    • Tested for function, fitment and durability
    • Inverted tooth chain type with a single chain row

    Quick facts

    • Part: Cloyes S1135 timing crankshaft sprocket
    • Also called: engine timing crankshaft sprocket
    • Fits: the 2016-2017 Ford F-150 V6 3.5L, the 2018-2020 F-150 V6 3.3L and other vehicles
    • Condition: New

    A rattle from the timing cover area, a timing-related warning light or worn teeth seen during a timing service can point to a worn sprocket. Before you replace the sprocket, rule out a stretched chain, a weak tensioner or worn guides as the source of those signs. The chain, tensioners and guides are replaced along with the sprockets during service.

    Fits

    This sprocket also fits the 2017-2019 Ford Explorer V6 3.5L, the 2020 Explorer V6 3.3L and the 2016-2018 Ford Edge V6 3.5L, along with many other Ford and Lincoln models. The 2016-2017 Ford F-150 V6 3.5L takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Mounting hole diameter: 31.852 mm (1.254 in)
    • Mounting hole quantity: 1
    • Tooth width: 8.052 mm (0.317 in)
    • Width: 26.975 mm (1.062 in)
    • Timing marks: 1

    Build and materials

    • Chain type: inverted tooth
    • Chain rows: 1
    • Condition: New
    • Warranty: Cloyes Limited Lifetime Warranty

    Frequently Asked Questions

    Does the Cloyes S1135 fit the 2016-2017 Ford F-150 V6 3.5L?

    Yes, Cloyes S1135 fits the 2016-2017 Ford F-150 V6 3.5L and the 2018-2020 F-150 V6 3.3L. For another car, look up its year and engine in the "Vehicles it fits" section.

    Is the Cloyes S1135 the right sprocket for the 2017-2019 Ford Explorer V6 3.5L?

    Yes, Cloyes S1135 fits the 2017-2019 Ford Explorer V6 3.5L, the 2020 Explorer V6 3.3L and the 2016-2018 Ford Edge V6 3.5L.

    What is the bore size of the Cloyes S1135 crankshaft sprocket?

    The mounting hole diameter is 31.852 mm (1.254 in). The sprocket is made for an inverted tooth chain with a single chain row.

    Should the engine timing crankshaft sprocket be replaced along with the chain?

    Yes. Timing service calls for new tensioners, guides and a chain together with the sprockets, so the whole timing system is renewed at once.

    What warranty and testing come with the Cloyes S1135?

    Cloyes backs this sprocket with a Limited Lifetime Warranty. Each one is tested for function, fitment and durability.
