Front CV Axle Shaft for 2015-2019 Subaru Outback & More - TrakMotive SB-8120

$145.99

Vehicles this part fits

    Part number: SB-8120
    UPC: 844084045447
    Condition: New
    Weight: 14.80 LBS
    Item Package Quantity: 1
    $145.99
    Adding to cart… The item has been added

    Have questions?

    TrakMotive CV Axle Shaft P/N:SB-8120
    TrakMotive CV Axle Shaft P/N:SB-8120
    $145.99
    $145.99

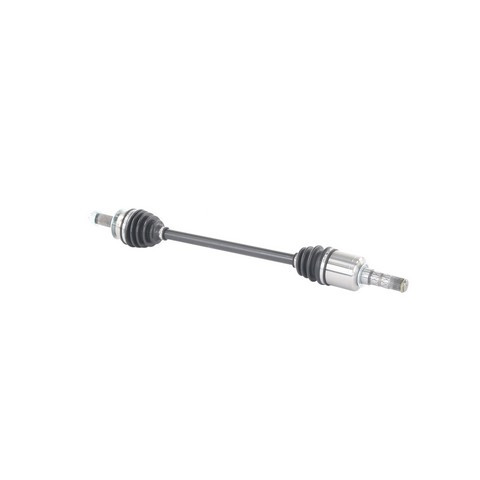

    TrakMotive SB-8120 front CV axle shaft for the 2015-2019 Subaru Outback and other vehicles carries drive torque to the front wheel. Its joints let the wheel steer and move with the suspension.

    • Neoprene boots on both the inboard and outboard joints
    • 25 splines at the inboard end and 27 at the outboard end
    • Overall compressed length of 825 mm (32.48 in)
    • Male inboard joint and conventional outboard joint, with splined shaft connections at both ends

    Quick facts

    • Part: TrakMotive SB-8120 CV axle shaft
    • Fits: 2015-2019 Subaru Outback and other vehicles
    • Position: Front
    • Condition: New

    A click on turns, vibration under acceleration or grease thrown from a split boot can mean a CV axle is wearing. Wheel bearings and tires can also make noise or vibration, so with the engine off, look the boots over for tears and flung grease before you decide on the shaft. This listing is one shaft; these vehicles take two, one on each side at the front, and both are normally replaced together.

    Fits

    It fits the 2015-2019 Subaru Outback and the 2015-2019 Subaru Legacy.

    Specifications

    Fit and size

    • Position: front
    • Quantity per vehicle: 2
    • Overall compressed length: 825 mm (32.48 in)
    • Inboard splines: 25
    • Outboard splines: 27
    • Axle nut: M22x1.5 thread, 32 mm (1.25 in) hex, stake locking

    Build and materials

    • Joints: male inboard, conventional outboard
    • Joint boots: neoprene
    • ABS tone ring: not included
    • Condition: new
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One CV axle shaft and one axle nut.

    Interchange: 66-7562 · 60-7562
    NCV66000 · PR66000 · 28321AL000 · 28321AL010 · SB10525ER

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    66-7562, 60-7562, NCV66000, PR66000, 28321AL000, 28321AL010, SB10525ER, SB-8120

    Frequently Asked Questions

    Does the TrakMotive SB-8120 fit the 2015-2019 Subaru Legacy?

    Yes. The TrakMotive SB-8120 front CV axle shaft fits the 2015-2019 Subaru Legacy as well as the 2015-2019 Subaru Outback.

    Does this TrakMotive CV axle come with the axle nut?

    Yes, TrakMotive SB-8120 includes one axle nut, M22x1.5 thread with a 32 mm hex and stake locking. The ABS tone ring is not included.

    How long is this TrakMotive CV axle shaft?

    Compressed, the shaft measures 825 mm (32.48 in) overall. It has 25 splines at the inboard end and 27 at the outboard end.

    Can a split boot mean a front CV axle needs replacing?

    A split boot that throws grease, or a click when turning, can mean the joint is wearing. A shop can inspect the axle and confirm.

    Does the TrakMotive SB-8120 replace number 28321AL000?

    Yes, 28321AL000 is one of the numbers the TrakMotive SB-8120 replaces, along with 28321AL010.
