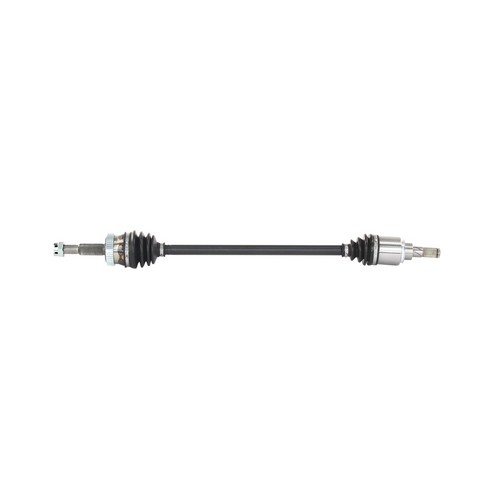

TrakMotive NI-8466 rear CV axle shaft for the 2015-2020 Nissan Rogue carries drive torque from the drivetrain to the rear wheel. This TrakMotive CV axle has a joint at each end, so the wheel can turn and move with the suspension.
- Toothed ABS tone ring comes with the shaft
- Neoprene boots on the inboard and outboard joints
- Male inboard joint and conventional outboard joint
- Axle nut with cotter pin locking, 30 mm hex and M22x1.5 thread
Quick facts
- Part: TrakMotive NI-8466 CV axle shaft
- Fits: 2015-2020 Nissan Rogue
- Position: Rear
A clicking noise on turns, a torn boot with grease thrown around it, or vibration under acceleration can mean a worn CV axle. A worn wheel bearing, a tire problem or a tired suspension bushing can be behind these signs too, so find the cause before buying a new shaft.
Fits
This axle fits the 2015-2020 Nissan Rogue, which takes two. This listing is one rear axle shaft, so order two to do both sides and fit them together.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Overall compressed length: 820 mm (32.28 in)
- Splines: 21 inboard, 25 outboard
Build and materials
- Grade: Premium
- ABS tone ring: included, toothed, 48 teeth
- Joint boot material: neoprene, inboard and outboard
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft with its axle nut.
Interchange: 66-6442
NCV53052 · 93061 · 396001HC0C · 396001HC1C · 396004BA0A · C96004BA0J
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
66-6442, NCV53052, 93061, 396001HC0C, 396001HC1C, 396004BA0A, C96004BA0J, NI-8466
Frequently Asked Questions
Is the TrakMotive NI-8466 the right rear CV axle for a 2015-2020 Nissan Rogue?
Yes. TrakMotive NI-8466 is a rear CV axle shaft for the 2015-2020 Nissan Rogue, with no engine restriction, and the vehicle takes two.
Does the TrakMotive CV axle shaft come with the axle nut?
Yes. TrakMotive NI-8466 includes its axle nut, which has a 30 mm hex, an M22x1.5 thread and cotter pin locking.
How many splines does this rear CV axle have at each end?
The male inboard joint has 21 splines and the conventional outboard joint has 25 splines. Overall compressed length is 820 mm (32.28 in).
Does this rear axle shaft include the ABS tone ring?
Yes. This rear axle shaft comes with a toothed ABS tone ring that has 48 teeth.
Does a torn neoprene boot mean the CV axle needs replacing?
A torn boot lets grease out and dirt in, which can wear the joint. Clicking on turns or vibration under acceleration are other signs, and a shop can inspect the axle.
