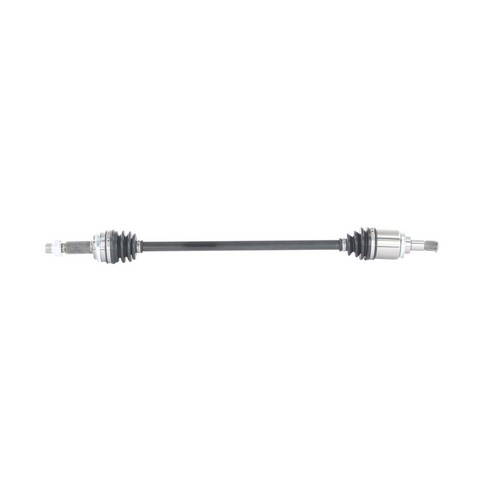

TrakMotive TO-8278 rear CV axle shaft for the 2006-2018 Toyota RAV4 and other vehicles carries drive torque to the rear wheel while letting the suspension move. It links the drive unit to the wheel hub through an inboard and an outboard joint.
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint and conventional outboard joint
- Inboard end with 20 splines and outboard end with 26 splines
- Stake-locking axle nut with an M22x1.5 thread
Quick facts
- Part: TrakMotive TO-8278 CV axle shaft
- Fits: 2006-2018 Toyota RAV4 and other vehicles
- Position: Rear
- Condition: New
A clicking noise when turning, vibration while driving or grease thrown from a torn boot can mean the CV axle shaft is worn, though a worn wheel bearing or a loose suspension bushing can cause similar signs, so find the cause before replacing it.
Fits
It fits the 2006-2018 Toyota RAV4, the 2018-2021 Lexus NX300 and the 2015-2017 Lexus NX200t, and each takes two. This listing is one rear CV axle shaft; the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: rear
- Quantity per vehicle: 2
- Overall compressed length: 810 mm (31.89 in)
- Inboard splines: 20
- Outboard splines: 26
- Axle nut hex size: 32 mm
Build and materials
- Boot material: neoprene, inboard and outboard
- Axle nut locking type: stake
- ABS tone ring: not included
- Condition: new
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft with its axle nut. The ABS tone ring is not included.
Interchange: 66-5382 · 60-5382
329278 · NCV69019 · NCV69019XD · 90453 · 423300R020 · 4233042060 · 434200R040 · 434200R041 · 434200R042 · 4342042190 · 4342042191
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
329278, 66-5382, 60-5382, NCV69019, NCV69019XD, 90453, 423300R020, 4233042060, 434200R040, 434200R041, 434200R042, 4342042190, 4342042191, TO-8278
Frequently Asked Questions
Does the TrakMotive TO-8278 fit the 2006-2018 Toyota RAV4?
Yes. The TrakMotive TO-8278 is a rear CV axle shaft listed for the 2006-2018 Toyota RAV4. The car takes two, and this listing is one shaft.
Is this rear CV axle shaft the right one for a 2018-2021 Lexus NX300?
Yes. The TrakMotive TO-8278 rear CV axle shaft is listed for the 2018-2021 Lexus NX300, which takes two. This listing is one shaft.
Does the TrakMotive CV axle come with a warranty?
Yes. TrakMotive backs this axle with a limited lifetime warranty.
What are the joint boots on the TrakMotive CV axle shaft made of?
Both the inboard and the outboard joint boots on the TrakMotive TO-8278 are neoprene.
What size is the axle nut, and is it included?
Yes, the axle nut is included. It has an M22x1.5 thread and a 32 mm hex and locks by staking. The ABS tone ring is not included.
