Front Right CV Axle Shaft for 2013 Toyota Highlander & More - TrakMotive TO-8371

$205.99

Vehicles this part fits

    Part number: TO-8371
    UPC: 844084026644
    Condition: New
    Weight: 25.20 LBS
    Sold as: 1 (front right side)
    $205.99
    Adding to cart… The item has been added

    Have questions?

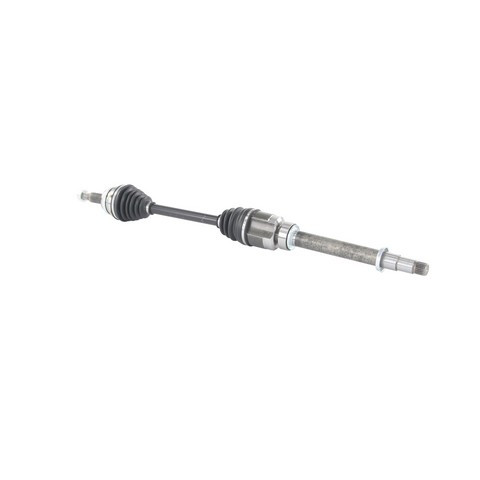

    TrakMotive CV Axle Shaft P/N:TO-8371
    TrakMotive CV Axle Shaft P/N:TO-8371
    $205.99
    $205.99

    TrakMotive TO-8371 front right CV axle shaft for the 2013 Toyota Highlander and other vehicles sends drive power to the wheel. Its two joints let the shaft keep turning the wheel as the suspension moves and the wheel steers.

    • Neoprene boots on both the inboard and outboard joints
    • Male inboard joint with 24 splines
    • Conventional outboard joint with 30 splines
    • Axle nut included, with a stake-type lock

    Quick facts

    • Part: TrakMotive TO-8371 CV axle shaft
    • Fits: 2013 Toyota Highlander and other vehicles
    • Position: Front right
    • Condition: New

    A clicking or popping noise on turns, vibration while driving, or grease thrown from a torn boot can mean the axle is worn. Torn boots and flung grease show up during a tire or brake service, but other parts can cause these signs too, so find the cause before replacing the axle.

    Fits

    This CV axle shaft fits the 2013 Toyota Highlander and the 2009-2016 Toyota Venza. This listing is one shaft for the front right side; the front left side is ordered separately.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity: 1 (front right side)
    • Overall compressed length: 39.06 in (992 mm)
    • Axle nut thread size: M22x1.5
    • Axle nut hex size: 30 mm (1.17 in)

    Build and materials

    • ABS tone ring: included, toothed, 48 teeth
    • Condition: New
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One CV axle shaft and one axle nut.

    Interchange: 60-5305 · TO-2710A
    NCV518618 · 90565 · 434100T010 · 434100T011

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    NCV518618, 60-5305, TO-2710A, 90565, 434100T010, 434100T011, TO-8371

    Frequently Asked Questions

    Is the TrakMotive TO-8371 the right axle for the 2013 Toyota Highlander?

    Yes. TrakMotive TO-8371 is a front right CV axle shaft for the 2013 Toyota Highlander and the 2009-2016 Toyota Venza.

    Does this TrakMotive CV axle come with the axle nut?

    Yes. The axle nut is included with TrakMotive TO-8371. It has an M22x1.5 thread, a 30 mm hex and a stake-type lock.

    What is the overall length of this TrakMotive CV axle shaft?

    The overall compressed length is 39.06 in (992 mm).

    Does this front right axle shaft include the ABS tone ring?

    Yes. The TrakMotive TO-8371 comes with a toothed ABS tone ring that has 48 teeth.

    Does TrakMotive TO-8371 replace part number 434100T010?

    Yes. 434100T010 is an interchange number for TrakMotive TO-8371, as are 434100T011 and 60-5305.
