Cylinder Head Bolt Set for 2003-2007 Chevrolet C4500 Kodiak & More - FEL-PRO ES 72188

$55.99

Vehicles this part fits

    Part number: ES72188
    UPC: 614046653573
    Condition: New
    Weight: 0.72 LBS
    Item Package Quantity: 1
    $55.99
    Adding to cart… The item has been added

    Have questions?

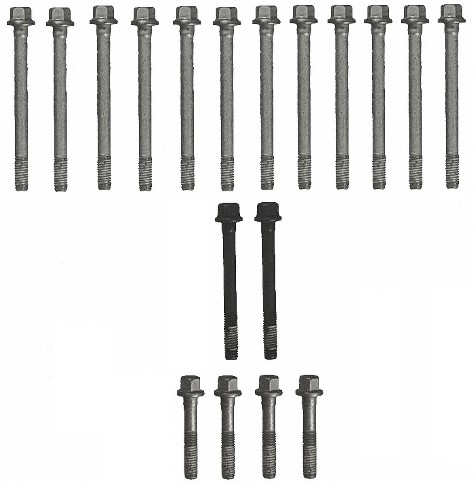

    FEL-PRO Engine Cylinder Head Bolt Set P/N:ES 72188
    FEL-PRO Engine Cylinder Head Bolt Set P/N:ES 72188
    $55.99
    $55.99

    FEL-PRO ES 72188 cylinder head bolt set for the 2003-2007 Chevrolet C4500 Kodiak V8 8.1L and other vehicles clamps the cylinder head to the engine block. Torque-to-yield (T-T-Y) head bolts should not be reused, and this set avoids that risk with new bolts.

    • Application-specific design, validated for form and function
    • Avoids the risk of reusing T-T-Y (torque to yield) head bolts
    • Three bolt types in the set, with critical lengths of 103 mm, 86 mm and 52 mm
    • 10 mm diameter and 1.50 thread pitch on all three bolt types
    • Hex drive with a 13 mm head size on every bolt

    Quick facts

    • Part: FEL-PRO ES 72188 cylinder head bolt set
    • Also called: engine cylinder head bolt set
    • Fits: 2003-2007 Chevrolet C4500 Kodiak V8 8.1L and other vehicles
    • Condition: New

    Coolant loss, milky oil or overheating can mean a leak at the cylinder head joint, though a failed head gasket or a warped cylinder head can be behind them rather than the bolts. The set meets or exceeds all original equipment specifications. This listing is one set; the 2003-2007 Chevrolet C4500 Kodiak V8 8.1L takes two.

    Fits

    This FEL-PRO cylinder head bolt set is also a direct-fit replacement for the 2003-2007 Chevrolet C5500 Kodiak V8 8.1L and the 2001-2007 Chevrolet C6500 Kodiak V8 8.1L. If your truck is not named here, look it up in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 2
    • Bolt and thread diameter: 10 mm
    • Bolt critical length: 103 mm (Bolt 1), 86 mm (Bolt 2), 52 mm (Bolt 3)
    • Bolt thread length: 25 mm (Bolt 1), 32 mm (Bolt 2), 27 mm (Bolt 3)
    • Bolt thread pitch: 1.50 (all three bolts)
    • Bolt head size: 13 mm

    Build and materials

    • Head drive type: Hex
    • Condition: New
    • Reusable: No
    • Country of origin: Taiwan

    In the box

    One cylinder head bolt set. Assembly lubricant is not included.

    Interchange: 27346 · GS33415 · 141008401

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    27346, GS33415, 141008401

    Frequently Asked Questions

    Is the FEL-PRO ES 72188 the right head bolt set for the 2003-2007 Chevrolet C4500 Kodiak V8 8.1L?

    Yes. FEL-PRO ES 72188 fits the 2003-2007 Chevrolet C4500 Kodiak V8 8.1L, and the "Vehicles it fits" section shows whether your truck is covered too.

    Can I reuse FEL-PRO head bolts?

    No. FEL-PRO ES 72188 is not reusable, and reusing torque-to-yield (T-T-Y) head bolts carries a risk, so this set replaces them with new bolts.

    What are the thread and length specs of each FEL-PRO cylinder head bolt in this set?

    Each of the three bolts in FEL-PRO ES 72188 is 10 mm in diameter with a 1.50 thread pitch and a 13 mm hex head. Critical lengths are 103 mm, 86 mm and 52 mm.

    What does the engine cylinder head bolt set include?

    FEL-PRO ES 72188 is one set of head bolts in three bolt types, with critical lengths of 103 mm, 86 mm and 52 mm. Assembly lubricant is not included.

    Does FEL-PRO ES 72188 cross-reference to 27346?

    Yes. 27346 is an interchange number for FEL-PRO ES 72188, along with GS33415 and 141008401.
