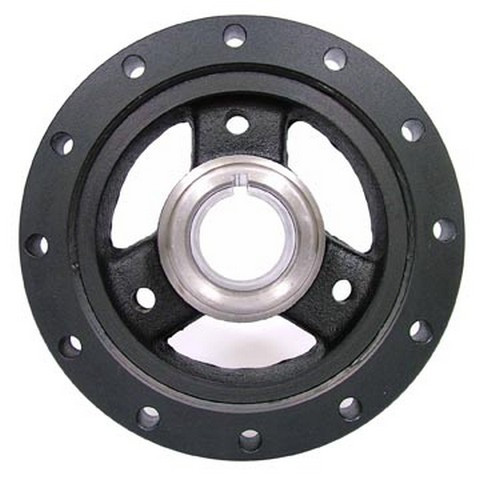

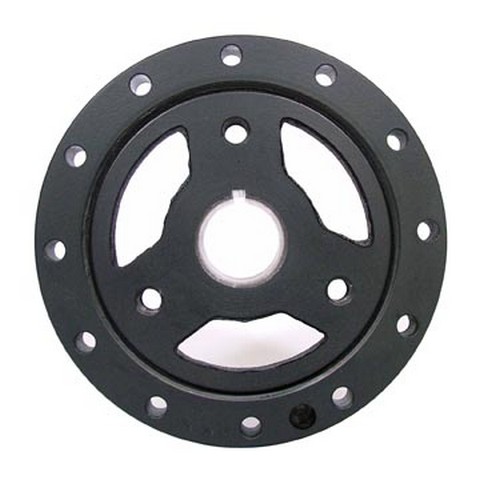

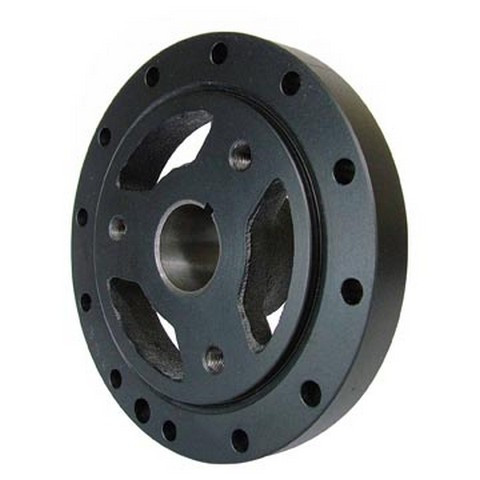

Dayco PB1012N harmonic balancer for the 1962-1967 Chevrolet Impala V8 5.3L, the 1964-1969 Impala V8 5.4L and other vehicles mounts on the crankshaft nose and damps crankshaft torsional vibration.
- Grey iron outer ring
- Timing marks on the balancer
- Neutral balance with no counterweight
- No integrated pulleys on the balancer
Quick facts
- Part: Dayco PB1012N harmonic balancer
- Also called: engine harmonic balancer
- Fits: the 1962-1967 Chevrolet Impala V8 5.3L, the 1964-1969 Impala V8 5.4L and other vehicles
- Material: grey iron outer ring
- Condition: New
A worn engine harmonic balancer can show up as cracks, an outer ring that has shifted on the hub, or vibration from the front of the engine. A worn drive belt, a failing accessory pulley or a loose engine mount can produce similar vibration, so find the cause before buying. Inspect only with the engine off and cool. If the balancer is the cause, this one replaces it.
Fits
The fitment also includes the 1967 Chevrolet Camaro V8 5.3L, the 1968-1969 Camaro V8 5.4L, the 1969-1973 Camaro V8 5.0L and the 1975-1976 Chevrolet Monza V8 4.3L, which takes one balancer. For any other vehicle, check its year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Overall outside diameter: 155.40 mm (6.119 in)
- Crank bore: 31.60 mm (1.245 in)
- Nose outside diameter: 44.78 mm (1.763 in)
- Overall width: 59.50 mm (2.343 in)
- Ring width: 19.18 mm (0.756 in)
- Bolt holes: 3
- Quantity per vehicle: 1
Build and materials
- Outer ring material: grey iron
- Counterweight balance: neutral, no counterweight
- Timing marks: yes
- Integrated pulleys: none
- Condition: New
In the box
One harmonic balancer. Mounting hardware, the Woodruff key and installation instructions are not included, so plan on new bolts rather than reusing the old ones.
Interchange: 594-156 · DA-3270
102044 · 102049 · 6005319
This part cross-references / interchanges with the following part numbers:
102044, 102049, 594-156, 6005319, DA-3270
Frequently Asked Questions
Is this Camaro harmonic balancer correct for the 1969-1973 Chevrolet Camaro V8 5.0L?
Yes, Dayco PB1012N fits the 1969-1973 Chevrolet Camaro V8 5.0L. For other engines or vehicles, look up your year, model and engine in the "Vehicles it fits" section.
Do I get the Woodruff key and mounting bolts with this harmonic balancer?
No. Dayco PB1012N comes as the balancer alone, without hardware, the Woodruff key or instructions. Plan on new bolts, since the old ones may not be reusable.
What are the crank bore and outside diameter of this balancer?
The crank bore is 31.60 mm (1.245 in) and the overall outside diameter is 155.40 mm (6.119 in). This balancer has three bolt holes and a 44.78 mm nose outside diameter.
How can I inspect a balancer with a grey iron outer ring for damage?
With the engine off and cool, look for cracks or an outer ring that appears shifted on the hub. Vibration from the front of the engine can also be a sign, and a shop can test it.
Is 6005319 an alternate number for this balancer?
Yes. Dayco PB1012N is listed as a match for 6005319, along with 594-156, DA-3270, 102044 and 102049.
