Harmonic Balancer for 2005-2010 Jeep Grand Cherokee & More - PowerBond by Dayco PB1375N

$219.99

Vehicles this part fits

    Part number: PB1375N
    EAN: 9317010001516
    Condition: New
    Weight: 7.60 LBS
    Item Package Quantity: 1
    $219.99
    Adding to cart… The item has been added

    Have questions?

    Dayco Engine Harmonic Balancer P/N:PB1375N
    Dayco Engine Harmonic Balancer P/N:PB1375N
    $219.99
    $219.99

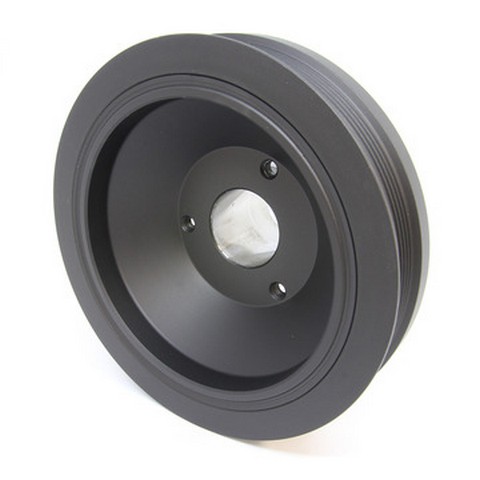

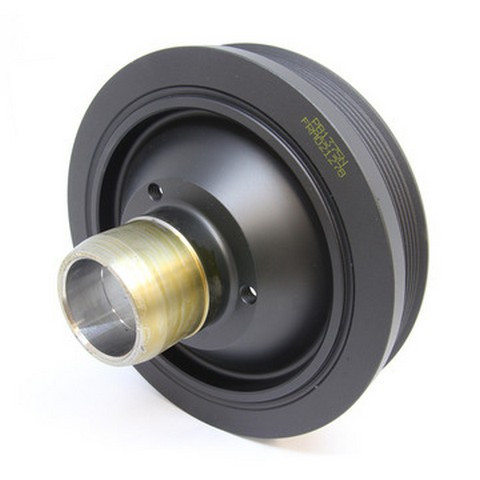

    PowerBond by Dayco PB1375N harmonic balancer for the 2005-2008 Jeep Grand Cherokee V8 5.7L, the 2006-2010 Grand Cherokee V8 6.1L and other vehicles damps crankshaft vibration and carries the serpentine belt.

    • Cast iron outer ring
    • One integrated serpentine pulley with 6 grooves and a 168.000 mm outside diameter
    • Neutral balance with no counterweight
    • Plain design without timing marks or a crank trigger/exciter plate

    Quick facts

    • Part: PowerBond by Dayco PB1375N harmonic balancer
    • Also called: engine harmonic balancer
    • Fits: the 2005-2008 Jeep Grand Cherokee V8 5.7L, the 2006-2010 Grand Cherokee V8 6.1L and other vehicles
    • Material: Cast iron outer ring
    • Condition: New

    A cracked outer ring, a ring that has shifted on the hub or a pulley that wobbles can mean an engine harmonic balancer is worn. Belt noise and vibration can also start elsewhere, so with the engine off and cool, look the pulley and ring over for those signs first and leave any test that needs the engine running to a shop.

    Fits

    This harmonic balancer is listed for a wide range of Jeep, Dodge and Chrysler models, including the 2006-2008 Dodge Charger V8 5.7L, the 2006-2010 Charger V8 6.1L, the 2005-2008 Chrysler 300 V8 5.7L and the 2005-2010 300 V8 6.1L. The listing is one harmonic balancer, and a vehicle takes one. If your vehicle is not named here, look up your year and engine in the "Vehicles it fits" section before you order.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Overall outside diameter: 174.50 mm (6.871 in)
    • Pulley outside diameter: 168.000 mm (6.615 in)
    • Crank bore: 37.45 mm (1.475 in)
    • Nose outside diameter: 50.20 mm (1.977 in)
    • Overall width: 94.00 mm (3.701 in)
    • Ring width: 37.59 mm (1.480 in)

    Build and materials

    • Outer ring material: cast iron
    • Integrated pulley: 1 serpentine pulley, 6 grooves
    • Counterweight balance: neutral, no counterweight
    • Timing marks: none
    • Crank trigger/exciter plate: none
    • Condition: New
    • Country of origin: Australia

    In the box

    One harmonic balancer. A Woodruff key, mounting hardware and installation instructions are not included, so plan on new fasteners rather than reusing the old ones.

    Interchange: 594-324 · 594-325 · DA-3470
    102279 · 102302 · 6003417

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    102279, 102302, 594-324, 594-325, 6003417, DA-3470

    Frequently Asked Questions

    Is this the right harmonic balancer for the 2006-2008 Dodge Charger V8 5.7L?

    Yes. The PowerBond by Dayco PB1375N is listed for the 2006-2008 Dodge Charger V8 5.7L and the 2006-2010 Charger V8 6.1L, one balancer per vehicle.

    Is this the harmonic balancer for the 2006-2010 Jeep Grand Cherokee V8 6.1L?

    Yes. PowerBond by Dayco PB1375N fits the 2006-2010 Jeep Grand Cherokee V8 6.1L and the 2005-2008 Grand Cherokee V8 5.7L, and the vehicle takes one.

    Does the PB1375N harmonic balancer come with a Woodruff key or bolts?

    No. This harmonic balancer is sold on its own; the Woodruff key, mounting hardware and installation instructions are not included.

    What size is the crank bore and serpentine pulley on this harmonic balancer?

    The crank bore is 37.45 mm (1.475 in). The one integrated serpentine pulley has 6 grooves and a 168.000 mm (6.615 in) outside diameter.

    Is 594-324 the same part as the PB1375N harmonic balancer?

    Yes. 594-324 is listed as an interchange number for the PowerBond by Dayco PB1375N harmonic balancer, which has a cast iron outer ring.
