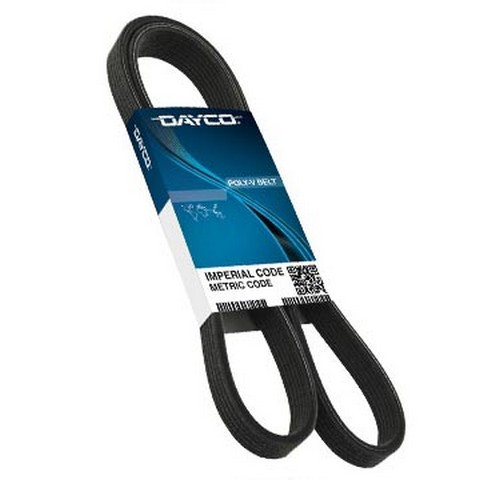

Serpentine Belt for 1995-2006 Nissan Sentra & More - Dayco 5060325

$25.99

Vehicles this part fits

    Part number: 5060325
    UPC: 038244150359
    Condition: New
    Weight: 0.32 LBS
    Item Package Quantity: 1
    $25.99
    Adding to cart… The item has been added

    Have questions?

    Dayco Serpentine Belt P/N:5060325
    Dayco Serpentine Belt P/N:5060325
    $25.99
    $25.99

    Dayco 5060325 serpentine belt for the 1995-2006 Nissan Sentra and other vehicles drives the alternator, air conditioning and fan from a single belt.

    • EPDM belt body, aramid reinforced
    • K-Section cross section with a straight rib profile
    • Operating temperature range of -45 F to 212 F (-42.7 C to 100 C)
    • Standards: SAE J1459 and SAE J2432

    Quick facts

    • Part: Dayco 5060325 serpentine belt
    • Fits: the 1995-2006 Nissan Sentra and other vehicles
    • Position: alternator, air conditioning and fan
    • Material: EPDM, aramid reinforced

    A worn serpentine belt can show cracks, fraying, glazed ribs or a squeal while driving. These signs alone do not prove the belt is the problem; a worn tensioner or pulley is another common cause.

    Fits

    This serpentine belt is a direct-fit replacement for the 1995-2006 Nissan Sentra, the 1987-1993 Ford Mustang 4-cylinder 2.3L and the 1995-1998 Nissan 200SX 4-cylinder 1.6L, and each of them takes one.

    Specifications

    Fit and size

    • Position: alternator, air conditioning and fan
    • Quantity per vehicle: 1
    • Ribs: 6
    • Width: 0.82 in
    • Effective length: 825.50 mm (32.50 in)
    • Outside length: 842.27 mm (33.16 in)

    Build and materials

    • Material: EPDM, aramid reinforced
    • Cross section: K-Section
    • Rib profile: straight rib
    • Rib depth: standard

    Interchange: 146-060820 · L51-325K6 · JK6-332 · 25-060325
    6K325 · 6PK820 · 6PK825 · 6PK830 · K060325 · 4060325 · PK060325 · 325K6

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    6K325, 6PK820, 6PK825, 6PK830, 146-060820, K060325, 4060325, PK060325, 325K6, L51-325K6, JK6-332, 25-060325, D1102-7104, E2PZ-8620-B, E9PZ-8620-B, 11720-0M200, 11720-4Z810, 77.00.738.782, 99366-00820, 99366-00820-77, 99366-20820, 99366-20820-83, 99366-50820, 99366-50820-77, 99366-50820-83, 99366-70820, 99366-70820-77, 99366-70820-83, 99366-80820

    Frequently Asked Questions

    Is Dayco 5060325 the Nissan Sentra serpentine belt for a 1995-2006 model?

    Yes. Dayco 5060325 is listed for the 1995-2006 Nissan Sentra, and each car takes one belt. If your car is a different make or model, look it up in the "Vehicles it fits" section.

    Is this a Nissan Sentra alternator belt replacement for a 1995-2006 car?

    Yes. On the 1995-2006 Nissan Sentra this belt drives the alternator, air conditioning and fan.

    Is this Dayco drive belt made of EPDM?

    Yes. Dayco 5060325 is made of EPDM with aramid reinforcement. It has a K-Section cross section and a straight rib profile.

    What wear can I see on a serpentine belt with the engine off?

    With the engine off and cool, look for cracks, fraying and glazed or missing rib material on this serpentine belt. A squeal while driving can also be a sign of wear.

    Which standards and temperatures does this serpentine belt cover?

    Dayco 5060325 lists SAE J1459 and SAE J2432 as its standards. Its operating range is -45 F to 212 F (-42.7 C to 100 C).
