Serpentine Belt for 2020-2023 Ford Explorer & More - Dayco 5060630

$29.99

Vehicles this part fits

    Part number: 5060630
    UPC: 036687189042
    Condition: New
    Weight: 0.43 LBS
    Item Package Quantity: 1
    $29.99
    Adding to cart… The item has been added

    Have questions?

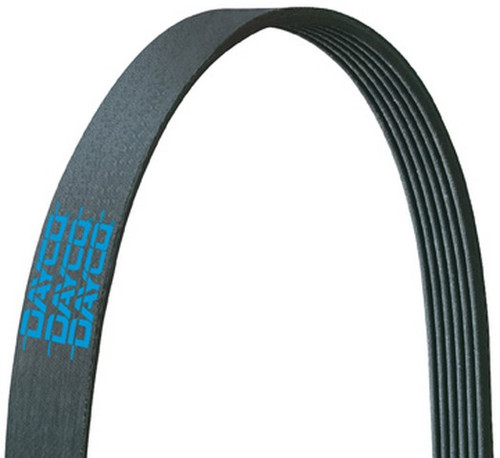

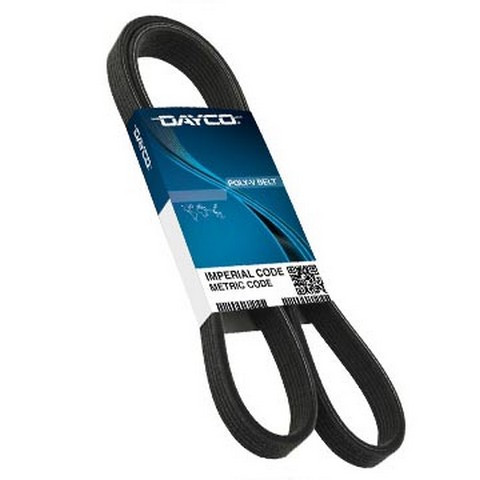

    Dayco Serpentine Belt P/N:5060630
    Dayco Serpentine Belt P/N:5060630
    $29.99
    $29.99

    Dayco 5060630 serpentine belt for the 2020-2023 Ford Explorer V6 3.3L and other vehicles carries engine power to the belt-driven accessories. Depending on the vehicle, it is the alternator, air conditioning, alternator and power steering, air conditioning and idler, or main drive belt.

    • EPDM construction, aramid reinforced
    • Six straight ribs in a K-section profile with standard rib depth
    • Operating temperature range from -42.7 °C to 100 °C (-45 °F to 212 °F)
    • Standards: SAE J1459 and SAE J2432

    Quick facts

    • Part: Dayco 5060630 serpentine belt
    • Fits: 2020-2023 Ford Explorer V6 3.3L and other vehicles
    • Position: Alternator, air conditioning, alternator and power steering, air conditioning and idler, main drive
    • Material: EPDM, aramid reinforced
    • Condition: New

    Cracked or glazed ribs, or a squeal from the front of the engine, can mean a belt is worn. A weak tensioner, a misaligned or seized pulley, or oil on the belt can produce similar noise and wear, so find the cause before you buy a new belt.

    Fits

    As a Ford Explorer serpentine belt it fits the 2020-2023 V6 3.3L. The same belt also fits the 2021-2026 Hyundai Elantra 4-cylinder 2.0L and the 2013-2014 Ford Fusion 4-cylinder 1.6L, and each vehicle takes one.

    Specifications

    Fit and size

    • Position: Alternator, air conditioning, alternator and power steering, air conditioning and idler, main drive
    • Quantity per vehicle: 1
    • Number of ribs: 6
    • Width: 0.82 in
    • Effective length: 63.00 in (1600.20 mm)
    • Outside length: 63.66 in (1616.97 mm)

    Build and materials

    • Material: EPDM, aramid reinforced
    • Rib profile: Straight rib
    • Cross section: K-section
    • Rib depth: Standard
    • Standards: SAE J1459, SAE J2432
    • Operating temperature: -42.7 °C to 100 °C (-45 °F to 212 °F)
    • Condition: New

    Interchange: JK6-635 · 25-060628 · 25-060628HD · 25-060630 · 25-060631 · 25-060631HD
    6K630 · 6K631 · K060631HD · 6PK1595 · 6PK1600 · 6PK1605 · K060630 · 4060630 · PK060630 · 630K6 · K060628 · K060628HD · K060631

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    6K630, 6K631, K060631HD, 6PK1595, 6PK1600, 6PK1605, K060630, 4060630, PK060630, 630K6, K060628, K060628HD, K060631, JK6635, JK6-635, 25-060628, 25-060628HD, 25-060630, 25-060631, 25-060631HD

    Frequently Asked Questions

    Is this the Ford Explorer drive belt for 2020-2023 models with the V6 3.3L?

    Yes, Dayco 5060630 fits the 2020-2023 Ford Explorer V6 3.3L, and the vehicle takes one belt. For a different car, find your year and engine in the "Vehicles it fits" section on this page.

    Is this a Ford Fusion serpentine belt for the 2013-2014 4-cylinder 1.6L?

    Yes, Dayco 5060630 fits the 2013-2014 Ford Fusion 4-cylinder 1.6L, and each vehicle takes one belt.

    What is this Dayco drive belt made of?

    This serpentine belt is EPDM and aramid reinforced. It has six straight ribs in a K-section profile with standard rib depth.

    How long and wide is Dayco 5060630?

    Dayco 5060630 is 0.82 in wide with 6 ribs. Its effective length is 63.00 in (1600.20 mm) and its outside length is 63.66 in (1616.97 mm).

    How do I spot a worn 6-rib serpentine belt?

    With the engine off and cool, look for cracks or glazed, shiny ribs. A squeal or chirp while driving can also point to wear, and a shop can test belt tension and pulley alignment.
