Serpentine Belt for 2012-2018 Volkswagen Passat & More - Dayco 5060635

$34.99

Vehicles this part fits

    Part number: 5060635
    UPC: 036687416544
    Condition: New
    Weight: 0.40 LBS
    Item Package Quantity: 1
    $34.99
    Adding to cart… The item has been added

    Have questions?

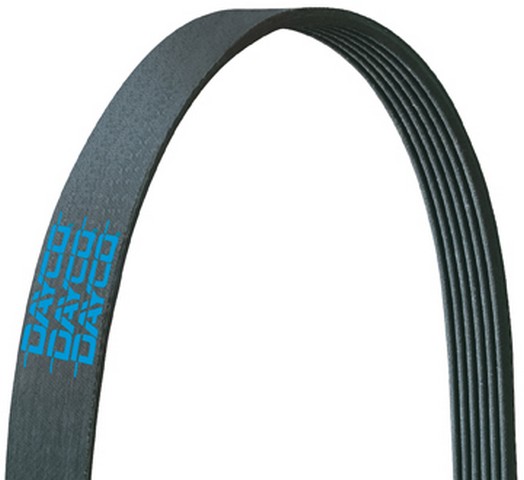

    Dayco Serpentine Belt P/N:5060635
    Dayco Serpentine Belt P/N:5060635
    $34.99
    $34.99

    Dayco 5060635 serpentine belt for the 2012-2018 Volkswagen Passat V6 3.6L and other vehicles drives belt-driven engine accessories such as the alternator and air conditioning compressor.

    • EPDM belt body reinforced with aramid
    • Six-rib K-section belt with a straight rib profile and standard rib depth
    • Operating range from -45°F to 212°F (-42.7°C to 100°C)
    • Made to SAE J1459 and SAE J2432 standards

    Quick facts

    • Part: Dayco 5060635 serpentine belt
    • Fits: 2012-2018 Volkswagen Passat V6 3.6L and other vehicles
    • Position: alternator and air conditioning, alternator, air conditioning, water pump and air conditioning, fan to air conditioning, air conditioning and idler, main drive, alternator and compressor
    • Material: EPDM, aramid reinforced
    • Condition: New

    Squealing at start-up, cracked or frayed ribs, or a belt that slips under load can mean it is worn. Before you replace this Dayco serpentine belt, rule out a weak tensioner, a seized idler or a failing accessory pulley, because those can wear out a new belt too.

    Fits

    The vehicles it fits include the 2012-2018 Volkswagen Passat V6 3.6L, the 2010-2017 Kenworth T800 6-cylinder 14.9L and the 2015-2023 Peterbilt 389 6-cylinder 14.9L. If your vehicle is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: main drive, alternator, air conditioning, water pump, fan, idler and compressor, by application
    • Quantity per vehicle: 1
    • Ribs: 6
    • Belt length: 63.50 in (1612.90 mm) and 64.16 in (1629.67 mm)

    Build and materials

    • Material: EPDM, aramid reinforced
    • Cross section: K-section
    • Rib profile: straight rib
    • Rib depth: standard
    • Standards: SAE J1459, SAE J2432
    • Operating temperature: -45°F to 212°F (-42.7°C to 100°C)
    • Condition: New

    In the box

    One serpentine belt. Each vehicle takes one.

    Interchange: 25-060635 · 25-060635HD · 25-060637 · 25-060637HD
    6K635 · 6K637 · K060635HD · 6PK1610 · 6PK1615 · 6PK1620 · K060635 · K060637 · K060637HD · 4060635 · 635K6

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    6K635, 6K637, K060635HD, 6PK1610, 6PK1615, 6PK1620, K060635, K060637, K060637HD, 4060635, 635K6, 25-060635, 25-060635HD, 25-060637, 25-060637HD, 022.145.933AG, 3679634, F73E-8620-BA, 01-26709-018, 01-29729-610, 02-26709-018, 3621194C1, 3621194C2, 87366407, 022-145-933AG, 022.145.933AP, 022-145-933AP, 9146248

    Frequently Asked Questions

    Is this serpentine belt right for a 2012-2018 VW Passat V6 3.6L?

    Yes. Dayco 5060635 is listed for the 2012-2018 Volkswagen Passat V6 3.6L, and the car takes one belt.

    Can I use it as the alternator belt for a 2007-2010 VW Passat V6 3.6L?

    Yes. The 2007-2010 Volkswagen Passat V6 3.6L is on the fitment list, and alternator is one of the drive positions the catalog gives for this belt.

    Is this Dayco fan belt made of EPDM, and what temperatures can it take?

    Yes. It is EPDM with aramid reinforcement and has an operating range from -45°F to 212°F (-42.7°C to 100°C).

    Is K060635 an interchange number for this Dayco drive belt?

    Yes. K060635 is on the Interchange line for Dayco 5060635, along with the other numbers printed at the bottom of the page.

    How do I check a Dayco 5060635 serpentine belt for wear?

    With the engine off and cool, look along the ribs for cracks, fraying, glazing or missing chunks. A shop can test belt tension and pulley condition.
