Serpentine Belt for 2009-2014 International Workstar 7600 & More - Dayco 5080775

$54.99

Vehicles this part fits

    Part number: 5080775
    UPC: 038244603275
    Condition: New
    Weight: 0.70 LBS
    Item Package Quantity: 1
    $54.99
    Adding to cart… The item has been added

    Have questions?

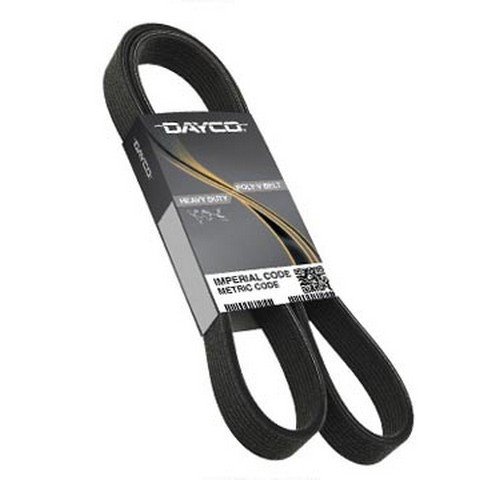

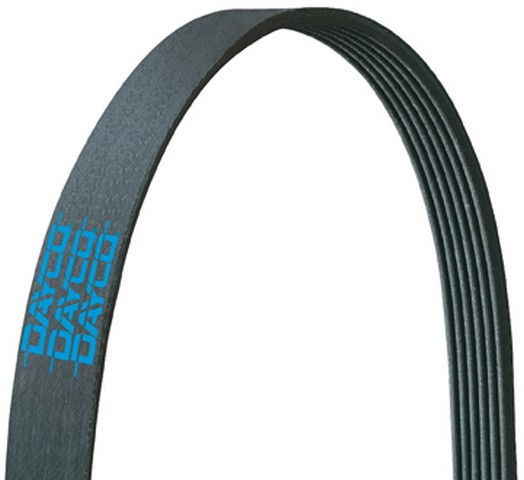

    Dayco Serpentine Belt P/N:5080775
    Dayco Serpentine Belt P/N:5080775
    $54.99
    $54.99

    Dayco 5080775 serpentine belt for the 2009-2010 International Workstar 7600 6-cylinder 10.5L, the 2010 Workstar 7600 6-cylinder 12.4L, the 2010-2011 Workstar 7600 12.5L, the 2012-2014 Workstar 7600 6-cylinder 12.4L, the 2014 Workstar 7600 6-cylinder 10.5L and other vehicles turns the engine's belt-driven accessories from the crankshaft. Drive positions for this belt include the alternator, air conditioning, fan, idler and water pump.

    • EPDM construction with aramid reinforcement
    • K-section straight-rib profile with standard rib depth
    • Operating temperature from -45°F to 212°F (-42.7°C to 100°C)
    • Standards listed: SAE J1459 and SAE J2432

    Quick facts

    • Part: Dayco 5080775 serpentine belt
    • Fits: the 2009-2010 International Workstar 7600 6-cylinder 10.5L, the 2010 Workstar 7600 6-cylinder 12.4L, the 2010-2011 Workstar 7600 12.5L, the 2012-2014 Workstar 7600 6-cylinder 12.4L, the 2014 Workstar 7600 6-cylinder 10.5L and other vehicles
    • Position: alternator; air conditioning; fan and alternator; fan; fan to alternator; accessory drive; fan, alternator and water pump; fan, alternator and idler; main drive
    • Material: EPDM, aramid reinforced

    A squeal or chirp, cracked or frayed ribs, or shiny glazed ribs can mean the belt is worn. Before you replace it, rule out a seized pulley, a weak tensioner or oil or coolant reaching the ribs, since any of those can also make a belt noisy. Inspect the ribs with the engine off and cool.

    Fits

    This serpentine belt also fits the 2012-2013 International 7600 and the 2017 International HX515, and the quantity on every application is one belt.

    Specifications

    Fit and size

    • Position: alternator; air conditioning; fan and alternator; fan; fan to alternator; accessory drive; fan, alternator and water pump; fan, alternator and idler; main drive
    • Quantity per vehicle: 1
    • Length: 77.56 in (1970.03 mm) and 78.19 in (1986.03 mm)

    Build and materials

    • Material: EPDM, aramid reinforced
    • Cross section: K-section
    • Rib profile: straight rib
    • Rib depth: standard
    • Standards: SAE J1459, SAE J2432
    • Operating temperature: -45°F to 212°F (-42.7°C to 100°C)

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this Dayco drive belt right for the 2017 International HX515?

    Yes. Dayco 5080775 is listed for the 2017 International HX515, one belt per truck. For a different truck, look up your year, make and engine in the "Vehicles it fits" section.

    What is the Dayco 5080775 belt made of?

    Dayco 5080775 is made of EPDM with aramid reinforcement. It has a K-section, straight-rib profile with standard rib depth.

    What temperature range does this Dayco fan belt operate in?

    This belt's listed operating range is -45°F to 212°F (-42.7°C to 100°C).

    What does a worn K-section serpentine belt look like?

    With the engine off and cool, look for cracks, fraying or glazed, shiny ribs. A squeal or chirp while driving can also point to wear.

    Can this serpentine belt drive the water pump along with the alternator?

    Yes. Dayco 5080775 is listed for fan, alternator and water pump positions, along with air conditioning, idler and main drive positions.
